Therm Coil Drawing No.: 366R-4039-003 Therm Coil Model No.: TC-4882
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
- Replacement For Part Numbers:
Athens: P-141-14, P14114
Kenmore: 5915, 6591
Whirlpool: CH4882, 457932
Other: AP4650647, AP3087003, AP3956026, 115700
- 3000 W @ 208 V Rating.

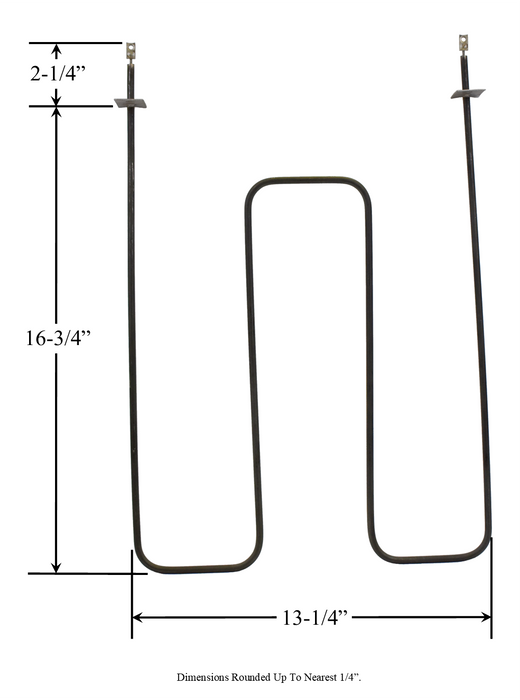

- Approx. Overall Size: 13-1/4" Width x 16-3/4" Length From Back Of Element To Mounting Brackets x 2-1/8" Insert From Bracket To Terminal Ends

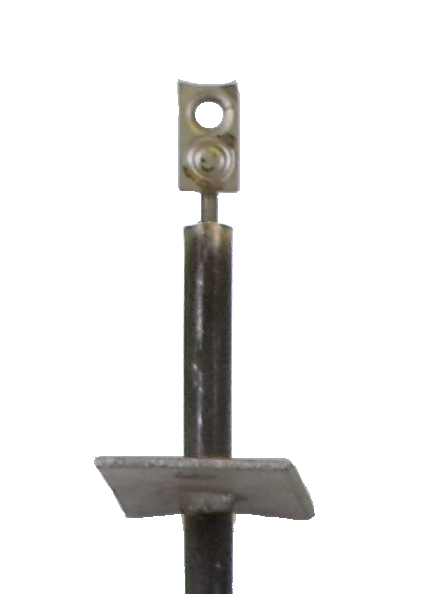

- Threaded Screw-In Terminals
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, General Electric, Hotpoint, RCA, and other Ranges And/Or Ovens: Use part numbers and dimensions to determine if this element will fit your appliance.
