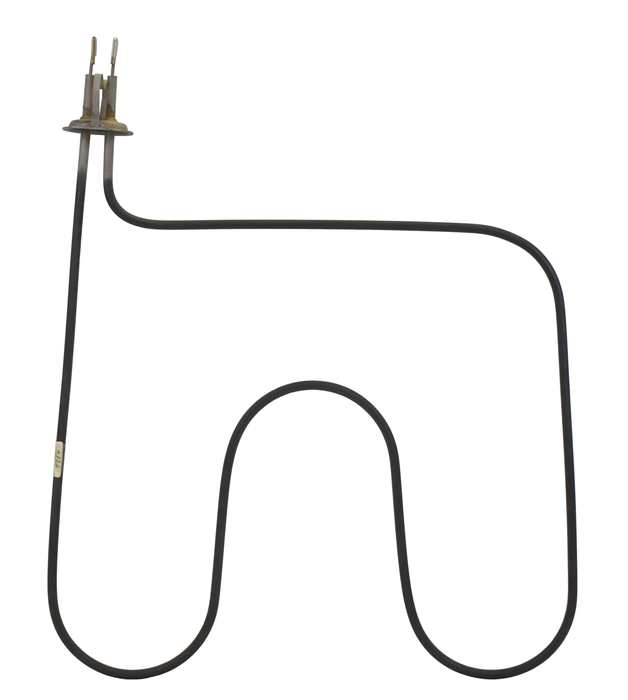

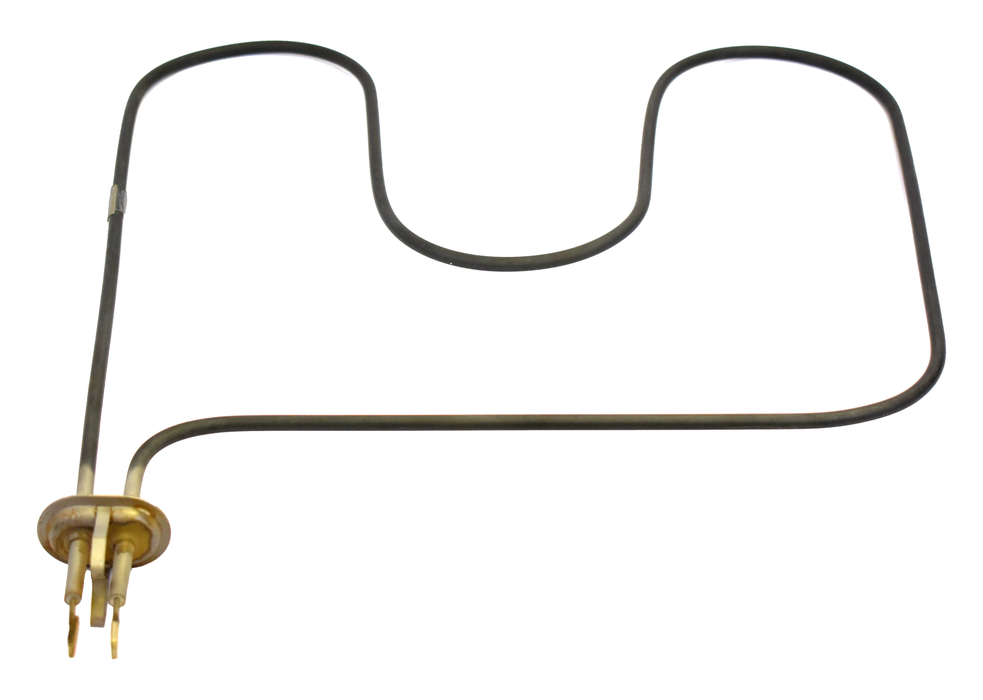

Model TC-4886: Kenmore: 6823 / Whirlpool CH4886 Equivalent Range/Oven Broil Replacement Element, 3,000W @ 208V

Sale price $ 29.75 Regular price $ 35.00

Therm Coil Drawing No.: 366R-4043-003      Therm Coil Model No.: TC-4886

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Athens: E-141-025

Kenmore: 6823

Whirlpool: CH4886, 457967

Other: AP4651951, AP3087007

  • 3000 W @ 208 V Rating.

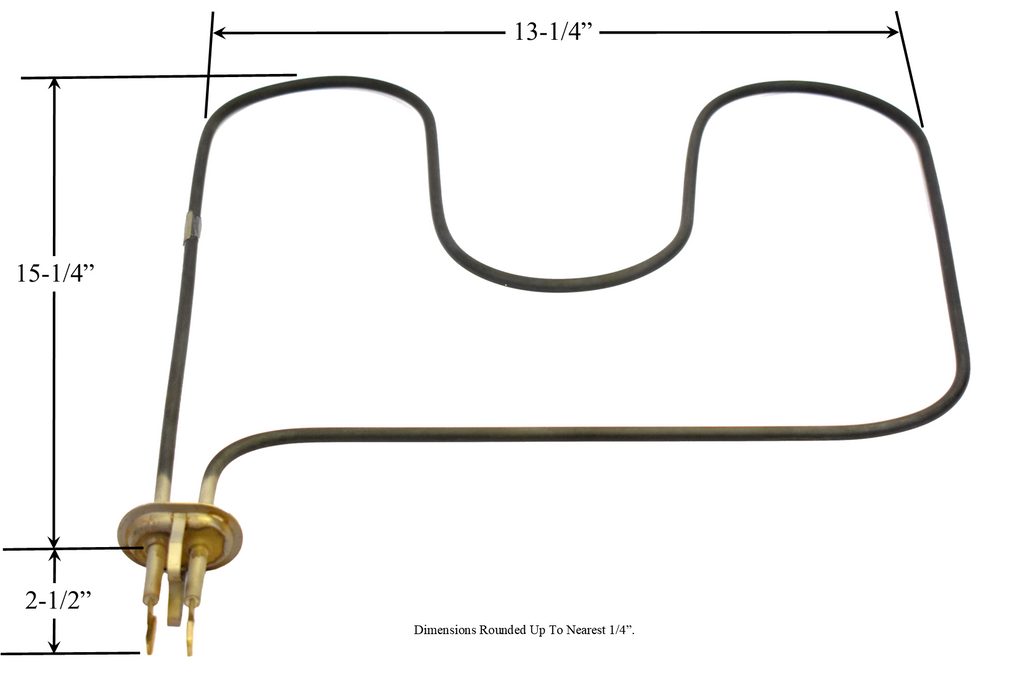

  • Approx. Overall Size: 13-1/4" Width x 15-1/8" Length From Back Of Element To Mounting Brackets x 2-1/2" Insert From Bracket To Terminal Ends x 19/32" Center-to-Center Terminal Width.
  • Used in various models of  Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, General Electric, Hotpoint, RCA, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
