Therm Coil Drawing No.: 366R-4044-003 Therm Coil Model No.: TC-4887
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
- Replacement For Part Numbers:
Athens: E-141-026
Kenmore: 7141
Whirlpool: CH4887, 457975
Other: AP3770848, AP3087008, AP4851167
- 2400 W @ 208 V Rating.

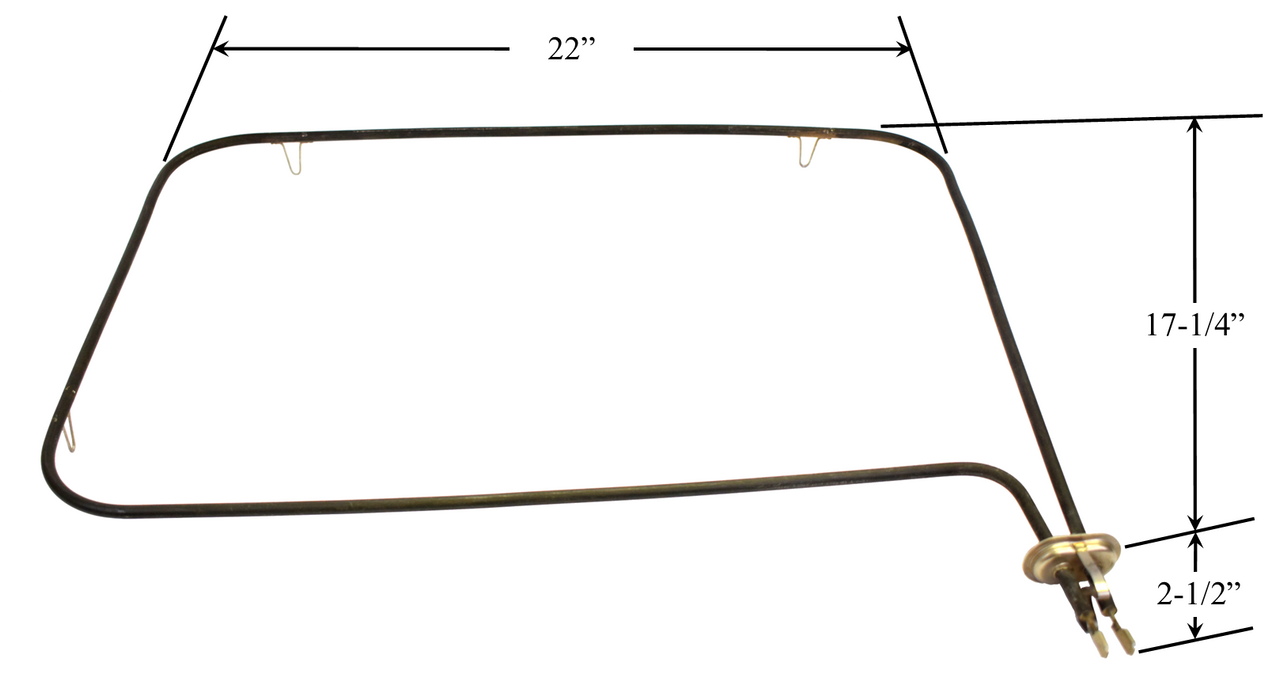

- Approx. Overall Size: 22" Width x 17-1/4" Length From Back Of Element To Mounting Brackets x 2-1/2" Insert From Bracket To Terminal Ends x 19/32" Center-to-Center Terminal Width.
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, General Electric, Hotpoint, RCA, and other Ranges And/Or Ovens: Use part numbers and dimensions to determine if this element will fit your appliance.
