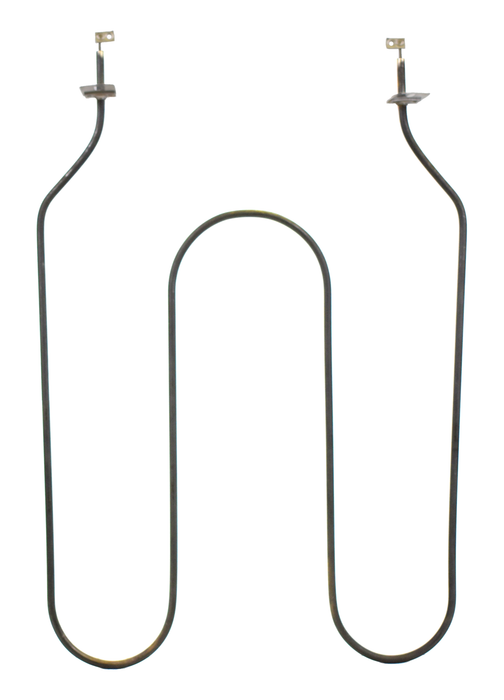

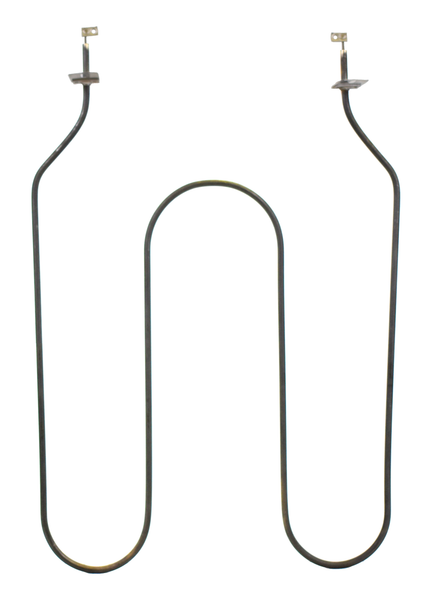

Therm Coil Drawing No.: 366R-4046-003 Therm Coil Model No.: TC-4889
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
- Replacement For Part Numbers:
Preway / Kenmore: K12029
Whirlpool: CH4889, 456841
Other: AP4672580, AP3087010, AP3956006, 115707
- 3000 W @ 208 V Rating.

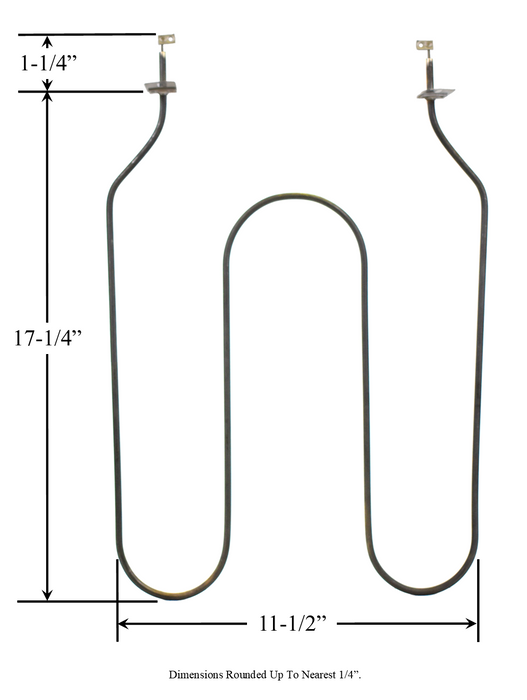

- Approx. Overall Size: 11-1/2" Width x 17-1/8" Length From Back Of Element To Mounting Brackets x 1-1/4" Insert From Bracket To Terminal Ends x 7-3/4" Center-to-Center Terminal Width.
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, General Electric, Hotpoint, RCA, and other Ranges And/Or Ovens: Use part numbers and dimensions to determine if this element will fit your appliance.
HELPFUL HINT: Use CTRL+F to use the search function for your Appliance Model Number.
- Used In Appliance Model Numbers:
155.4507300, 155.4507500, 155.4507700, 155.4527300, 155.4527301, 155.4527500, 155.4527700, 155.4547300, 155.4547301, 155.4547390, 155.4547391, 155.4547500, 155.4547590, 155.4547700, 155.4547790
