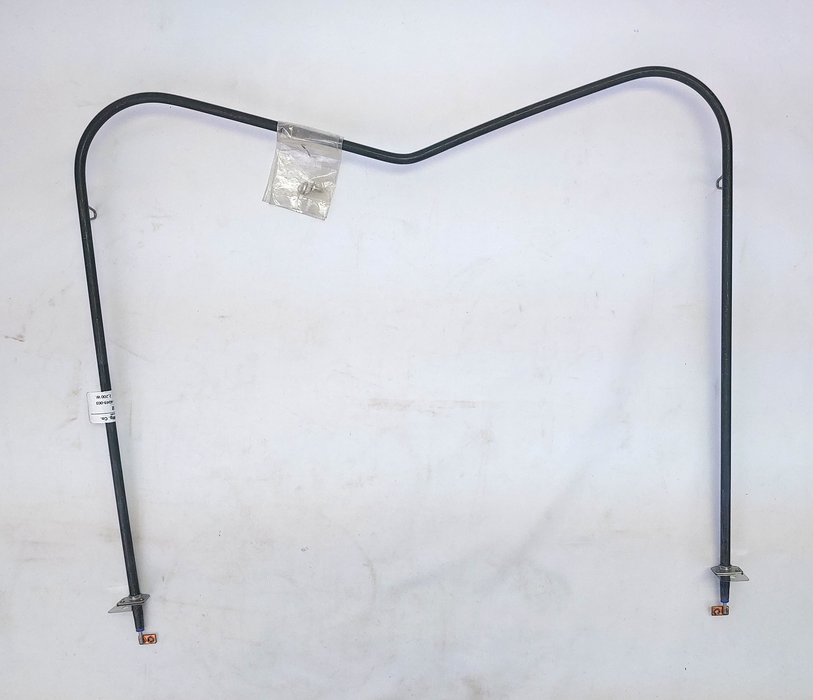

Therm Coil Drawing No.: 366R-4049-003 Therm Coil Model No.: TC-4892
Description
HELPFUL HINT: Use CTRL+F to use the search function for your part number.- Replacement For Part Numbers:
Kenmore / Preway / Whirlpool: 4322874, 4165563, 4170048, 4349893, K16337
Other: CH4892, 202-874892-001, 874892-001, 457828, RP840, TS4892, TS4892/840, TS840, TS840/4892, YCH4892, AP3103739, AP4673258, AP3389310, 567294, 115710
NOTE: Your part number may cross-reference to both our TC-4892 (366R-4049-003) and our TC-1011 (366R-4278-003) because there is manufacturer OEM cross-over for these units. Please compare your old element's terminal position (straight or pointed inward) and the element's dimensions to our two replacement options to ensure that you get the correct replacement.
- Rated: 2200 W @ 240 V
- Approximate Overall Size: 20-1/4" Wide x 16" Length From Back Of Element To Mounting Bracket x 1-1/2" Insert From Bracket To Terminal Ends

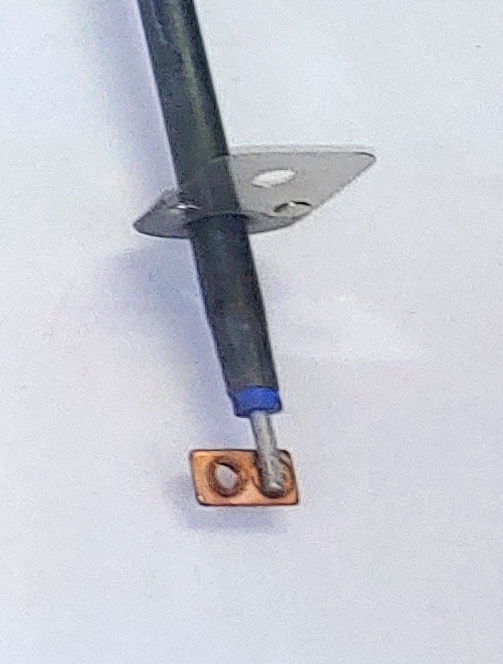

- Screw-In Threaded Terminals (Pointed Inward)
- Used in various models of Sunray, Kenmore/Sears, Kelvinator, Whirlpool, Frigidaire, Electrolux, Gibson, Westinghouse, and other Ranges And/Or Ovens: If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this bake element will fit your appliance.
HELPFUL HINT: Use CTRL+F to use the search function for your part number.
- Used In Kenmore/Sears Appliance Model Numbers:
1554507600, 1554507700, 1554527600, 1554527700, 1554547600, 1554547690, 1554547700, 1554547790
Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
