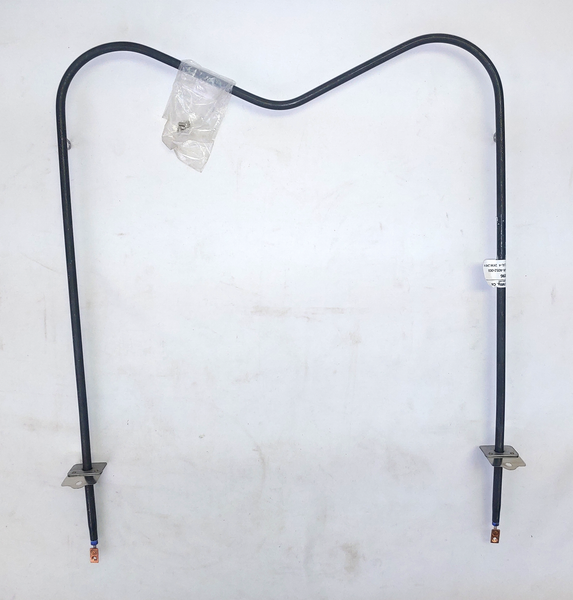

Model TC-4896: Whirlpool 4167088 Equivalent Range/Oven Bake Replacement Element, 2,000 W / 1,500 W @ 240 V / 208 V

Therm Coil Drawing No.: 366R-4052-003      Therm Coil Model No.: TC-4896

Description

• Replacement For Part Numbers:

 Whirlpool: 4167088, 12663, 126634, 4169737, 4170139, 4322562, CH4896, CC-12663, CC012663, CC12663, CH12663, 14001045, 451801, 457801, TJ90CH4896

Chambers: 12664, 126634, Q523026, Q523-026, Q-523-026

Kenmore: 37265

Chambers / Kenmore: 17692

Chambers / Kenmore / Whirlpool: 18079

Others: RP832, TS4896, TS4896/832, TS832, TS832/4896, YCH4896, CH4896CHR, PS406829, AP4502568, AP3389547, AP3102580, CH4864, 456390, RP4864, YCH4864, AP3672630, AP4818097, AP4606626, TC-4864, 366R-4026-003

•  2000 W / 1.500 W @ 240 V / 208 V Rating
• Approximate Overall Size: 15-3/4" Wide x 15-5/16" Length From Back Of Element To Mounting Bracket x 3-5/8" Insert From Bracket To Terminal Ends x 1-1/4" Terminal-To-Terminal Width

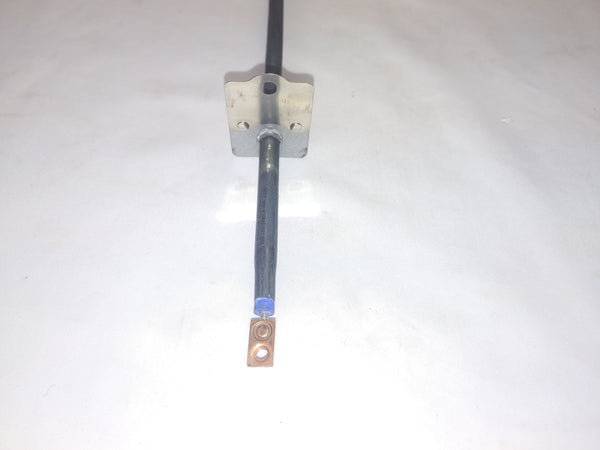

• #8-32 Screw-In Lug Terminals & Comes With Adapters to Push-In Male Quick-Disconnect Terminals
• Used in various models of Whirlpool brands which include Whirlpool, Chambers, Corning, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this bake element will fit your appliance.

Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
