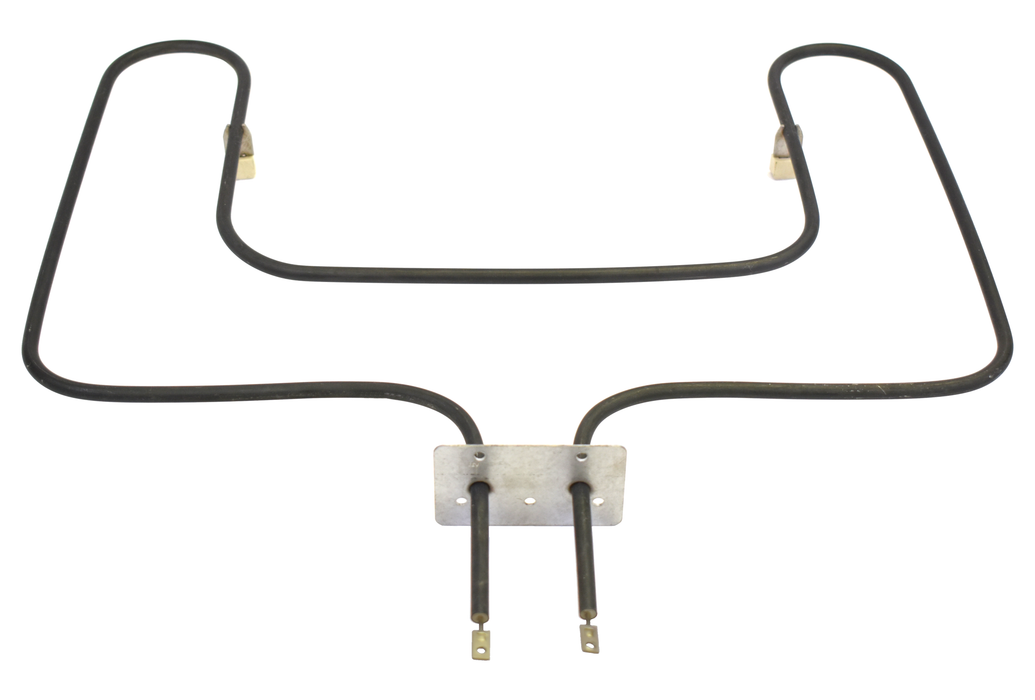

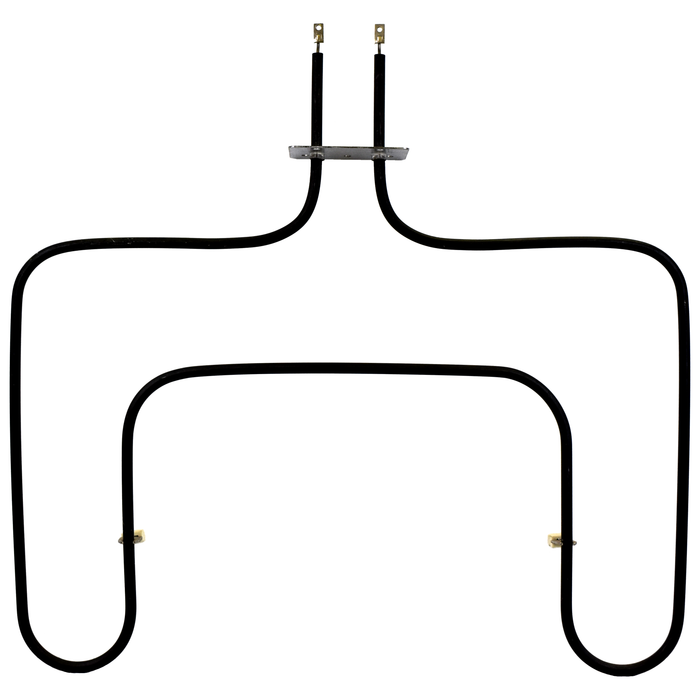

Model TC-5863: Litton / Maytag: 52603P01 / 53950P01 / 52252P01 Range/Oven Bake Replacement Element, 1,920W @ 120V

Call for Availability
Original price $ 86.10
Original price $ 86.10 - Original price $ 86.10
Original price $ 86.10
Current price $ 73.19
$ 73.19 - $ 73.19
Current price $ 73.19
Availability:
Call for Availability

Therm Coil Model No.: TC-5863            Therm Coil Drawing No.: 366R-4086-003

Description

  • Replacement For Part Numbers:

Litton / Maytag: 52603P01, 53950P01, 52252P01

Other: CH5863, 202-875863-001, 875863-001, AP2537970, AP3389383, 458599, TS5863, YCH5863, 605930, 115793

    • 1,920W @ 120V Rating

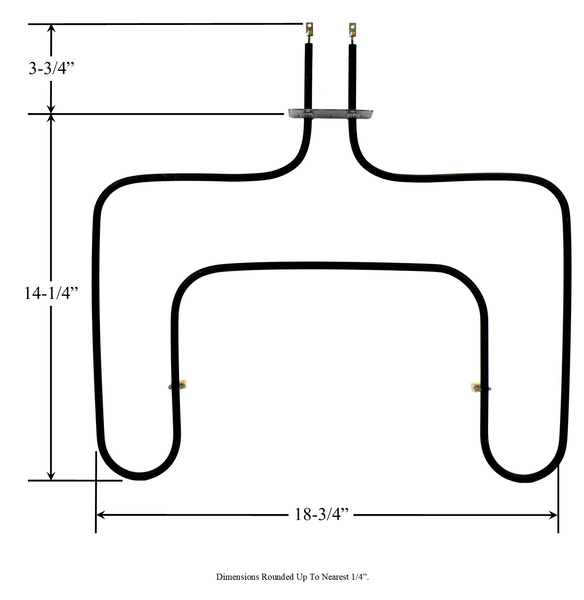

    • Approximate Overall Size: 18-3/4" Width* x 14-1/4" Back Of Element To Mounting Brackets x 3-5/8" Insert (Brackets to Terminal End) x 1-3/4" Center-to-Center Terminal Width  (* Due to the flexible nature of this element, this dimension may vary up to ±1", but can easily be restored in assembly.)
    • Durable Ceramic Support Legs

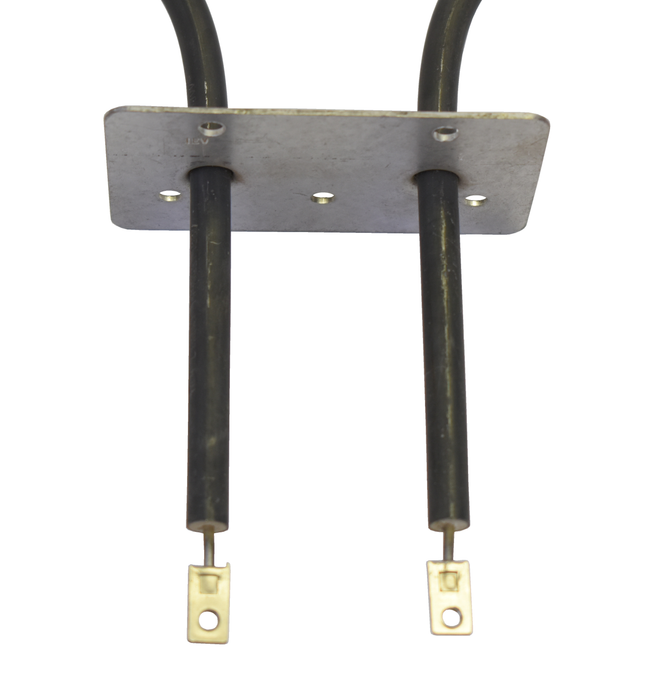

    • Male Quick-Connect Push-In Terminals
    • Used in various models of Maytag, Whirlpool, Litton, Sears / Kenmore, and other Ranges And/Or Ovens:  Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.



    Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
