Therm Coil Drawing No.: 366R-1528-003 Therm Coil Model No.: TC-528
DescriptionHELPFUL HINT: Use CTRL+F to use the search function for your Element Part Number.
- Replacement For Part Numbers:
Whirlpool / RCA Whirlpool: 268765, 261528, 270400
Other: CH528, TJ90CH528, AP3602145, AP4502569, 467859, 115739, 453026, RP528, TS528, YCH528, 202-873802-001, 872802-001, CH528WPL
- 2200 W @ 240V Rating

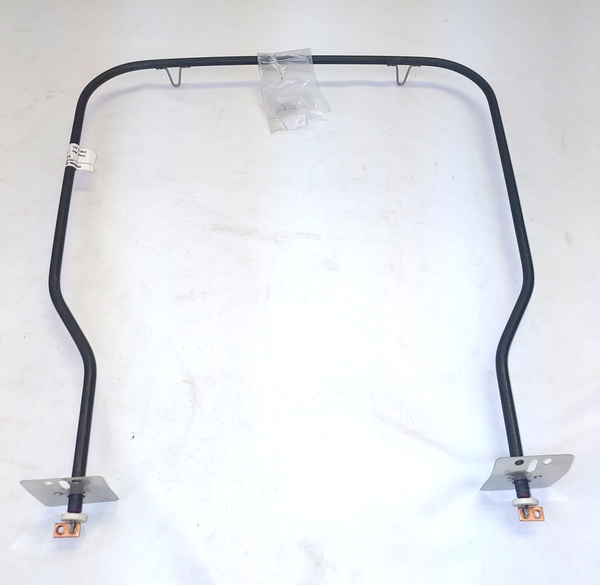

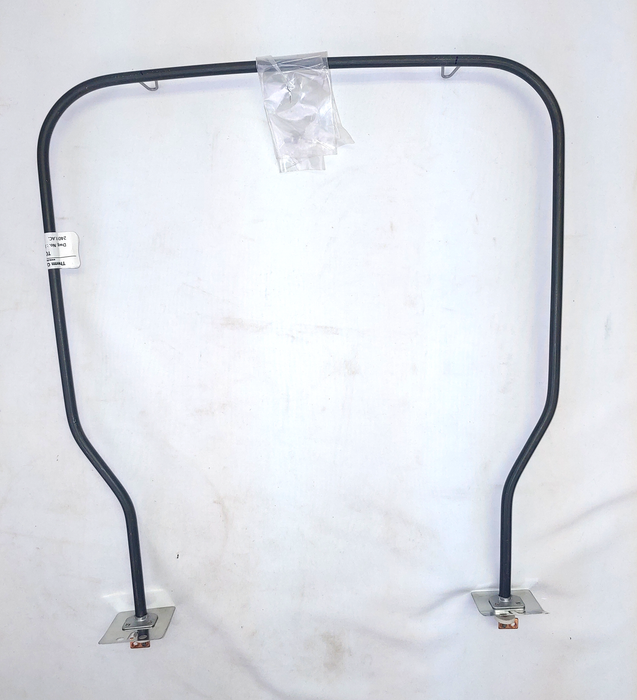

- Approximate Overall Size: 14-5/8" Width x 15-1/2" Back Of Element To Mounting Brackets x 11-7/8" Center-to-Center Terminal Width (NOTE - Due to the flexible nature of this element, this dimension may vary, but can be easily restored in assembly.)

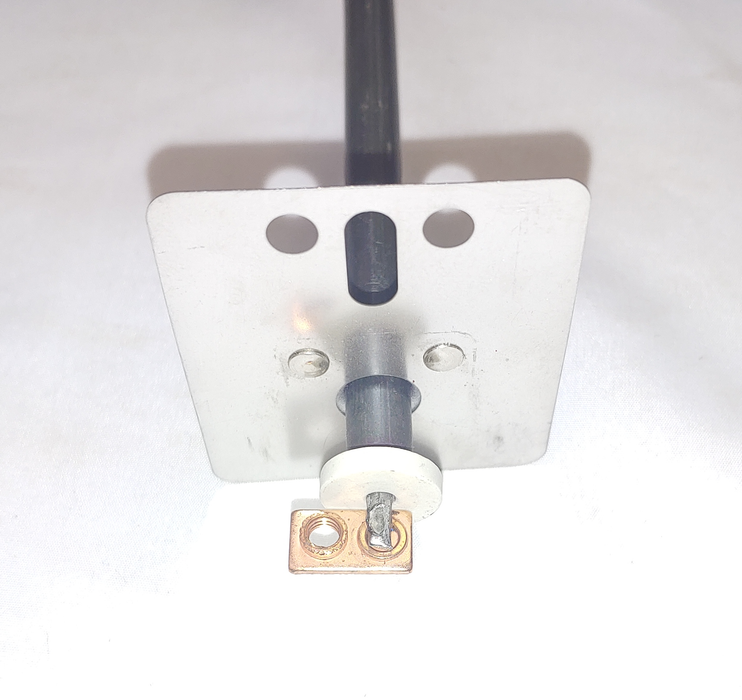

- #8-32 Threaded Screw-in Terminals, 90° Positioned
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
