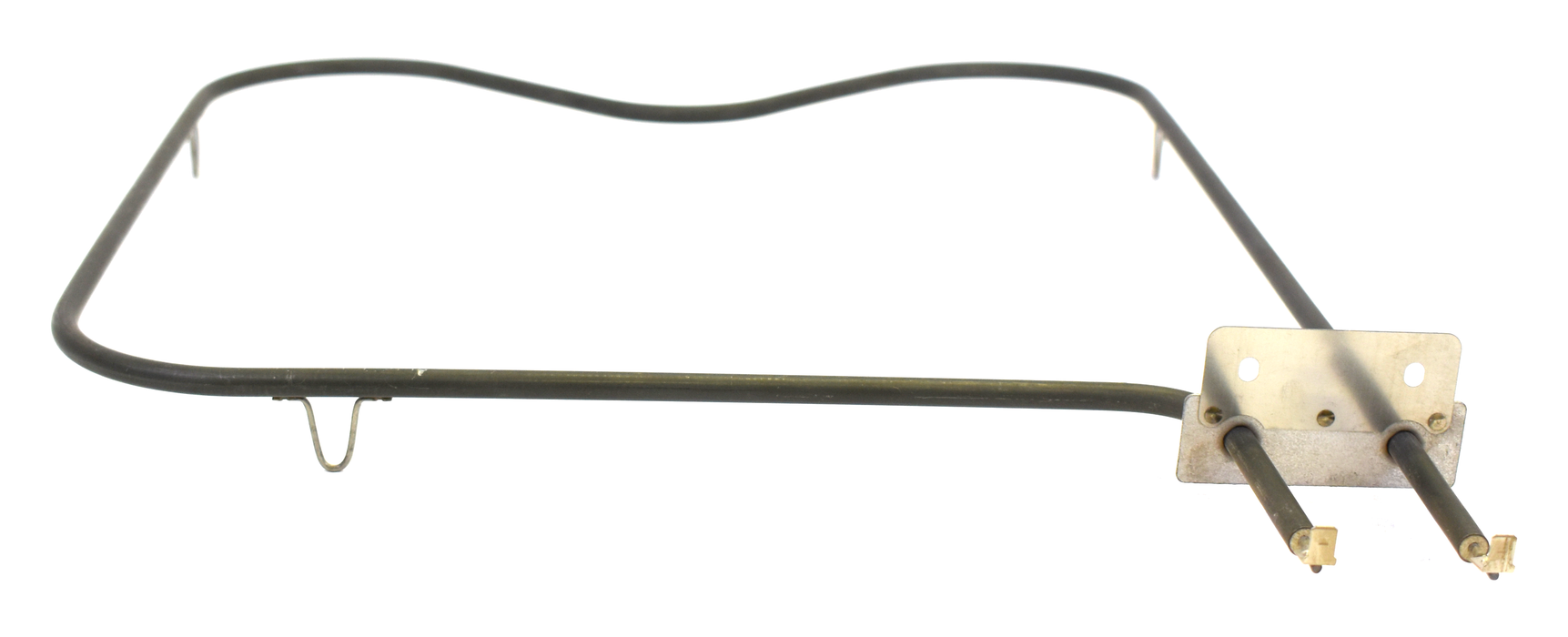

Model TC-2833: Kenmore 7622 Equivalent Range/Oven Bake Replacement Element, 2,000W @ 250V

Discounted price $ 51.26 List price $ 60.30

Therm Coil Drawing No.: 366R-4176-003      Therm Coil Model No.: TC-2833

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Athens: E-141-029, E141029

Kenmore / Frigidaire: 7622

Other: CH2833, 115502, 456243, RP786, TS2833, TS2833/786, TS786, TS786/2833, YCH2833, AP3767611, AP4657464

  • 2000 W @ 250 V Rating.

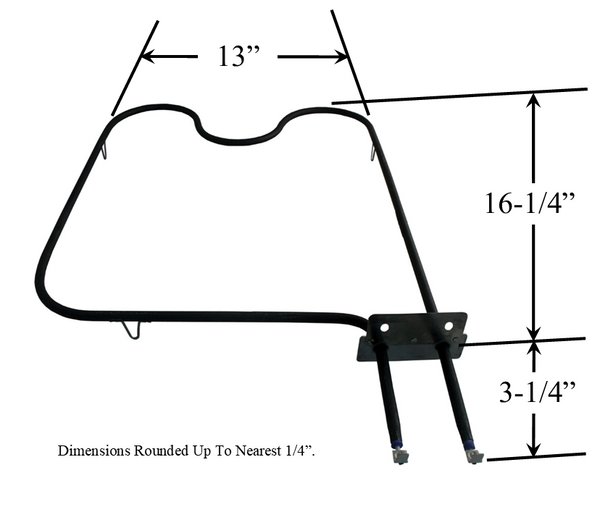

  • Approx. Overall Size: 15" Width x 16-5/8" Length From Back Of Element To Mounting Brackets x 3-1/4" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Width.

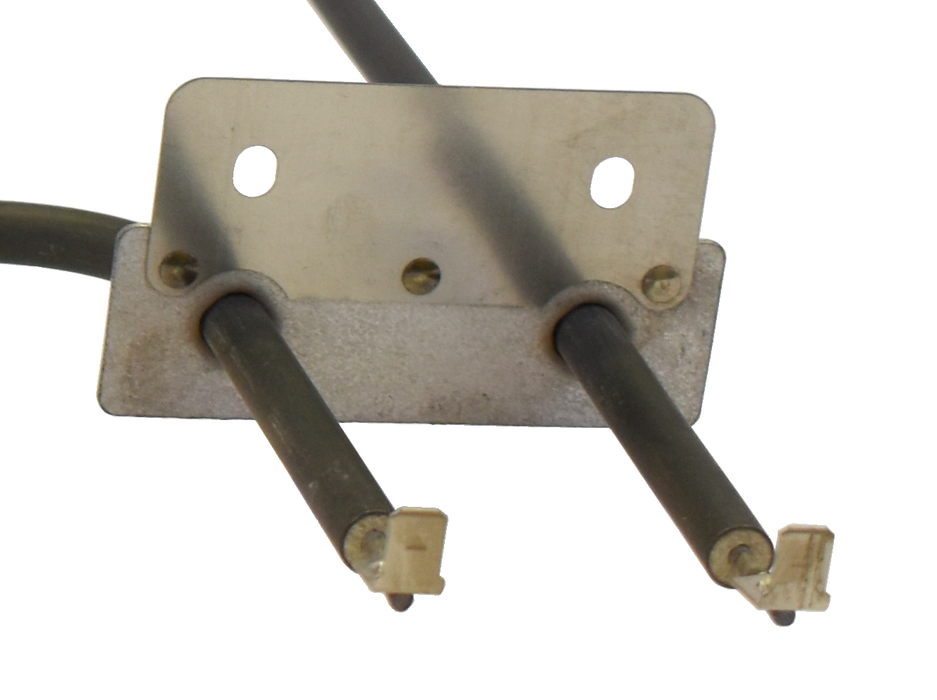

  • Right-angle Male Quick-Connect Push-In Terminals
  • Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore/Sears, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this bake element will fit your appliance.





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
