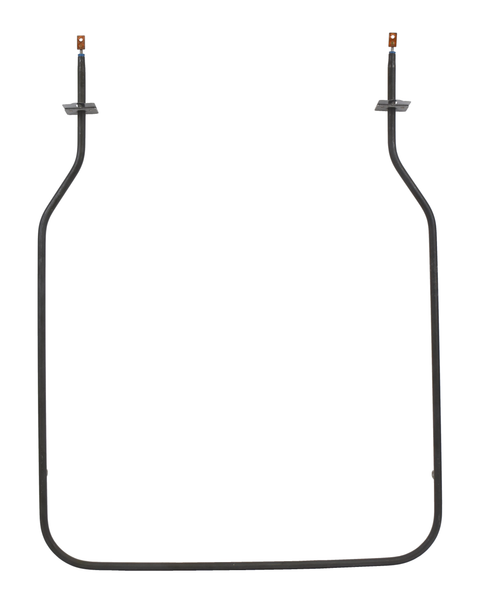

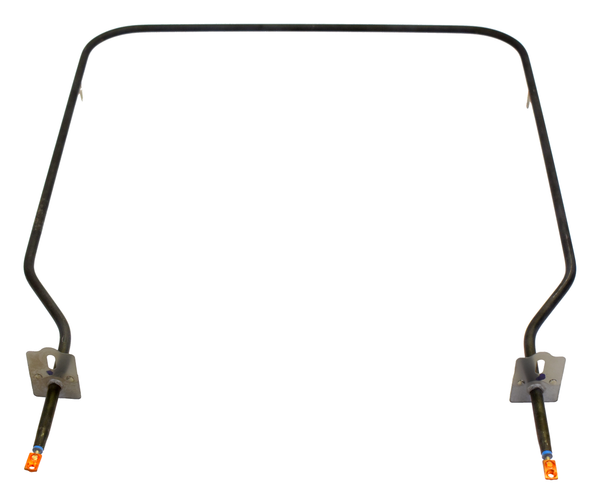

Model TC-550: Modern Maid 74-6-99, 74-6-121 Equivalent Range/Oven Bake Replacement Element, 2,600W @ 240V

Save 15% Save 15%
Original price $ 110.25
Original price $ 110.25 - Original price $ 110.25
Original price $ 110.25
Current price $ 93.71
$ 93.71 - $ 93.71
Current price $ 93.71
Availability:
3 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-1550-003      Therm Coil Model No.: TC-550

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Modern Maid / Norge / Preway: 74-6-99, 74-6-121, 74699, 746121

Other: TJ90CH550, 453034, CH550, RP550, TS550, YCH550, AP4502570, 115742

  • 2600 W @ 240 V Rating

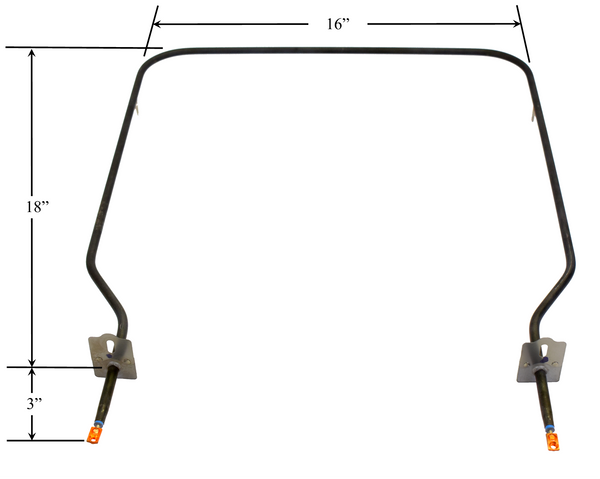

  • Approx. Overall Size: 16" Width x 18" Length From Back Of Element To Mounting Brackets x 3" Insert From Bracket To Terminal Ends x 12-5/8" Center-to-Center Terminal Width.

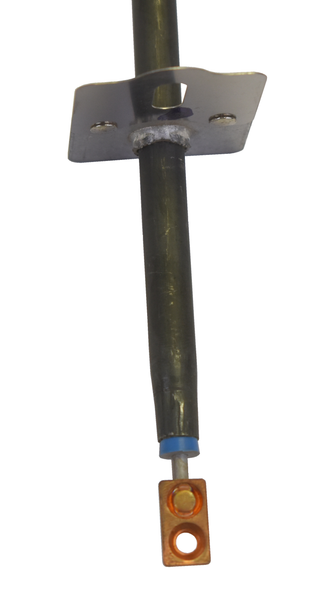

  • Threaded Screw-In Terminals
  • Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
