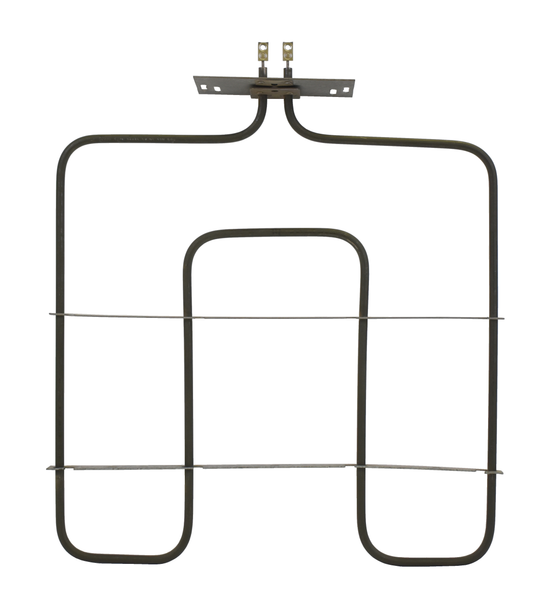

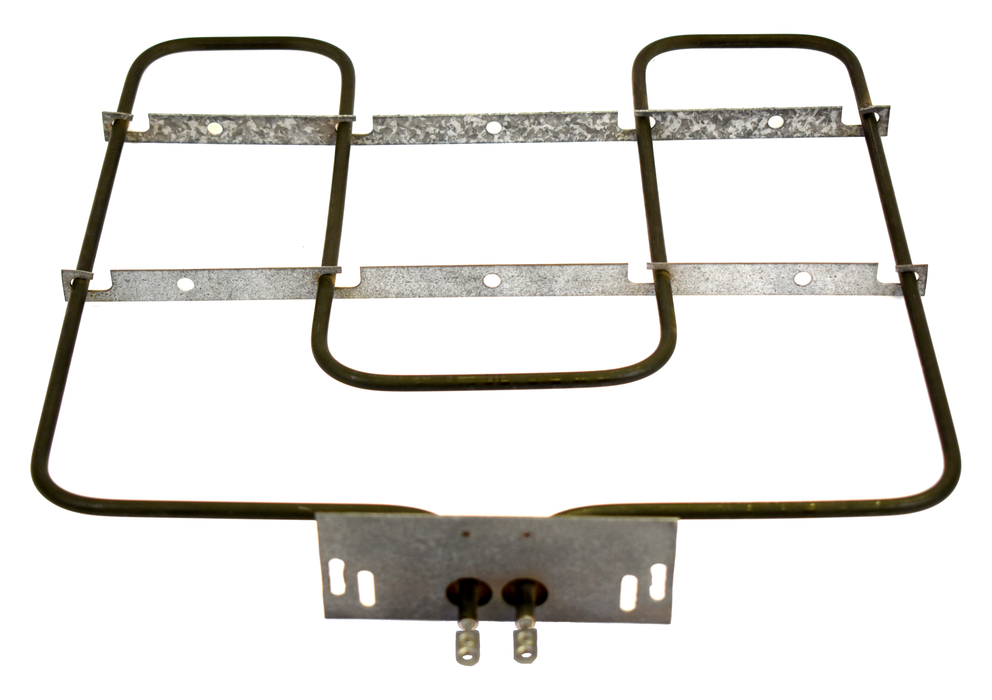

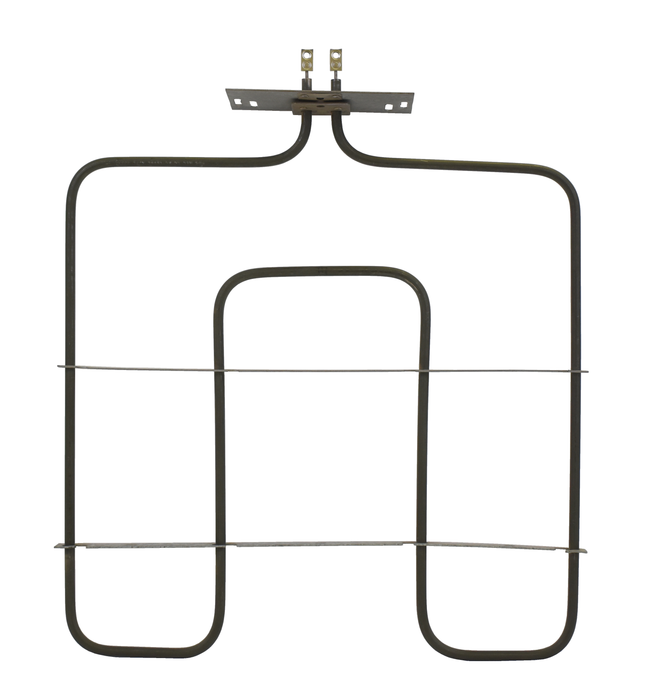

Therm Coil Drawing No.: 366R-1575-003 Therm Coil Model No.: TC-575
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
- Replacement For Part Numbers:
Chromalox: RTA, 400522
Other: TS575, YRTA, AP4527867, 219990
- 3000 W @ 250 V Rating
- Approx. Overall Size: 13-1/4" Width x 15-1/8" Length From Back Of Element To Mounting Brackets x 1-1/8" Insert From Bracket To Terminal Ends x 1-1/4" Center-to-Center Terminal Width.

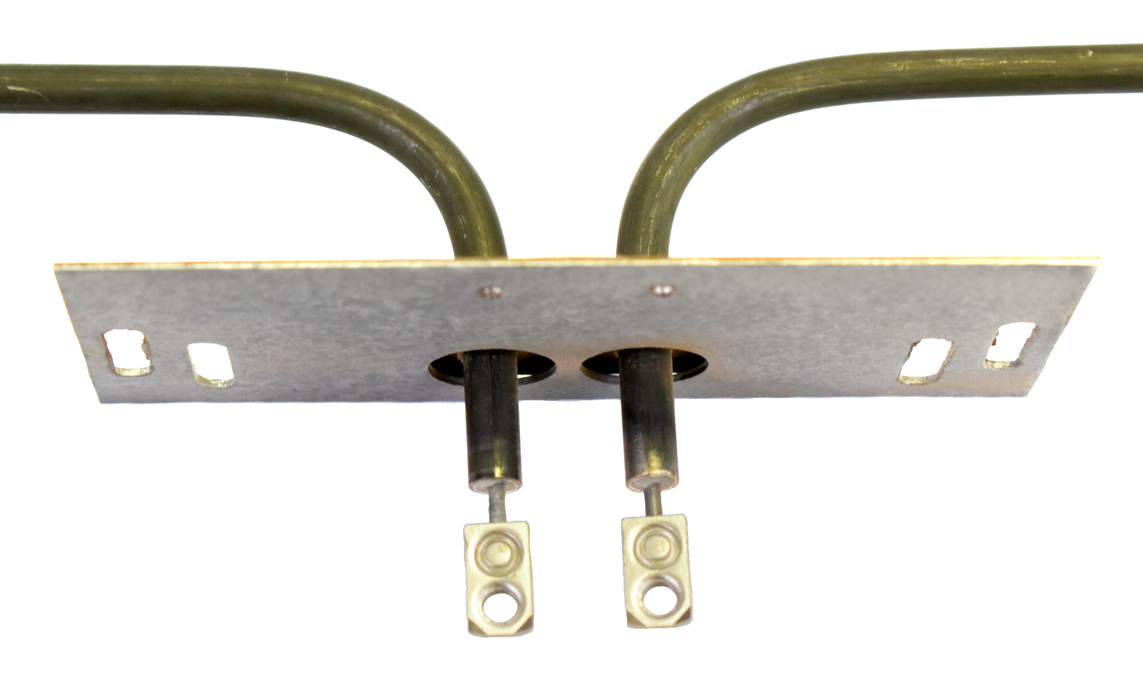

- Male Quick-Connect Push-In Terminals
- Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens: This is a universal broil element and is compatible with numerous appliances - use dimensions to determine if this element will fit your appliance.
