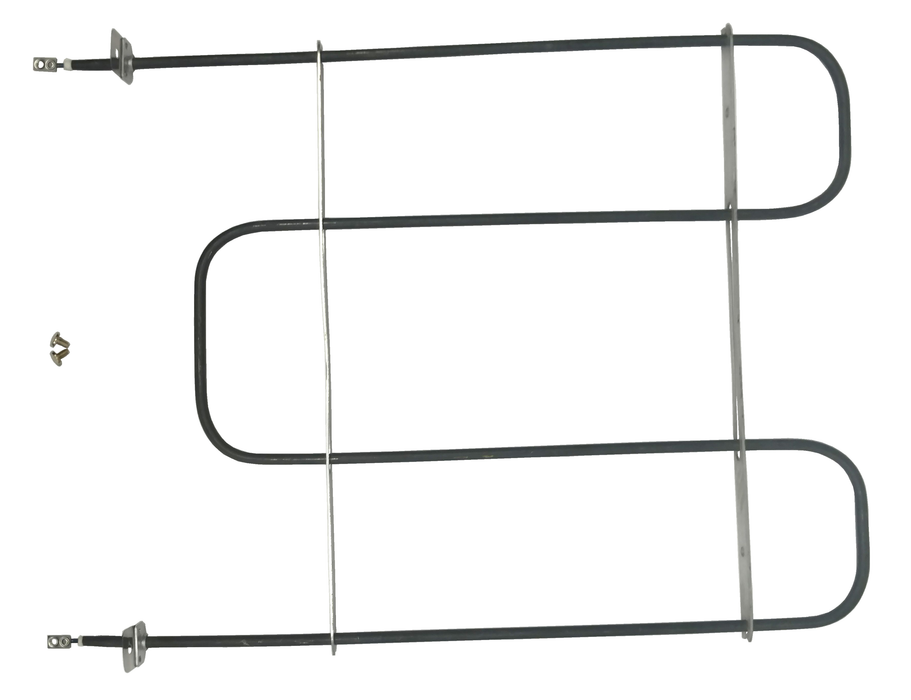

Model TC-579: Whirlpool RTU Range/Oven Broiler Replacement Element, 2,250/3,000W @ 208/240V

Discounted price $ 43.05 List price $ 50.65

Therm Coil Drawing No.: 366R-3020-003      Therm Coil Model No.: TC-579

Description

  • HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Montgomery Ward: 88-7932

Chromalox: RTU, 400557

Other: AP3389088, CH579, RP579, TS579, 366R-3020-001

  • 2250W / 3000W @ 208V / 240V Rating
  • Approximate Overall Size: 13-1/4" Width x 16-1/4" Back Of Element To Mounting Brackets x 1-7/8" Insert From Bracket to Terminal End x "13 Center-to-Center Terminal Width

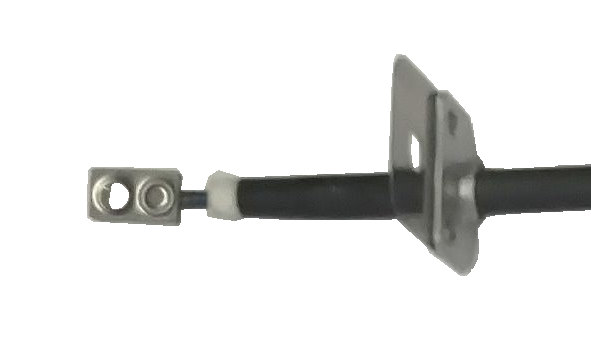

  • #8-32 Screw-In Terminals and Includes Screws.  (If you're looking for this element with Male Quick-Connect Push-In Terminals, Choose Element 366R-3018-001.)
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore,  and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.



    Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
