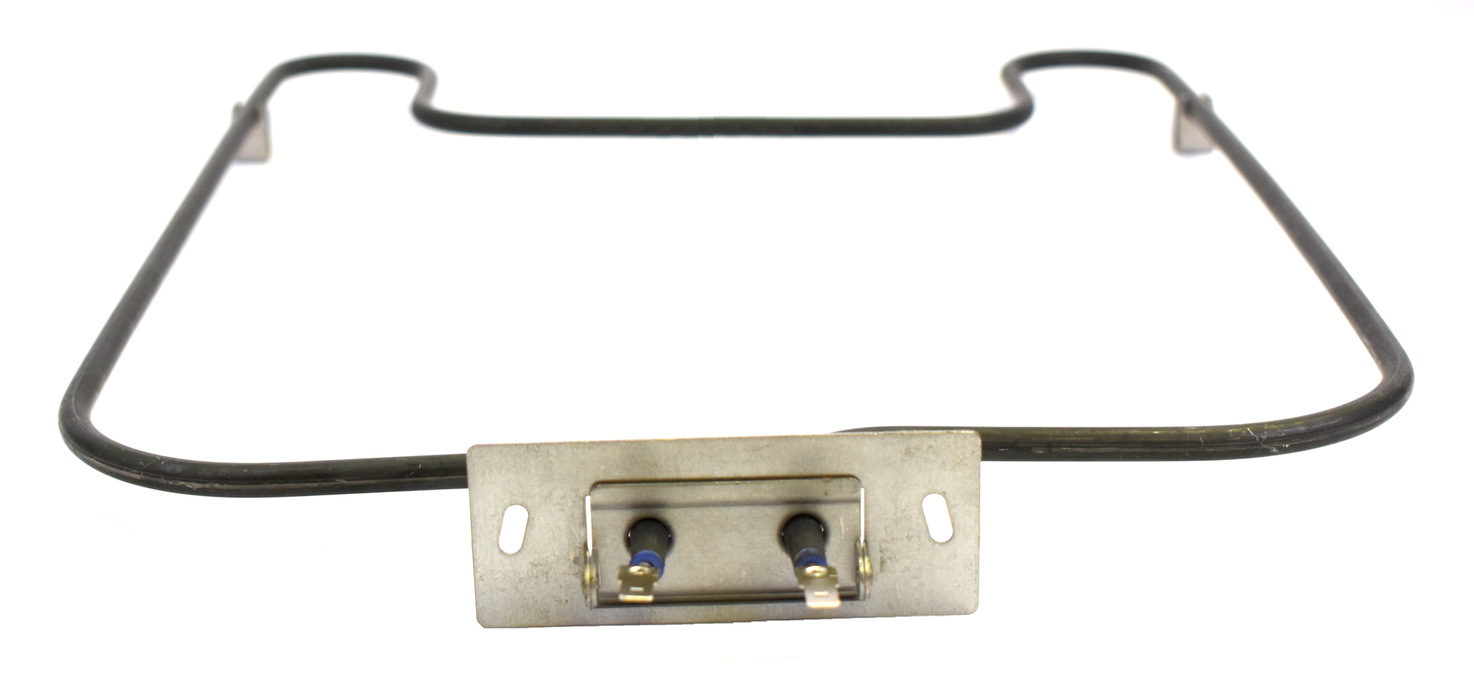

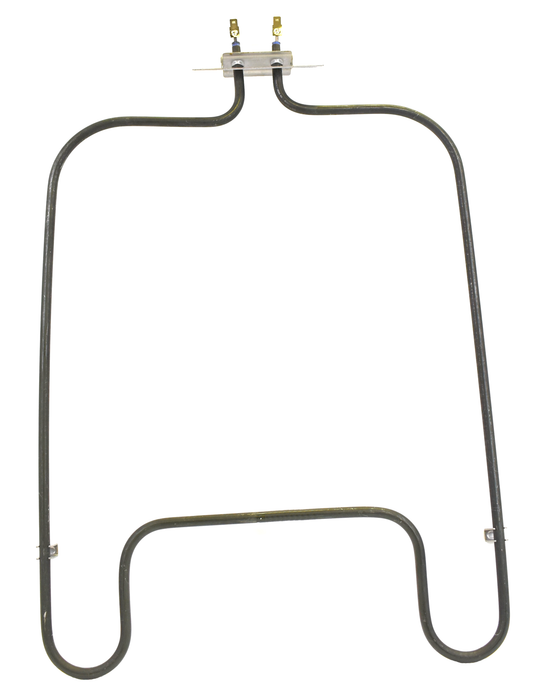

Model TC-5820: Frigidaire 5309950887 Equivalent Range/Oven Bake Replacement Element, 3,000 / 2,250 W @ 240 / 208 V

Sale price $ 42.50 Regular price $ 50.00

Therm Coil Drawing No.: 366R-4060-003      Therm Coil Model No.: TC-5820

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Frigidaire: 5309950887, 00632071, 00632073, 00632309, 00632310, 00632311, 00632312, 00634706, 00634707, 01133474, 01133600, 07525706, 07526607, 09950887, 09990003, 1133474, 1133600, 634706, 9950887, 632071, 632073, 632309, 632310, 632311, 632312, 634707, 7525706, 7526607

Other: CH5820, 202-875820-001, 456964, YCH5820. AP2591772, AP3389060, 12908, 115761, AH474712, EA474712, F83-449, F83-484, PS474712

  • 3000 / 2250 W @ 240 / 208 V Rating

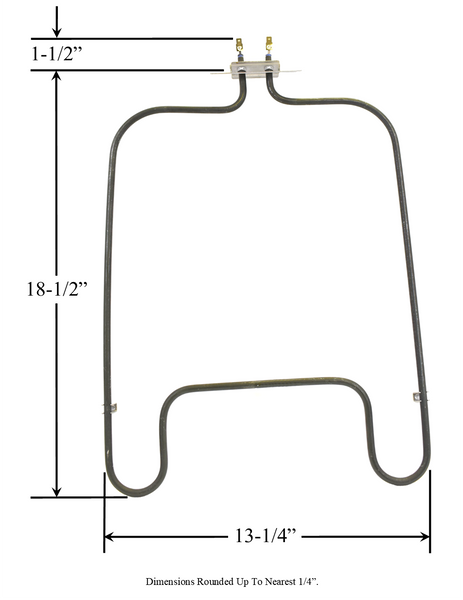

  • Approx. Overall Size: 13-1/4" Width x 18-1/2" Length From Back Of Element To Mounting Brackets x 1-3/8" Insert From Bracket To Terminal Ends x  1-1/4" Center-to-Center Terminal Width.

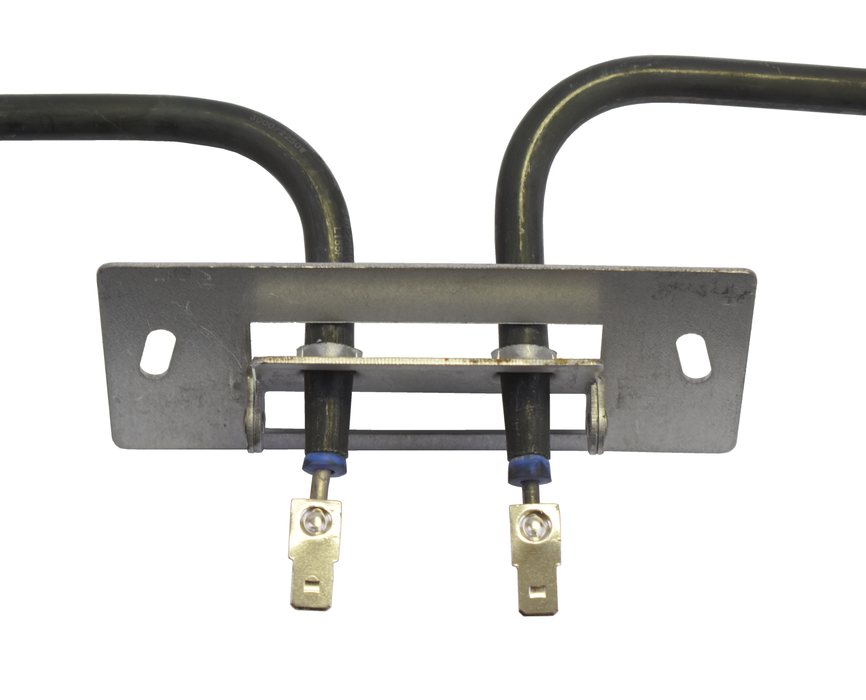

  • Male Quick-Connect Push-In Terminals
  • Used in various Whirlpool, Frigidaire, Kenmore, Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Admiral, Estate, Inglis, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood ovens:  Use part numbers and dimensions to determine if this baking element will fit your appliance - its is used on many models.



Therm Coil MFG. Co. is not affiliated with Frigidaire Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
