Model TC-5834: Chambers CC70855 / Kenmore 22238 Equivalent Range/Oven Bake Replacement Element, 2,200W / 1,650W @ 240V / 208V

Save 15% Save 15%
Original price $ 90.00
Original price $ 90.00 - Original price $ 90.00
Original price $ 90.00
Current price $ 76.50
$ 76.50 - $ 76.50
Current price $ 76.50
3 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-4067-003      Therm Coil Model No.: TC-5834


HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
  • Replacement For Part Numbers:

Chambers: CC70855, CC70644A, CC70845, CC523-029E, Q523-029, CC70155, CC70662A, CC305337-4, CC305337-5

Kenmore: 22238, 70845, 70855

Other: CH5834, 458134, TS5834, YCH5834, AP4822428, AP4654367, AP4850848, AP3768454, 115771

TC-5834 Replaces: Therm Coil Model TC-6804 (Drawing No.: 366R-4112-003).

  • 2200 W / 1650 W @ 240 V / 208 V Rating

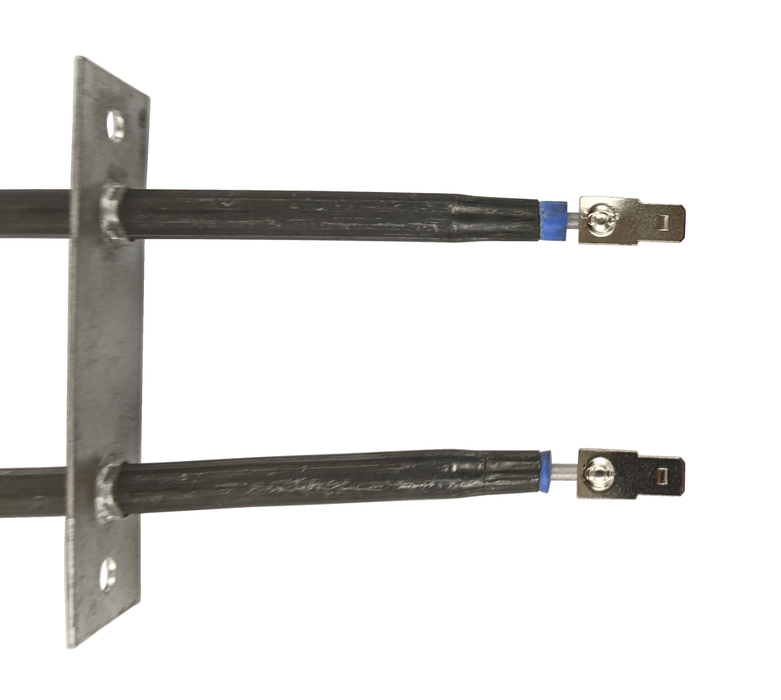

  • Push-in Terminals

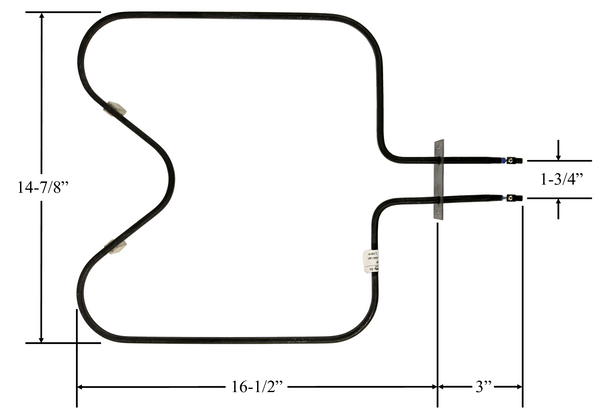

  • Approx. Overall Size: 14-7/8" Width x 16-1/2" Length From Back Of Element To Mounting Brackets x 3" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Distance.
  • Used in various models of Whirlpool, Sunray, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.



    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
