Model TC-5835: Frigidaire 5309951539 Equivalent Range/Oven Bake Replacement Element, 3,370 W @ 250 V

Discounted price $ 98.26 List price $ 115.60

Therm Coil Drawing No.: 366R-4068-003      Therm Coil Model No.: TC-5835


HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Frigidaire: 5309951539, 00635621, 09951539, 635621, 9951539

Other: CH5835, 029-875835-001, 454214, AP3389484, AP3323824, 643001, 115772, RP796, YCH5835.

  • 3370 W @ 250 V Rating

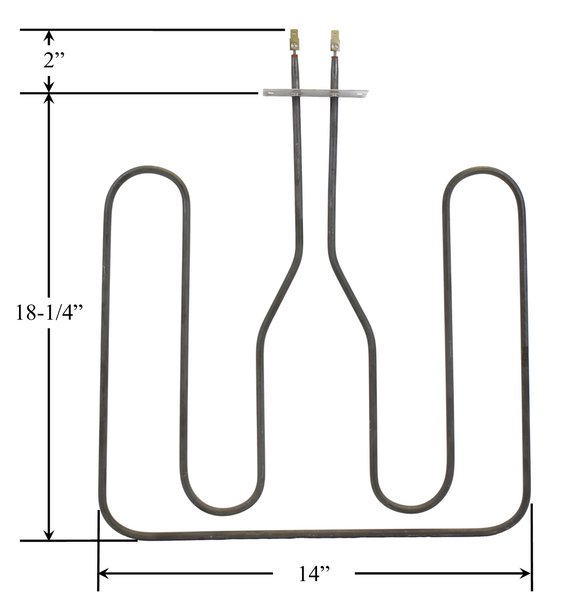

  • Approx. Overall Size: 14" Width x 18-1/4" Length From Back Of Element To Mounting Brackets x 2" Insert From Bracket To Terminal Ends x  1-1/4" Center-to-Center Terminal Width.

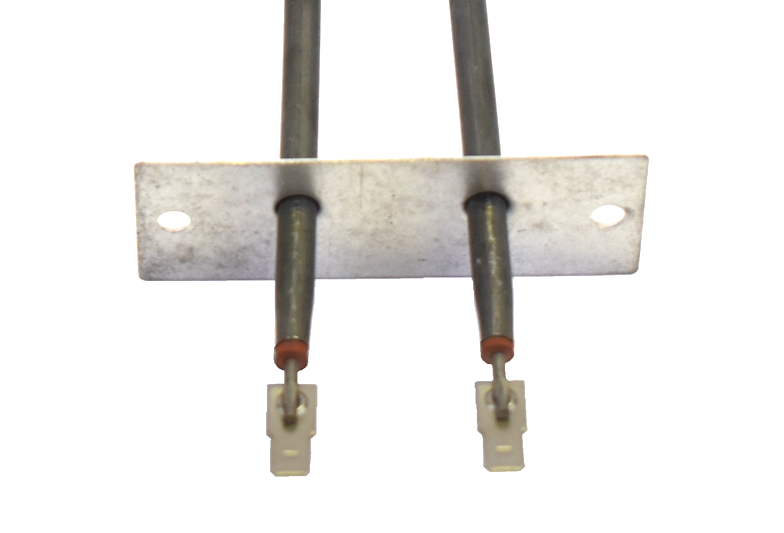

  • Male Quick-Connect Push-In Terminals
  • Used in various Frigidaire, Kenmore, Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Admiral, Estate, Inglis, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Whirlpool, Caloric & Glenwood ovens:  Use part numbers and dimensions to determine if this baking element will fit your appliance - its is used on many models.


Therm Coil MFG. Co. is not affiliated with Frigidaire Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
