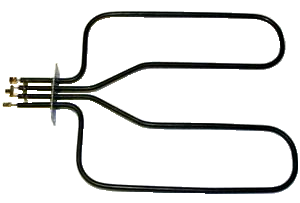

Model TC-5846: Whirlpool: WPY04000048 / Maytag 7406P004-60 Equivalent Range/Oven Broil Replacement Element, 3,200W / 2,400W @ 240V / 208V

Discounted price $ 46.96 List price $ 55.25

Therm Coil Drawing No.: 366R-4074-003      Therm Coil Model No.: TC-5846

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Magic Chef: 106-35CM, 106-35AM2, 106-35AM, 1938-358

Maytag: 7406P003-60, 7406P004-60, 7406P007-60, 7406P076-60

Whirlpool: WPY04000048, Y04000048, 04000048, 1938358, 1938369, 1938371, 550846, 7406P003-60, 7406P004-60, 7406P007-60, 7406P076-60

Other: CH5846, 115779, 458329, RP854, TS5846, TS5846/854, TS854, TS854/5846, YCH5846, AP3389066, AP2666730, AP6024120, 790209, PS11757470, Y04000037, Y0E00217499

  • 3200 W / 2400 W @ 240 V / 208 V Rating
  • Approx. Overall Size: 12-1/2" Width x 15-1/8" Length From Back Of Element To Mounting Brackets x 3-1/4" Insert From Bracket To Terminal Ends x 1-11/16" Center-to-Center Terminal Width.
  • Male Quick-Connect Push-In Terminals
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.







Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
