Model TC-5851: Whirlpool WB44X238, 4336509 Equivalent Range/Oven Bake Replacement Element, 1,500W / 2,000W @ 208V / 240V

Save 15% Save 15%
Original price $ 63.00
Original price $ 63.00 - Original price $ 63.00
Original price $ 63.00
Current price $ 53.55
$ 53.55 - $ 53.55
Current price $ 53.55
Availability:
3 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-4078-003      Therm Coil Model No.: TC-5851

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
  • Replacement For Part Numbers:

Whirlpool / Roper / Kenmore:

WB44X238, 4336509, 310239, 311734, 311736, 312438, 320418, 320419, 324206, 324207, 324712, 324713, 331163, 331164, 332562, 332563, 333969, 333970, 335914, 4333116, 4334334, 4336508, 4337103, 4337104, 4337607, 4353903, 4353946, 4354427, 4354645, 4354646, 4354685, 4354910, 570519, WB44M0002, WB44M2, WB44X0238

Other:

CH5851, 260961, 115785, 458505, AH249437, EA249437, PS249437, AP2600092, AP2597184, AP2607080, AP2608506, AP4891971, AP4621510, AP2598853, AP4620901, AP2608505, AP4621509, AP3060212, AP4622445, AP2962537, AP2031055, AP3389255

  • 1500 W / 2000 W @ 208 V / 240 V Rating

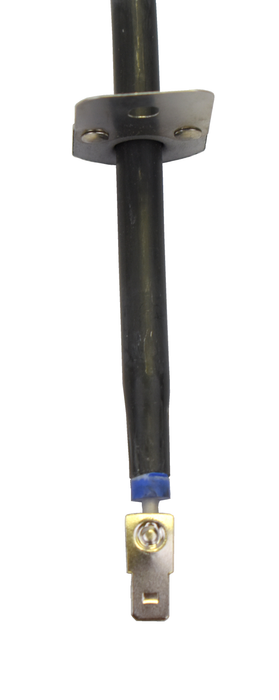

  • Male Quick-Connect Push-in Terminals

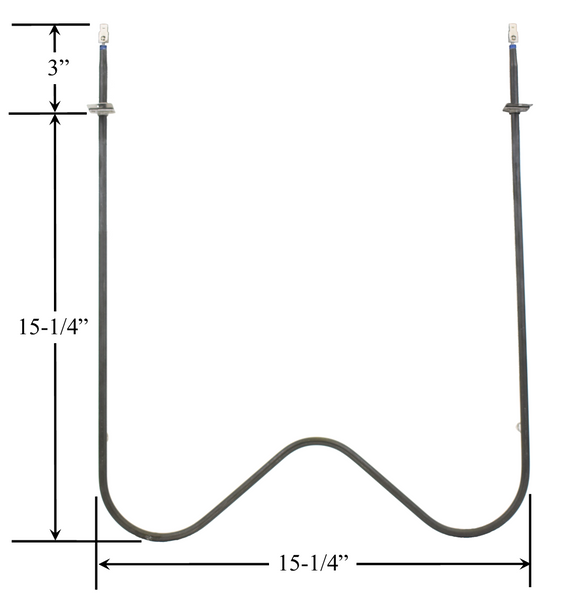

  • Approx. Overall Size: 15-1/4" Width x 15-1/4" Length From Back Of Element To Mounting Brackets x 3" Insert From Bracket To Terminal Ends.
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.

HELPFUL HINT: Use CTRL+F to use the search function for your Appliance Model Number.

  • Used In Appliance Model Numbers:

2055B1A, 2055B2A, B9607X0, 2055B0A, 2075B0A, 2075B1A, 2092B0A, B96070  B9908B3, 2095B1A, 2095B2A, L3K335GL0, 2075B2A, 2095B0A, B9608B0, B9608B3, B9608B4, B9608W0, B9608W3, B9608W4, B9757X0, B9757X1, B9758B0, B9758B3, B9907X0, B9908B0, L3K335GL1, L3K340GL0, L3K340GL1, 278.4088813, 278.4088890, 278.4088891, 278.4088892, 278.4088893, 278.4088894, 278.4088895, 278.4258492, 278.4258493, 278.4258690, 278.4288813, 278.4288890, 278.4288891, 278.4288892, 278.4288893, 278.4288894, 278.4288895, 278.4298492, 278.4298493, 278.4298690, 278.4298890, 278.4298891, 278.4298892, 278.4298893, 278.4418492, 278.4418493, 278.4418790, 278.4418791, 911.4088816, 911.4088896, 911.4288816, 911.4288896, 911.4298894





    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
