Model TC-5860: Whirlpool / Amana C2704901, CH5860 Equivalent Range/Oven Bake Replacement Element, 2,500W @ 240V

Save 15% Save 15%
Original price $ 64.50
Original price $ 64.50 - Original price $ 64.50
Original price $ 64.50
Current price $ 54.83
$ 54.83 - $ 54.83
Current price $ 54.83
Availability:
3 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-4083-003      Therm Coil Model No.: TC-5860

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
  • Replacement For Part Numbers:

Amana / Whirlpool:

C2704901, A44300-1, A44300-2, A4430001, A4430002, C27049-1, C2704902, C2734101, CG983765, CG984777, C27341-1, C-27049-1, R0199287, R0710036

Other:

CH5860, 458564, 115790, TS5860, TS5860/872, YCH5860, AP3389574, AP4126918, 2282

  • 2500 W @ 240 V Rating

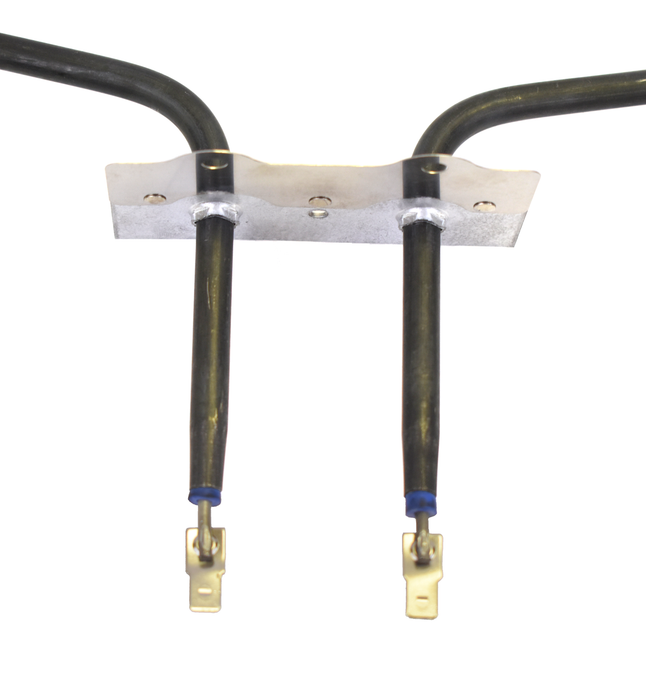

  • Male Quick-Connect Push-in Terminals
  • Approx. Overall Size: 19-3/4" Width x 16" Length From Back Of Element To Mounting Brackets x 3-3/8" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Width.
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.

HELPFUL HINT: Use CTRL+F to use the search function for your Appliance Model Number.

  • Used In Appliance Model Numbers:

ARH660HR (P1120001S), ARR-415 (P8577101S), ARR630 (P8577206S), ARC515 (P8577201S), ARR-405 (P8531201S), ARR305 (P8551104S), ARC-1B (P8512210S), ARC-506 (P8562002S), ARH660 (P8577209S), ARH660 (P8577204S), ARR301 (P8531201S), ARR301W (P8531202S), RCR-8 (P8551201S), ARC-1 (P8500101S), ARC-100 (P8500103S), ARC-100B (P8512209S), ARC-100B (P8512205S), ARC-100B (P8512203S), ARC-1B (P8512201S), ARC-1B (P8512206S), ARC-2 (P8500102S), ARC-2B (P8512207S), ARC-2B (P8512202S), ARC-2B (P8512215S), ARC-2B (P8512211S), ARC100B (P8512213S), ARC100D (P8512217S), ARC1B (P8512214S), ARC502W (P8567501S), ARC505 (P8562001S), ARC505B (P8562005S), ARC515 (P8577202S), ARC515 (P8577203S), ARE650 (P8577208S), ARE650 (P8577205S), ARR-201 (P8545005S), ARR-201 (P8545002S), ARR-201 (P8545004S), ARR-401 (P8531210S), ARR-401 (P8531204S), ARR-401 (P8531208S), ARR-402 (P8531209S), ARR-402 (P8531205S), ARR-402 (P8531211S), ARR-405 (P8562103S), ARR-412 (P8531212S), ARR101W (P8545001S), ARR303 (P8523512S), ARR303 (P8523509S), ARR303 (P8551102S), ARR303 (P8523501S), ARR303 (P8523506S), ARR303W (P8551105S), ARR305 (P8523503S), ARR305 (P8551101S), ARR305 (P8523505S), ARR305 (P8523508S), ARR305 (P8523511S), ARR630 (P8577210S), ASC-1 (P8500104S), ASC-1B (P8512204S), ASC-1B (P8512208S), ASC-1B (P8512216S), ASC-1B (P8512212S), ASR303 (P8523510S), ASR303 (P8523504S), ASR303 (P8523513S), ASR303 (P8551106S), ASR303 (P8523507S), ASR303 (P8551103S), CARH660 (P8577207S), CARH660HR (P1120002S), CRCR-7 (P8551505S), CRCR8 (P8551204S), RCC-10 (P8551302S), RCC-10 (P8551301S), RCC-1010 (P8572901S), RCC-1010 (P8572903S), RCC-6 (P8531801S), RCC10 (P8551303S), RCC1020 (P8576901S), RCC1020 (P8576903S), RCC1020 (P8576902S), RCC6 (P8531802S), RCR-1010 (P8572801S), RCR-1010 (P8572803S), RCR-5 (P8531901S), RCR-5 (P8231902S), RCR-7 (P8551501S), RCR-7 (P8551504S), RCR-700 (P8572701S), RCR-700 (P8572703S), RCR-8 (P8551203S), RCR1020 (P8576801S), RCR7 (P8551506S), RCR720 (P8576701S), RCR8 (P8551205S)





    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
