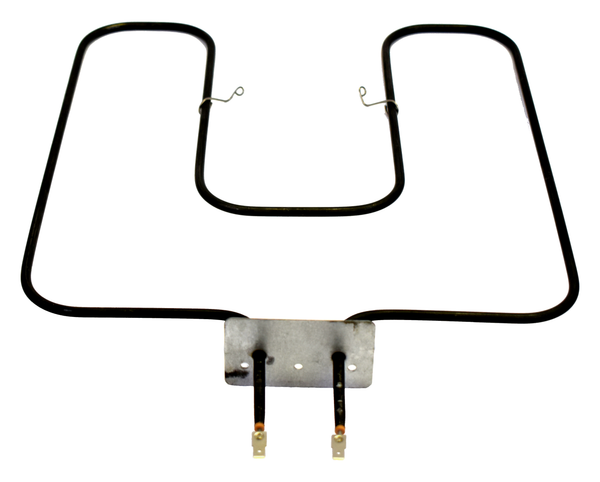

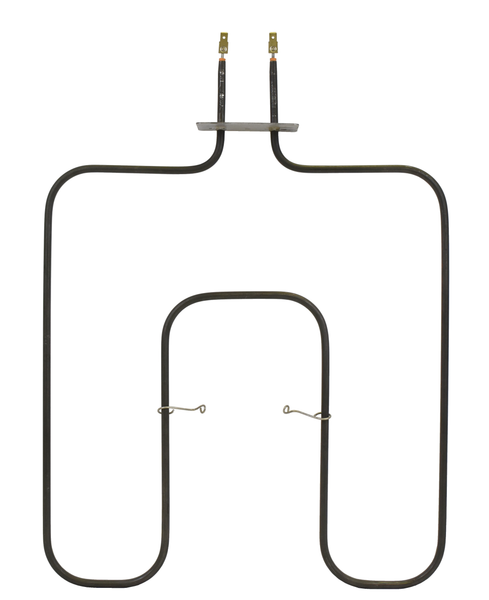

Model TC-5869: Caloric: 31-063532-04-0 Equivalent Range/Oven Bake Replacement Element, 3,000W / 2,250W @ 240V / 208V

Save 15% Save 15%
Original price $ 32.30
Original price $ 32.30 - Original price $ 32.30
Original price $ 32.30
Current price $ 27.46
$ 27.46 - $ 27.46
Current price $ 27.46
Availability:
Low Stock

Therm Coil Drawing No.: 366R-4091-003      Therm Coil Model No.: TC-5869

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Caloric: 31-063532-04-0

Other: CH5869, 458652, 115799, CH1010, TS1010, TS1010/767, TS5869, TS767, TS767/1010, YCH1010, YCH5869, AP3843827

  • 3000 W / 2250 W @ 240 V / 208 V Rating

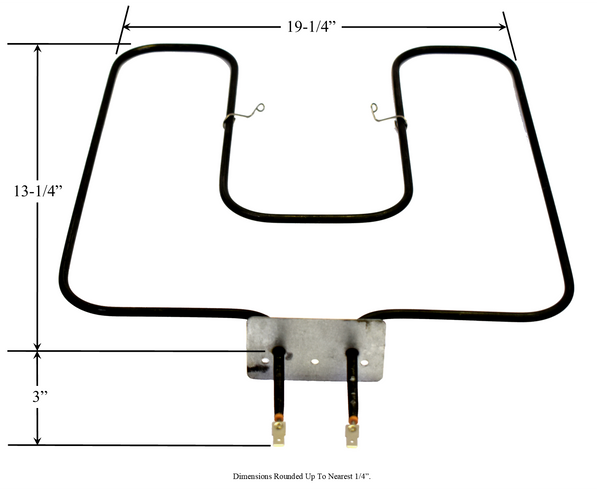

  • Approx. Overall Size: 19-1/4" Width x 13-1/4" Length From Back Of Element To Mounting Brackets x 2-7/8" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Width.

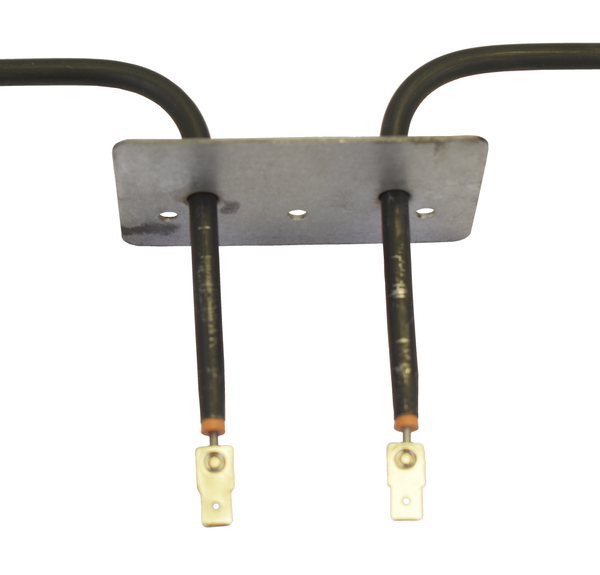

  • Male Quick-Connect Push-In Terminals
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this element will fit your appliance.





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
