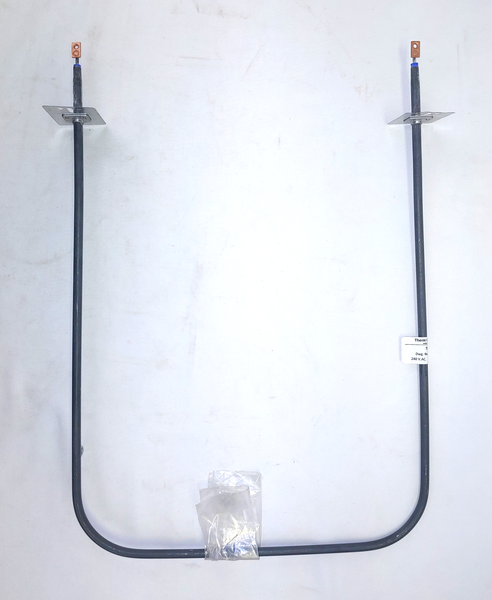

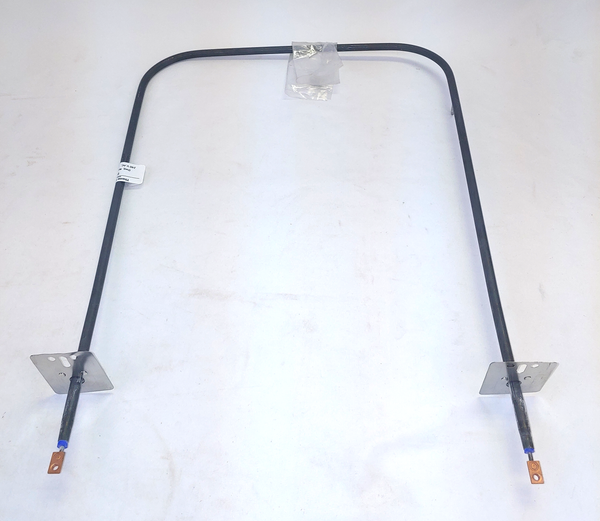

Model TC-587: Whirlpool CH587 Range/Oven Bake Replacement Element, 2,200W @ 240V

Save 15% Save 15%
Original price $ 99.00
Original price $ 99.00 - Original price $ 99.00
Original price $ 99.00
Current price $ 84.15
$ 84.15 - $ 84.15
Current price $ 84.15
Low Stock

Therm Coil Drawing No.: 366R-1587-003      Therm Coil Model No.: TC-587


  • HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Eagle/Preway: 56991

Modern Maid: 74-6-45, 74-6-69

Whirlpool: CH587, 453958

Other: TJ90CH587, RD752, RP587, TS587, YCH587, B003N6O446, AP4502581

  • 2200 W @ 240V Rating
  • Approximate Overall Size: 13" Wide x 15-3/4" Length From Back Of Element To Mounting Bracket x 2-3/4" Insert From Bracket To Terminal Ends.

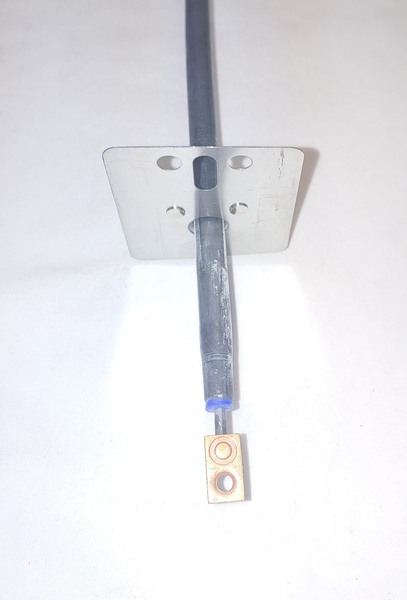

  • Screw-In Terminals
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore,  and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this bake element will fit your appliance.



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
