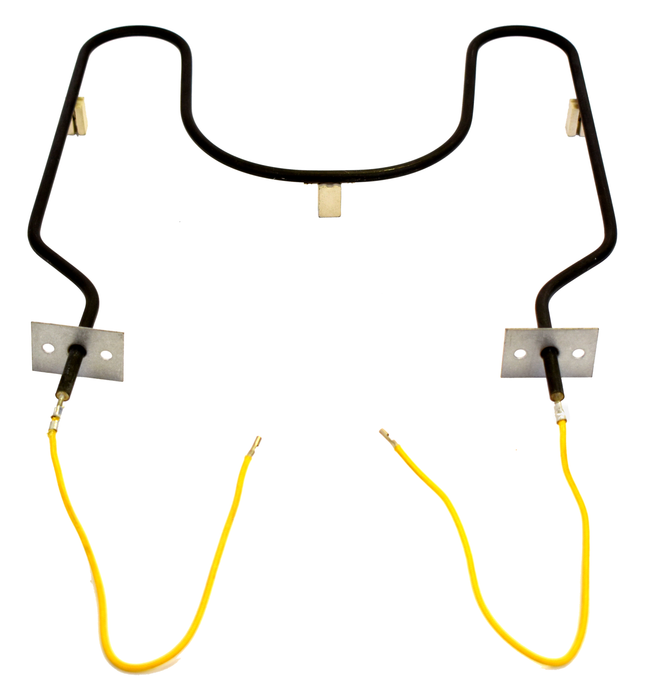

Therm Coil Drawing No.: 366R-4101-003 Therm Coil Model No.: TC-5891
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
- Replacement For Part Numbers:
Caloric: 31-051646-04-0
Whirlpool: CH5891, 440057
Other: AP3389134, 115812
- 1000 W @ 240 V Rating
-

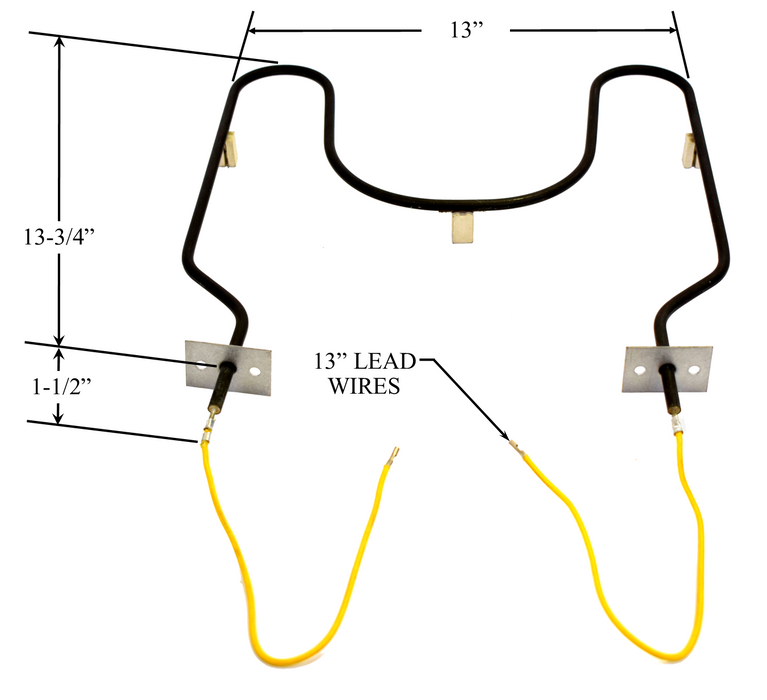

Approx. Overall Size: 13" Width x 13-3/4" Length From Back Of Element To Mounting Brackets x 1-1/2" Insert From Bracket To End Of Element Ends (Before Lead Wires) x 13" Lead Wire Length.
- Lead Wires
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens: Use part numbers and dimensions to determine if this element will fit your appliance.
