Model TC-593: Kenmore 39127 Equivalent Range/Oven Broil Replacement Element, 3,600W @ 240V

Call for Availability
Original price $ 112.25
Original price $ 112.25 - Original price $ 112.25
Original price $ 112.25
Current price $ 95.42
$ 95.42 - $ 95.42
Current price $ 95.42
Call for Availability

Therm Coil Drawing No.: 366R-1593-003      Therm Coil Model No.: TC-593


  • HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Kenmore / Waste King / Whirlpool: 0728184, 0782791, 39127

Other: CH593, 115824, 452103, RP593, TS593, YCH593, B003N6S2YY, AP3389069

  • 3600 W @ 240V Rating

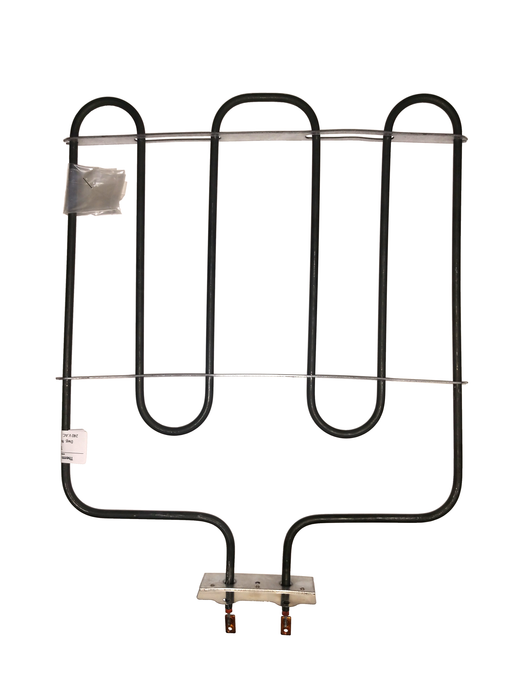

  • Approximate Overall Size: 12-1/2" Wide x 15-3/8" Length From Back Of Element To Mounting Bracket x 1-1/2" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Width.

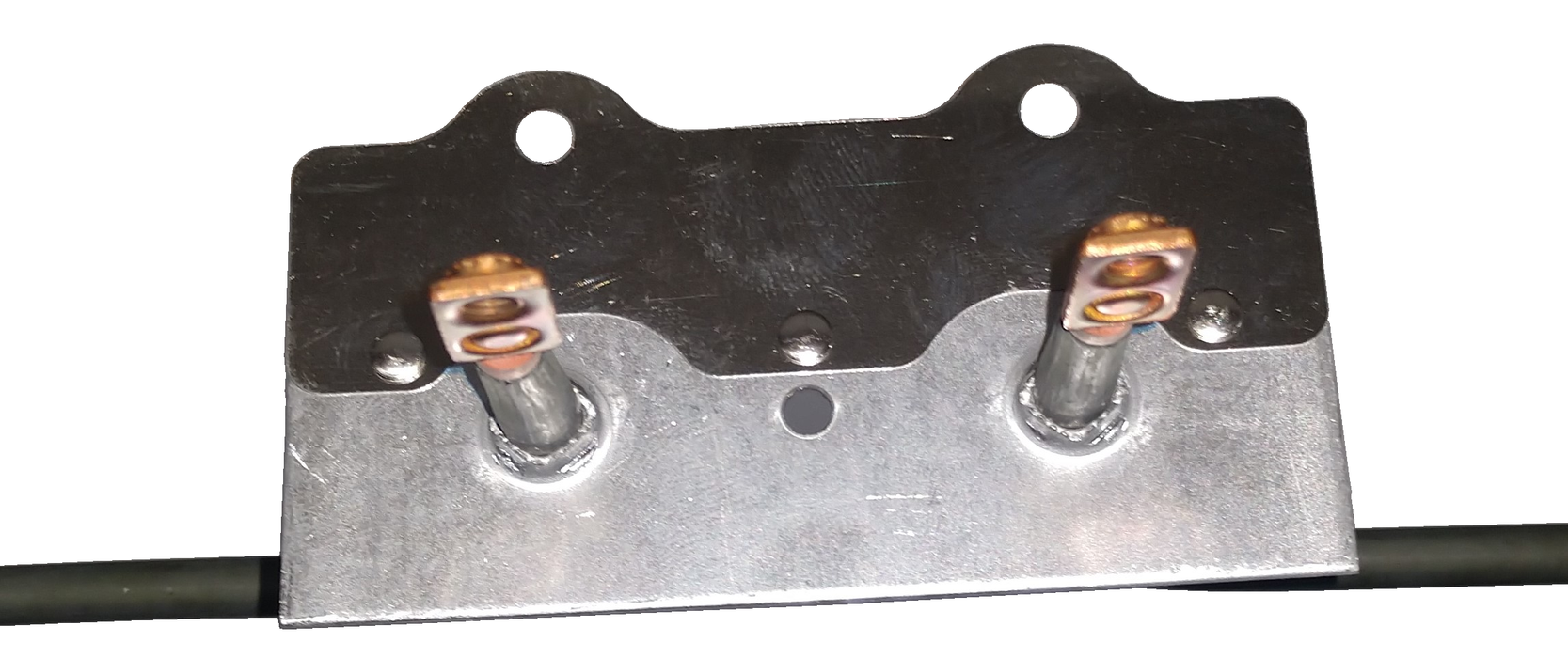

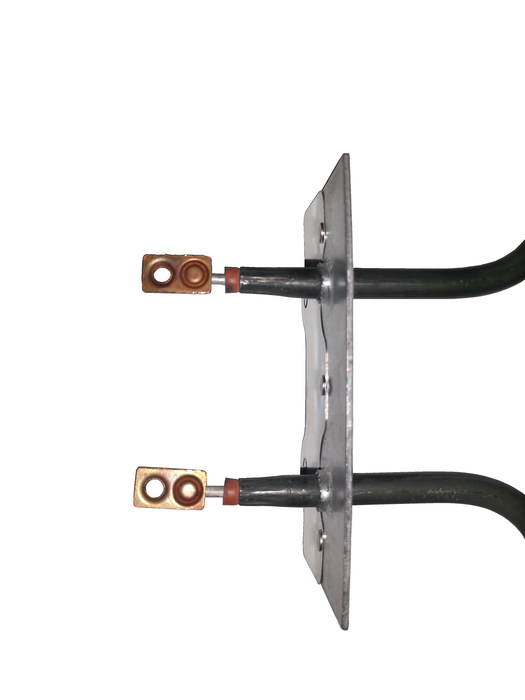

  • Screw-In Terminals
  • Used in various models of Kenmore/Sears, Waste King, Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper,  and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broiling element will fit your appliance.


Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
