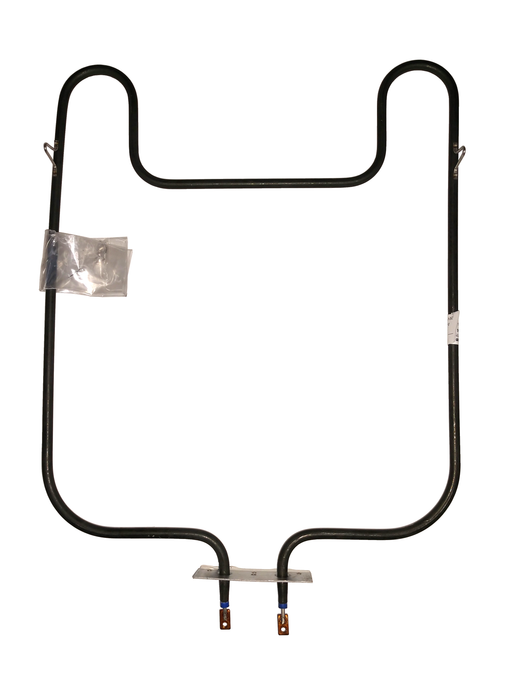

Model TC-594: Waste King 100271 Equivalent Range/Oven Bake Replacement Element, 3,000W @ 250V

Discounted price $ 81.60 List price $ 96.00

Therm Coil Drawing No.: 366R-1594-003      Therm Coil Model No.: TC-594

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Waste King: 100271

Whirlpool: CH594, 454002, 202-873816-001, 873816-001

Other: CH594WPL, RP594, TS594, YCH594, 115825

  • 3000 W @ 250V Rating

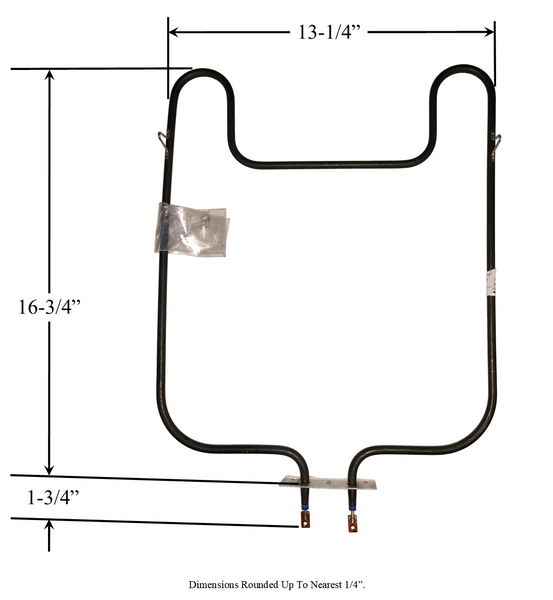

  • Approximate Overall Size: 13-1/4" Wide x 16-3/4" Length From Back Of Element To Mounting Bracket x 1-5/8" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Width.

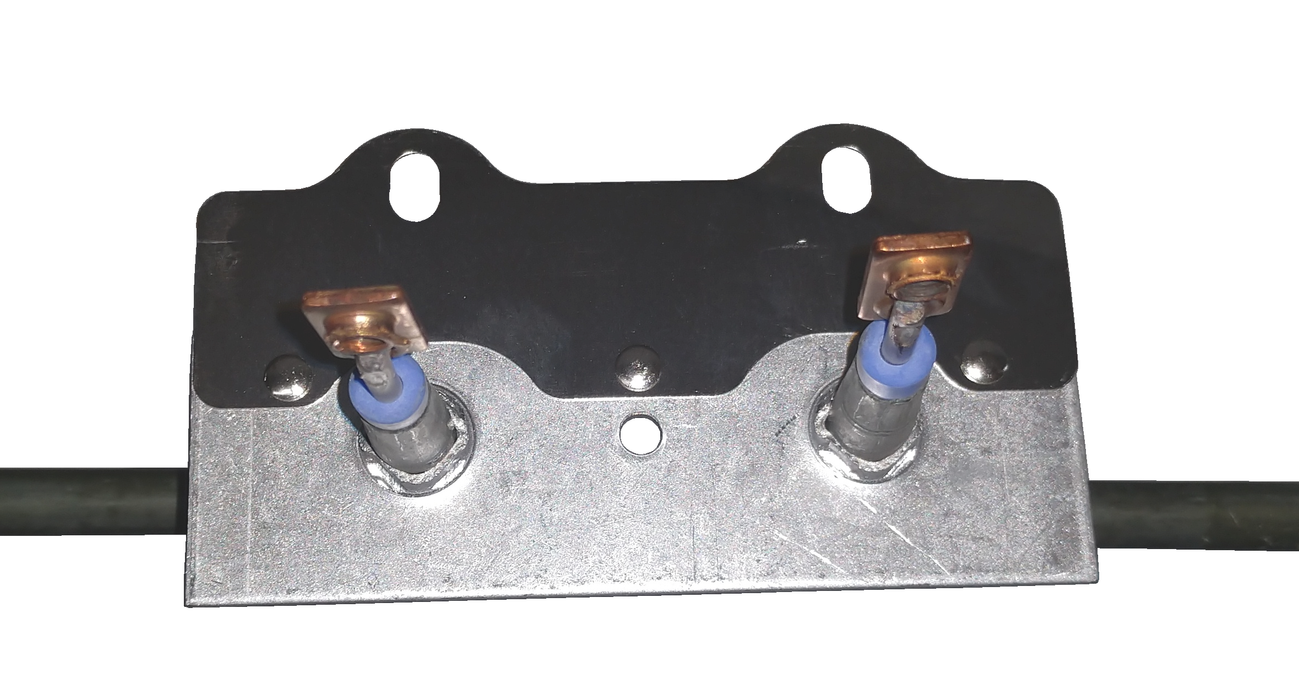

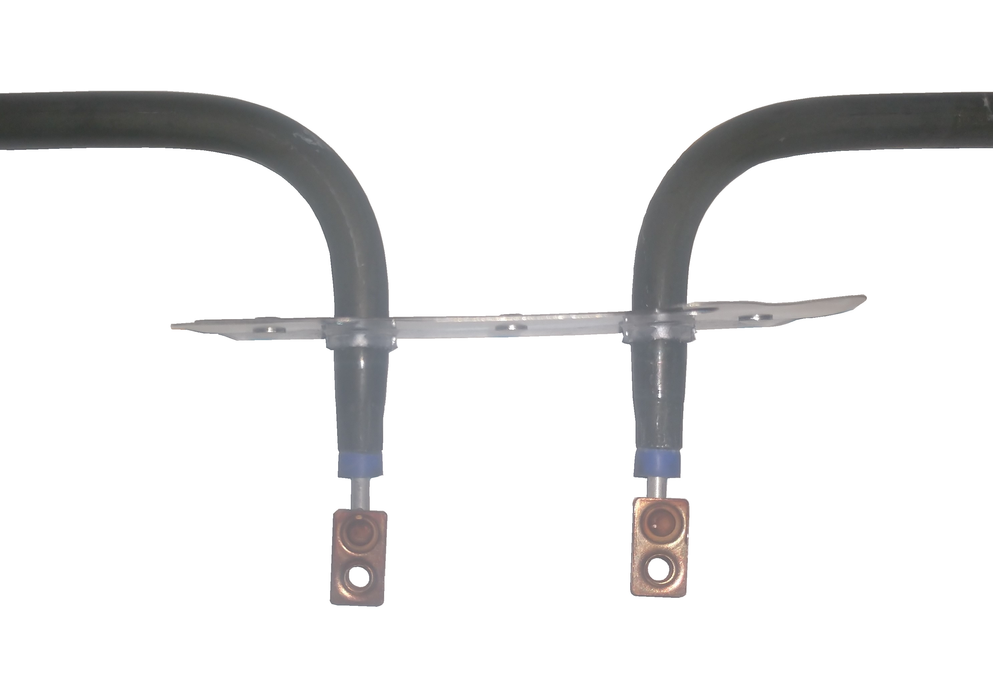

  • Screw-In Terminals
  • Used in various models of Waste King, Kenmore/Sears, Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper,  and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
