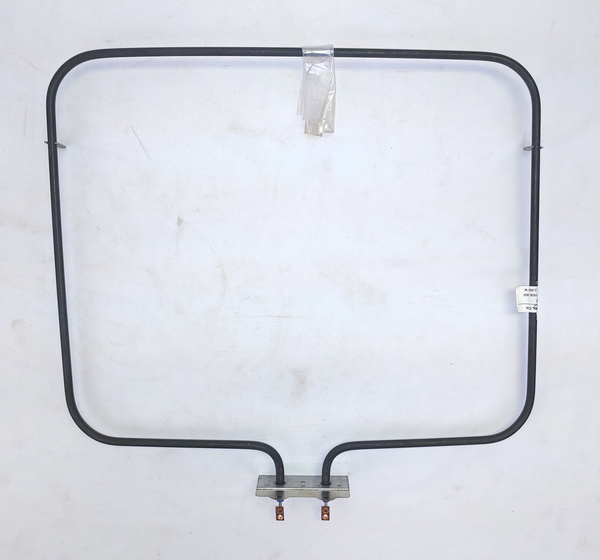

Model TC-807: Whirlpool 263035 Equivalent Range/Oven Bake Replacement Element, 2,400W @ 240V

Discounted price $ 60.18 List price $ 70.80

Therm Coil Drawing No.: 366R-1606-003      Therm Coil Model No.: TC-807


HELPFUL HINT: Use CTRL+F to use the search function for your part number.

  • Replacement For Part Numbers:

Athens (Vesta): P-141-08

Kenmore: 37691, 33351, 34155, 35499, 5321

Whirlpool: 263035

Other: CH807, AP3389152, AP3903895, 115960, 37691, 450589, RP556, RP807, TS807, CH807CHR, P141008, YCH807, AP3087172, AP4848967

  • 2400 W @ 240V Rating
  • Approximate Overall Size: 18-1/4" Wide x 16" Length From Back Of Element To Mounting Bracket x 1-3/8" Insert From Bracket To Terminal Ends x 1-3/4" Center-to-Center Terminal Width.

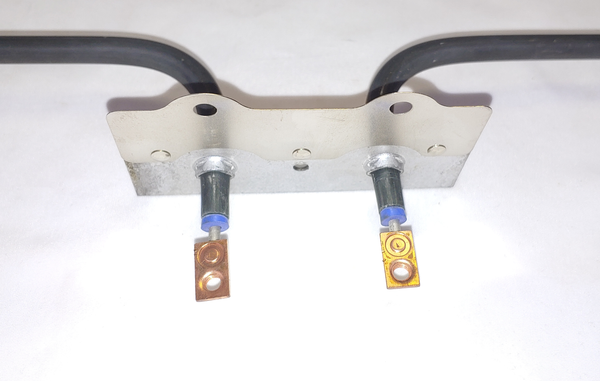

  • Screw-In Terminals
  • Used in various models of Whirlpool, Kenmore/Sears, Athens, Vesta, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper,  and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.


Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
