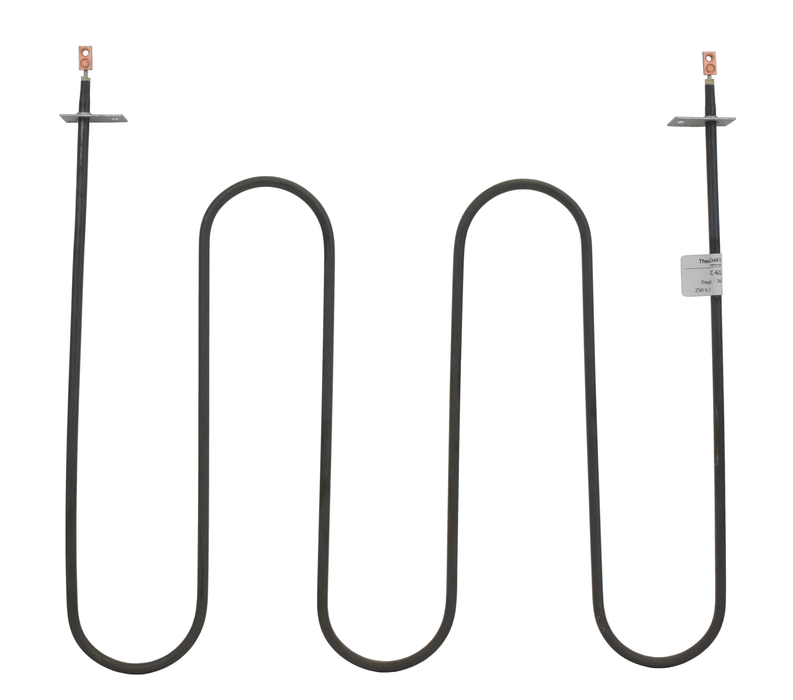

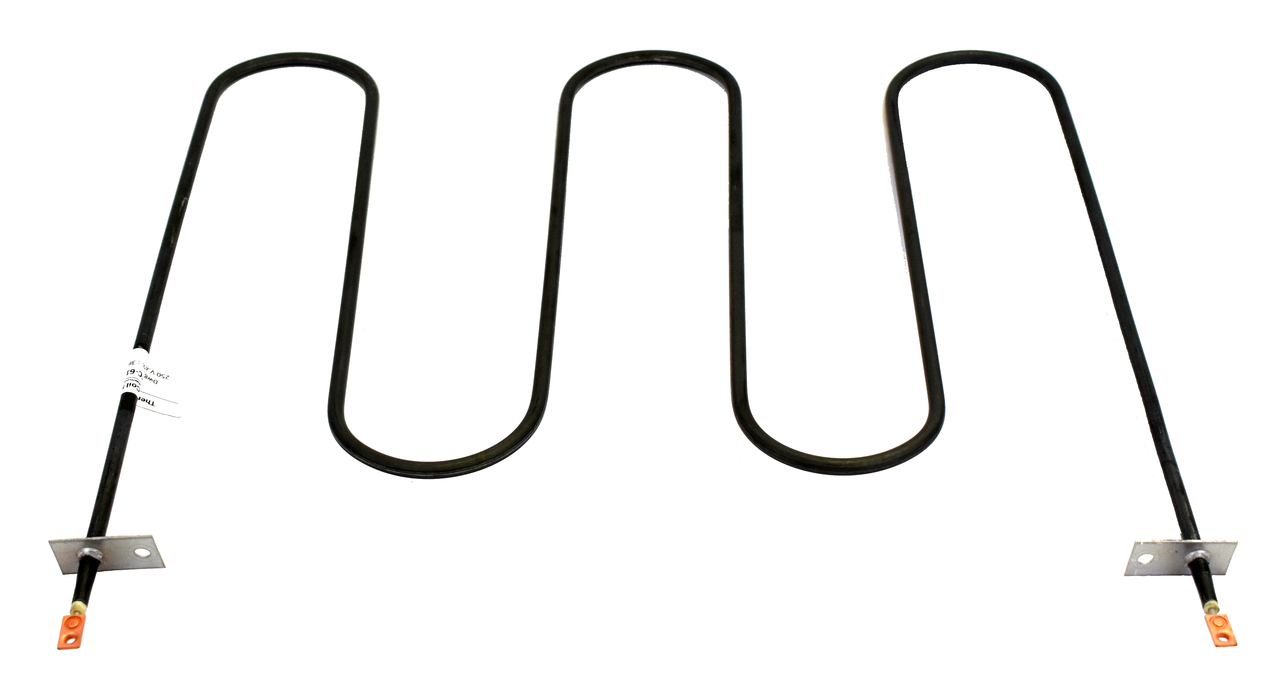

Therm Coil Drawing No.: 366R-1612-003 Therm Coil Model No.: TC-612
DescriptionHELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
Replacement For Part Numbers:
Tappan: 220T001P01, 400-233-3
Whirlpool: CH612, 451821
Other: RP612, TS612, AP3212678, AP3389137, 115838
- 3000 W @ 250 V Rating

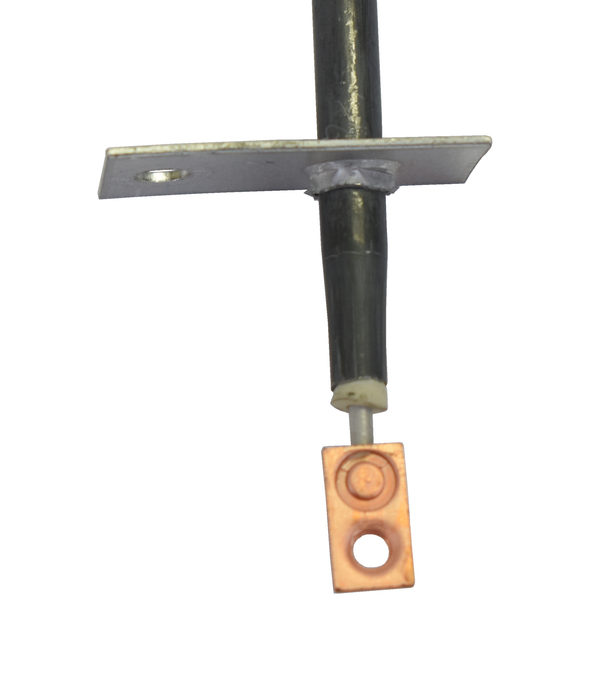

- Threaded Screw-In Terminals

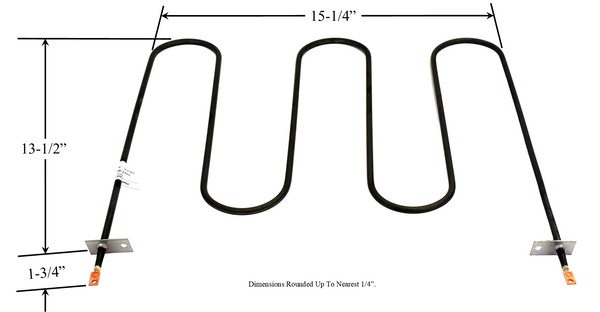

- Approx. Overall Size: 15-1/4" Width x 13-3/8" Length From Back Of Element To Mounting Brackets x 1-3/4" Insert From Bracket To Terminal Ends.
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed. If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.
