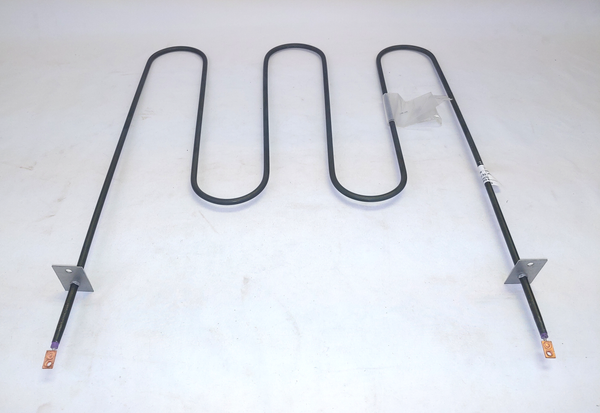

Model TC-638: Magic Chef 1938301 Equivalent Range/Oven Broil Replacement Element, 3,200W @ 250V

Discounted price $ 73.36 List price $ 86.30

Therm Coil Drawing No.: 366R-1638-003      Therm Coil Model No.:TC-638


HELPFUL HINT: Use CTRL+F to use the search function for your element part number:
  • Replacement For Part Numbers:

Magic Chef / Whirlpool: 1938301, 1938-263, 1938-301, 1938255, 1938260, 1938263

Other: 106-580M, CH638, 453165, RP638, TS638, YCH638, AP239539, AP3389564

  • 3200 W @ 250 V

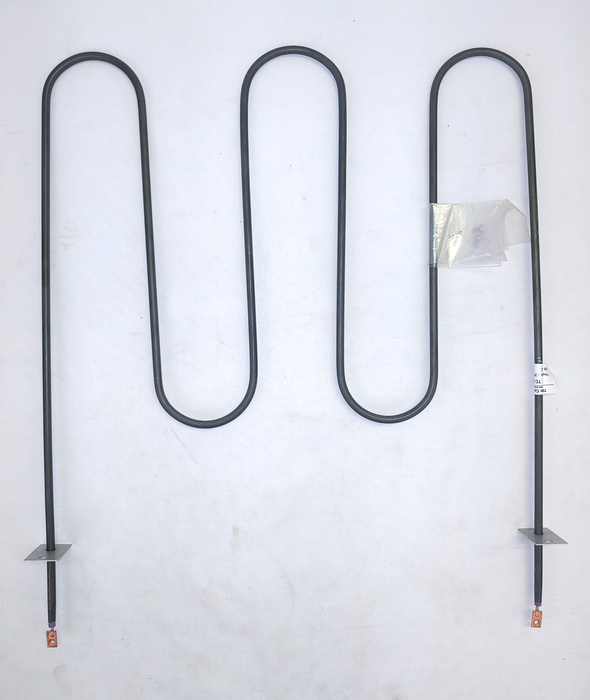

  • Approximate Overall Size:  15-1/4" Wide x 16" From Back Of Element To Bracket x 3" Insert (Bracket To Terminal End)

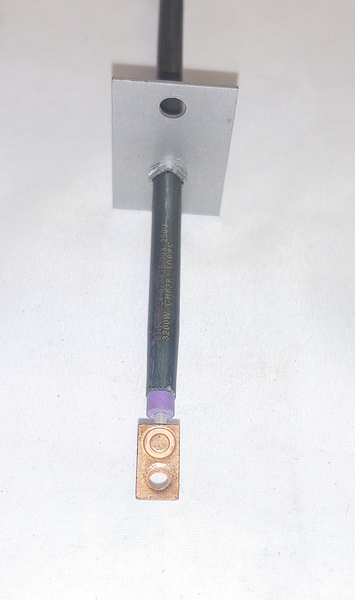

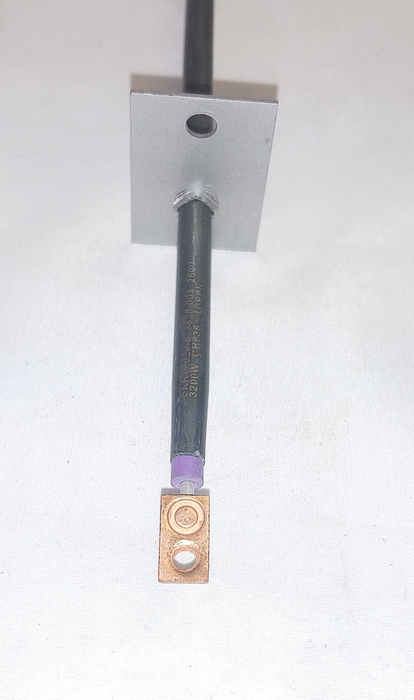

  • Screw-In Terminals
  • Used in various models of Magic Chef, Electrolux, Frigidaire, Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Admiral, Norge, RoperSears / Kenmore, and othersIf your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broil element will fit your appliance.

     HELPFUL HINT: Use CTRL+F to use the search function for your appliance model number:

    • Compatible With Appliance Model Numbers:

    28FA-6CXWV8, 28FA-6CXWV8-94, 28FA-6CXWV8-DZ, 28FK-6CXWV8, 28FK-6CXWV8-94, 28FK-6CXWV8-DZ, 28FN-6CXWV8, 28FN-6CXWV8-94, 28FN-6CXWV8-DZ, 28FS-6CXWV8, 28FS-6CXWV8-94, 28FS-6CXWV8-DZ, 28FY-6CXWV8, 28FY-6CXWV8-94, 28FY-6CXWV8-DZ


    Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any of their affiliates.
