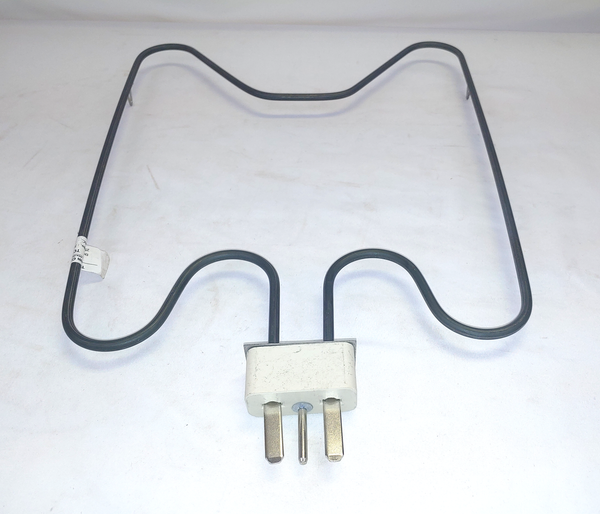

Model TC-651: Frigidaire 5300210961 (No Support Bracket) Equivalent Range/Oven Bake Replacement Element, 2,500W @ 250V

Discounted price $ 89.25 List price $ 105.00

Therm Coil Drawing No.: 366R-1651-003      Therm Coil Model No.: TC-651

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Frigidaire / Electrolux: 5300210961

Westinghouse: Q000026090 (Q26090), Q000026092 (Q26092), Q000026098 (Q26098), Q000026101 (Q26101), Q000026102 (Q26102), Q000026105 (Q26105), Q000026135 (Q26135), Q000026136 (Q26136), Q000026139 (Q26139), Q000026140 (Q26140), Q000026141 (Q26141), Q000026142 (Q26142), Q000026143 (Q26143), Q000026144 (Q26144), Q000210961 (Q210961)

Other: 2548,CH651, B00OZMQBMU, 115870, 14001046, 451400, F83-476, RP651, TS651, YCH651, AH450670, EA450670, PS450670, AP2557845, AP3389532

  • 2500 W @ 250V Rating

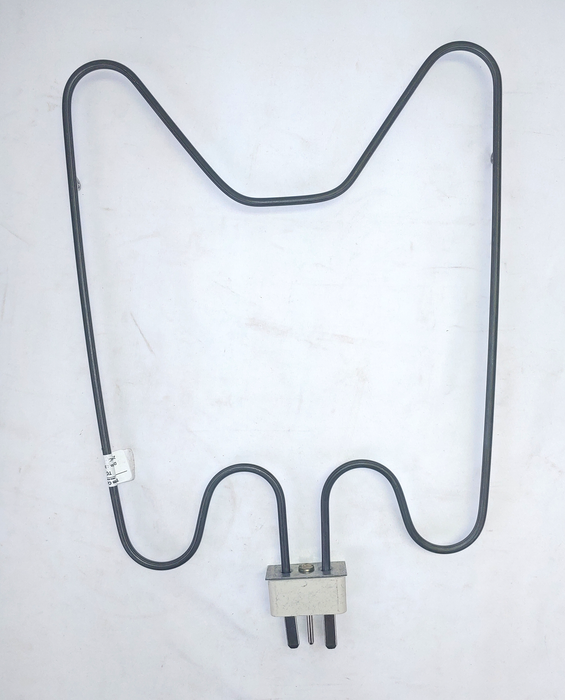

  • Approximate Overall Size: 13-1/2" Wide x 16" Length From Back Of Element To Mounting Bracket x 2-7/16" Insert From Bracket To Terminal Ends x 1-1/4" Center-to-Center Terminal Width.

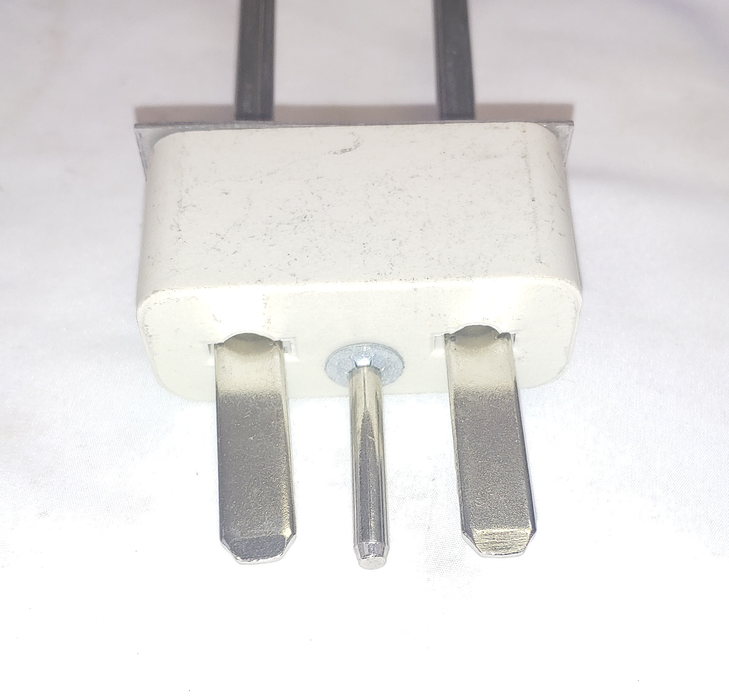

  • Two Prong Terminals (Flat Blade) With Ground (Round Pin)
  • Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Sears / Kenmore, and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this bake element will fit your appliance.



Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
