Model TC-646: Frigidaire / Westinghouse 5300210922 Equivalent Range/Oven Broil Replacement Element, 2,800W @ 250V

Save 15% Save 15%
Original price $ 86.50
Original price $ 86.50 - Original price $ 86.50
Original price $ 86.50
Current price $ 73.53
$ 73.53 - $ 73.53
Current price $ 73.53
Availability:
2 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-1646-003      Therm Coil Model No.: TC-646

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Frigidaire / Westinghouse: 5300210922, Q000025971, Q000025974, Q000025981, Q000025986, Q000025999, Q000026000, Q000026003, Q000026005, Q000026010, Q000026011, Q000026015, Q000026016, Q000026018, Q000026019, Q000026020, Q000026021, Q000083571, Q000083573, Q000083579, Q000083580, Q0000835880, Q000138053, Q000210922, Q25971, Q25974, Q25981, Q25986, Q25999, Q26000, Q26003, Q26005, Q26010, Q26011, Q26015, Q26016, Q26018, Q26019, Q26020, Q26021, Q83571, Q83573, Q83579, Q83580, Q83880, Q138053



Other: CH646, 115866, 453501, RP646, TS646, YCH646, 609530, AP3389491, AP3142138

  • 2800 W @ 250 V

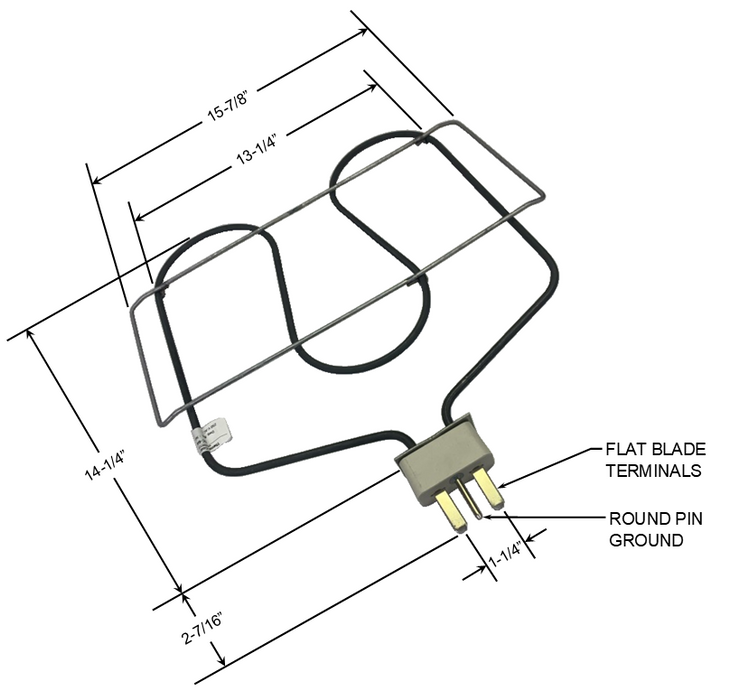

  • Approx. Overall Size: 13-1/4" Element Width / 15-7/8" Bracket Width x 14-1/4" Length From Back Of Element To Mounting Brackets x 2-7/16" Insert From Bracket To Terminal Ends x 1-1/4" Terminal-to-Terminal Width.

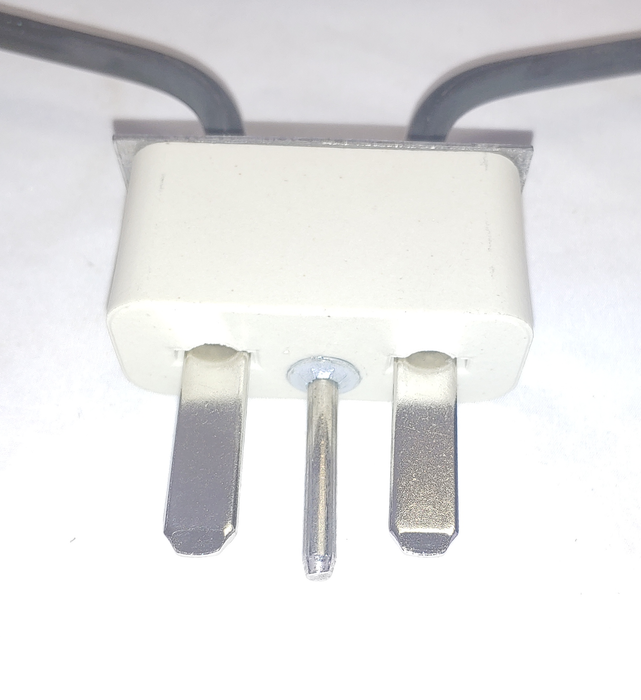

  • Flat Blade Terminals With Round Ground Pin
  • Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse Kenmore/Sears, and other Ranges And/Or Ovens:   Use part numbers and dimensions to determine if this bake element will fit your appliance.





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
