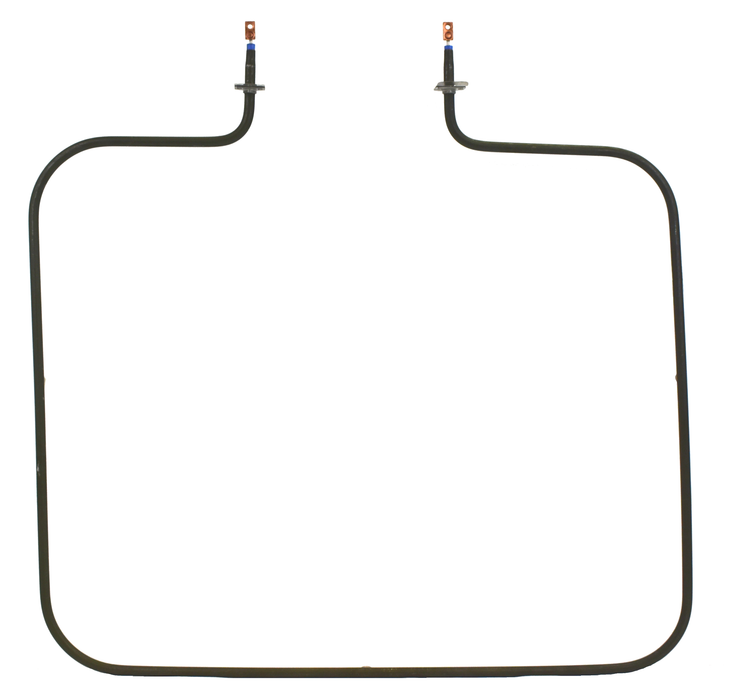

Model TC-654: Frigidaire / Tappan 5303207158 Equivalent Range/Oven Bake Replacement Element, 3,000W @ 250V

Discounted price $ 60.35 List price $ 71.00

Therm Coil Drawing No.: 366R-1654-003      Therm Coil Model No.: TC-654

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Electrolux / Frigidaire / Tappan: 5303207158, 221T001D01, 221T002D01, 221T004P11, 221T004P12, 221T004P13, 221T004P14, 221T008P01, 221T008P02, 221T011P02, 221T011P03, 221T011P03-L, 221T011P10, 355T085S01, 355T086S01, 355T267S01, 617978, 85-233-21S, 85-233-52, 8523321S, 8523352

Other: CH654, 451004, AP3389142, AP2591946, 115875, RP654, TS654, YCH654, B00P0FEZ0G

  • 3000 W @ 250V Rating
  • Approximate Overall Size: 20" Wide x 17-5/8" Length From Back Of Element To Mounting Bracket x 2" Insert From Bracket To Terminal Ends x 6" Center-to-Center Terminal Width.

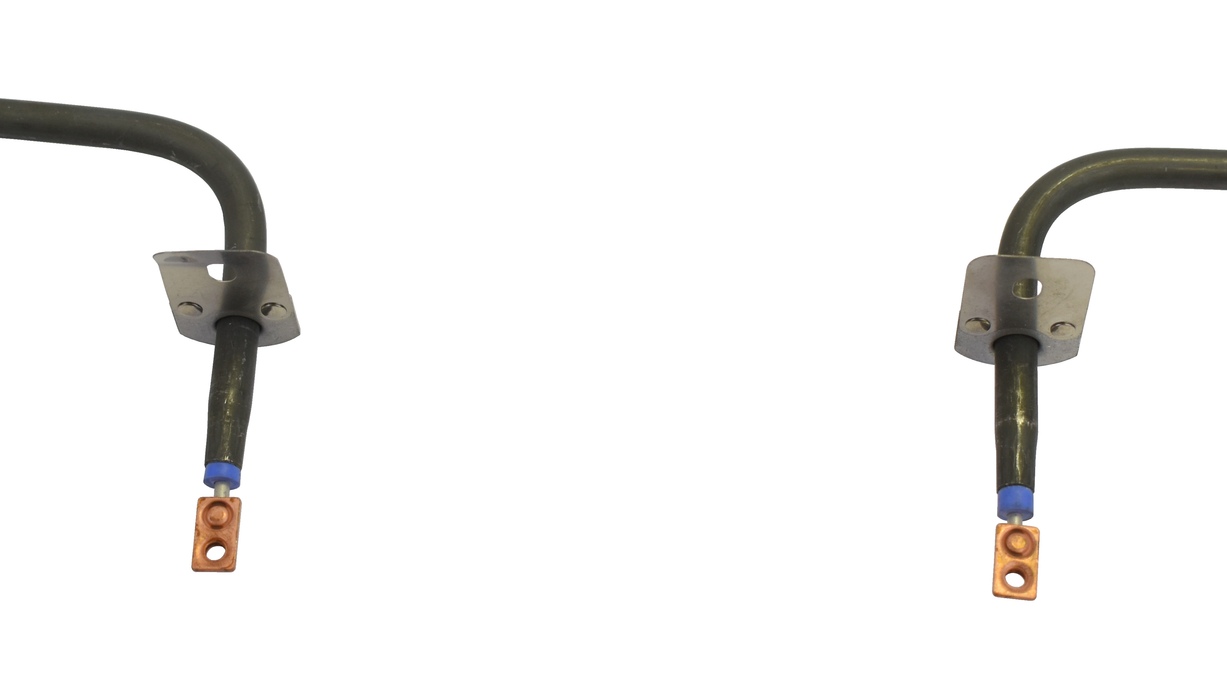

  • Screw-In Terminals
  • Used in various models of  Frigidaire brands including Tappan, Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Sears / Kenmore,  and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this bake element will fit your appliance.

 HELPFUL HINT: Use CTRL+F to use the search function for your appliance model number.

  • Fits The Following Frigidaire / Tappan Model Numbers:
37-1042-23-01, 37-1272-23-01, 37-1012-23-01, 37-1012-57-01, 37-1012-66-01, 37-1015-00-01, 37-1022-00-01, 37-1022-57-01, 37-1022-66-01, 37-1042-00-01, AS139K1K1





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
