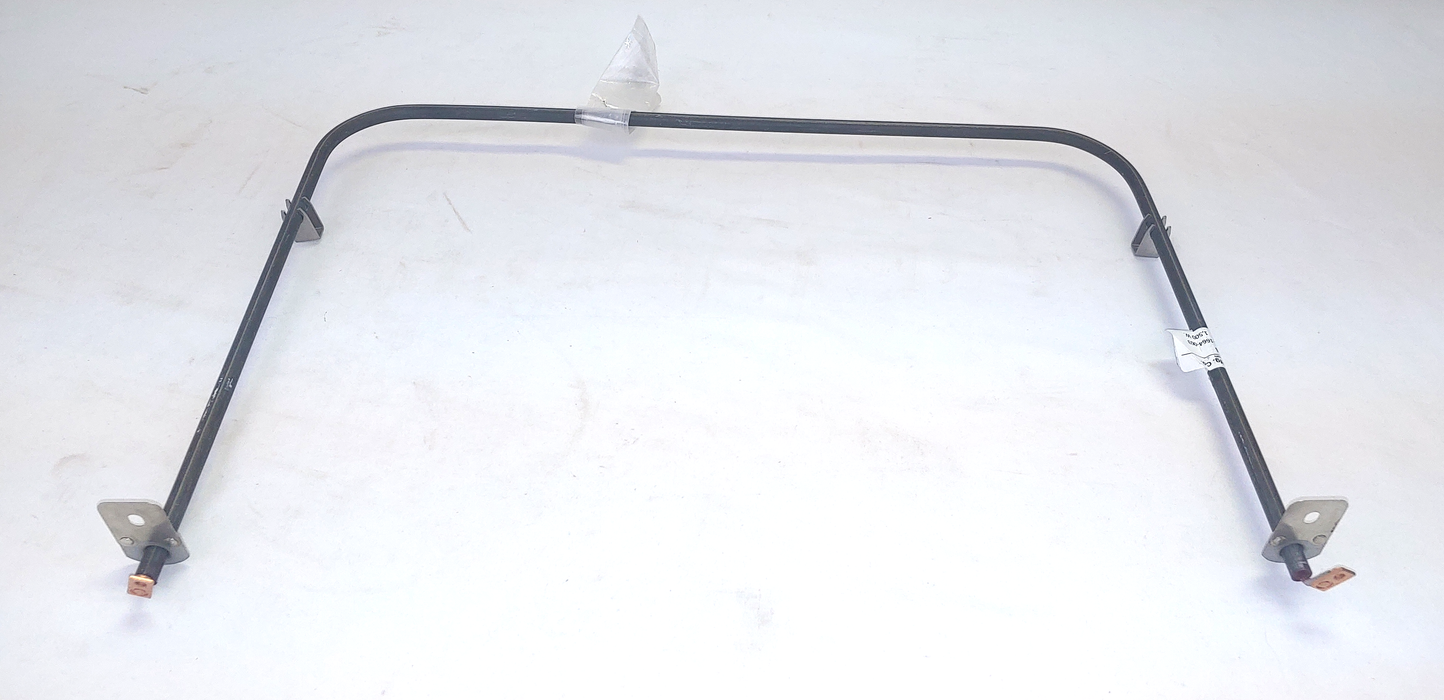

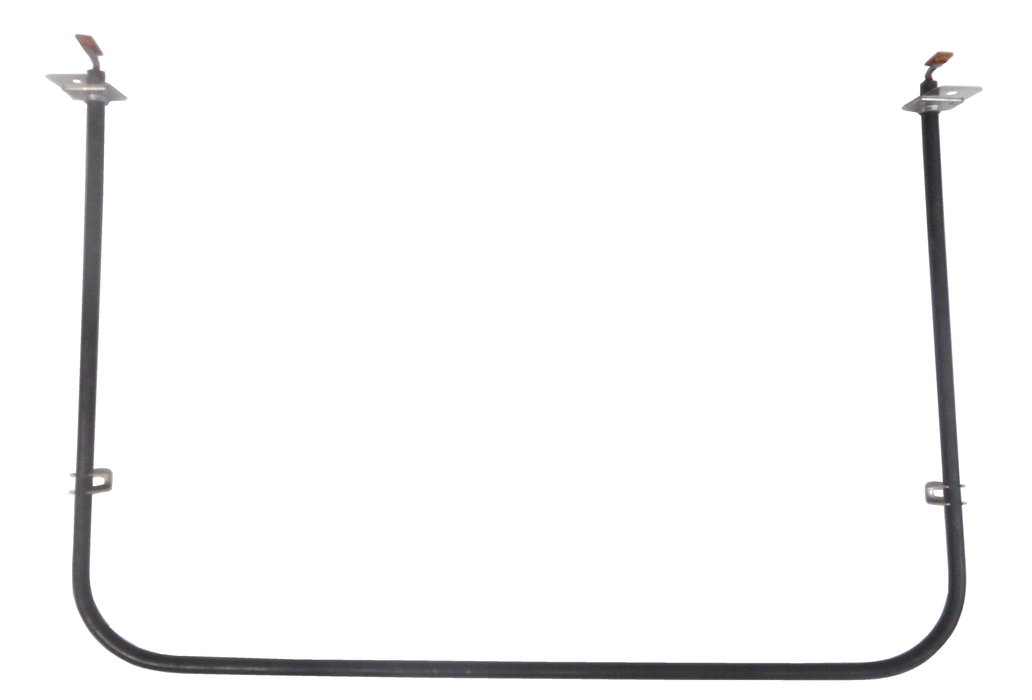

Model TC-664: Frigidaire 5303207157/ Tappan 221T010P01 Range/Oven Bake Replacement Element, 1,500W @ 250V

Discounted price $ 68.09 List price $ 80.10

Therm Coil Drawing No.: 366R-1664-003            Therm Coil Model No.:TC-664

Description

  • Replacement For Part Numbers:

Frigidaire / Tappan: 5303207157, 221T010P01, 221T010P05, 221T010P07

Tappan: 221T010P01, 221T010P05, 221T010P07

Whirlpool: CH664, 453245

Other: TJ90CH664, AP2591949, AP4502592, 42523, 617977, RP664, TS664, YCH664, F83-465

    • 1500 W @ 250 V Rating

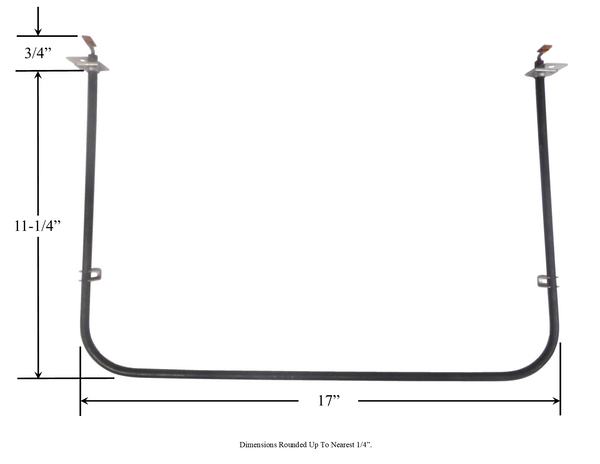

    • Approximate Overall Size: 17" Width x 11-1/8" Length Back To Mounting Brackets x 3/4" Insert Length (Bracket To Terminal End).

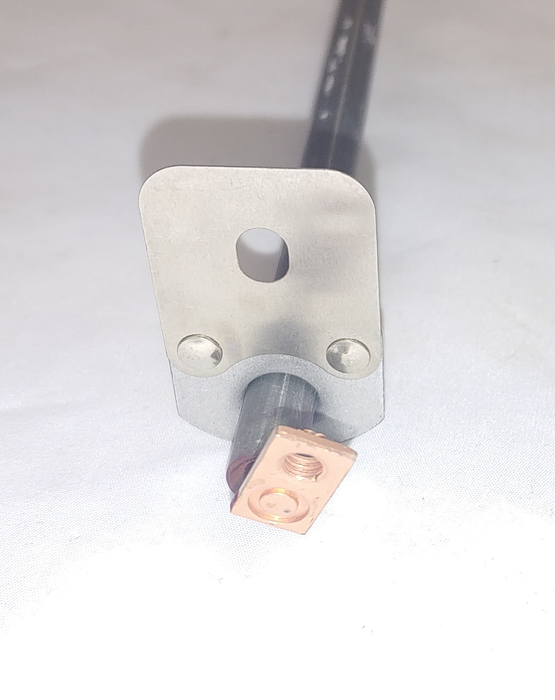

    • #10-32 Lug Terminals
    • Used in various models of Frigidaire, Tappan, Electrolux, Gibson, Kelvinator, Westinghouse, and Sears / Kenmore If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this bake element will fit your appliance.



        Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any of their affiliates.
