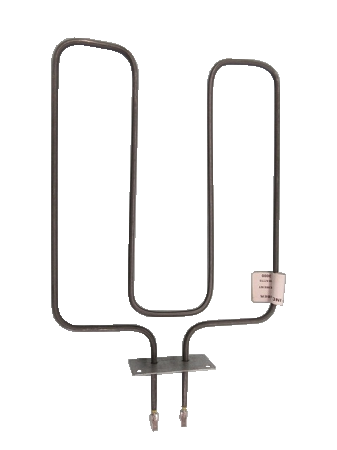

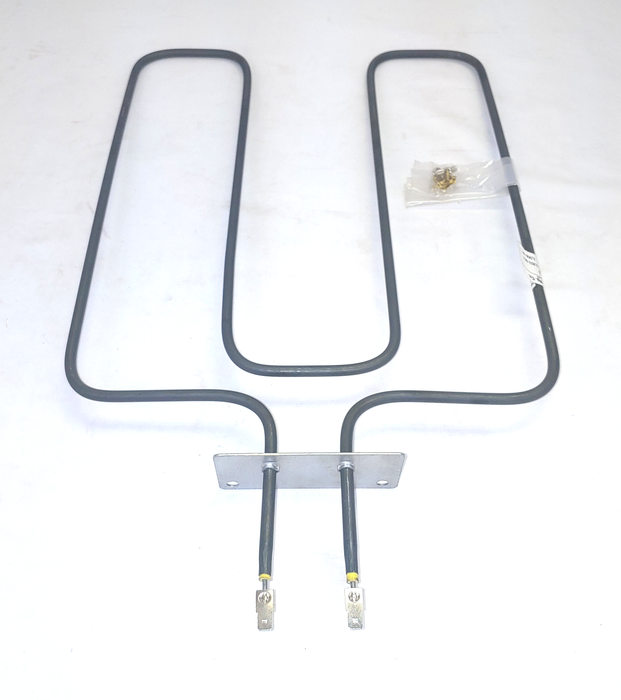

Model TC-671: Admiral 424413 / CH671 Equivalent Range/Oven Broil Replacement Element, 3,000W @ 250V

Save 15% Save 15%
Original price $ 75.00
Original price $ 75.00 - Original price $ 75.00
Original price $ 75.00
Current price $ 63.75
$ 63.75 - $ 63.75
Current price $ 63.75
Availability:
2 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-1302-003            Therm Coil Model No.: TC-671

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.
    • Replacement For Part Numbers:

    Admiral: 424413

    Other: TJ90CH671, CH671, 42413, 453270, RP671, RP690, TS671, TS690, Y0043837, Y0043845, Y0047073, Y0050506, YCH671, AP4502593

    • 3000W @ 250V Rating

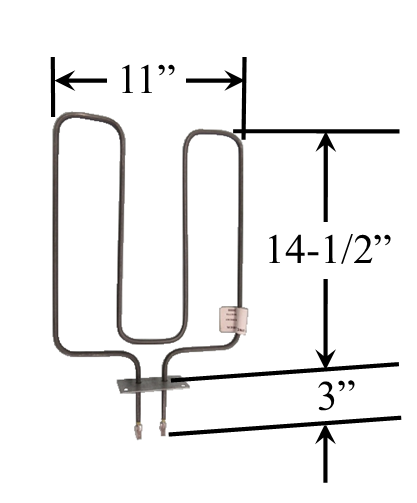

    • Approximate Overall Size: 11" Width x 14-1/2" Back Of Element To Mounting Brackets x 3" Insert (Brackets to Terminal End) x 1-1/2" Center-to-Center Terminal Width.

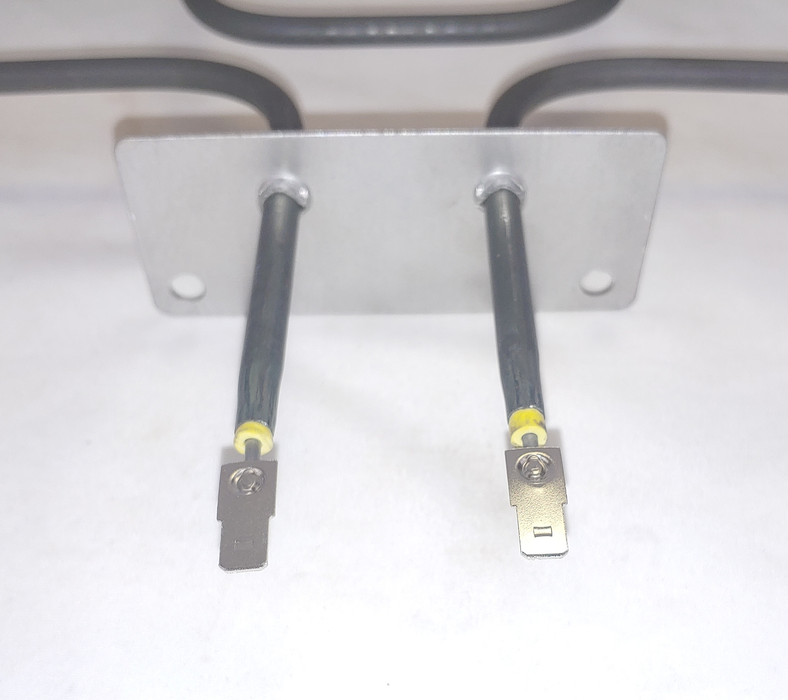

    • Male 1/4" Quick-Connect Push-In Terminals with Detent
    • Broil Element Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Sears / Kenmore,  and other Ranges And/Or Ovens:  Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.







    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
