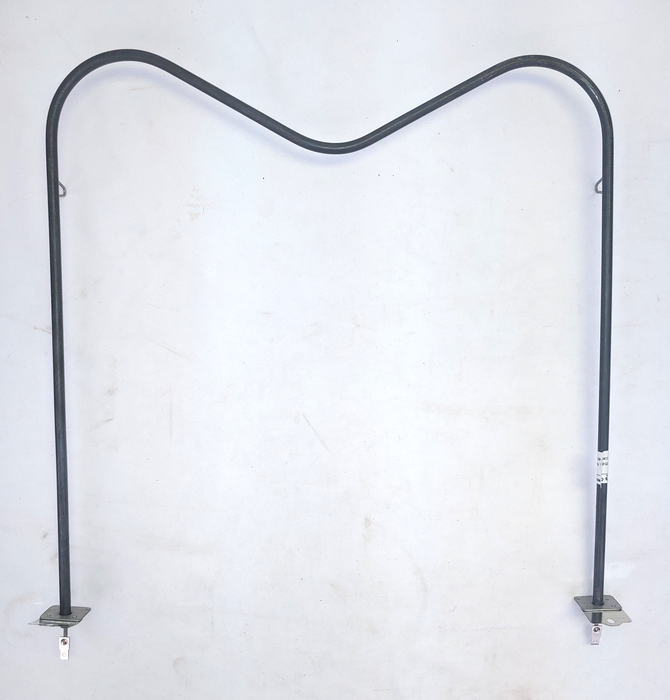

Model TC-672: Whirlpool 12500109 Equivalent Range/Oven Bake Replacement Element, 2,400W @ 250V

Call for Availability
Original price $ 100.00
Original price $ 100.00 - Original price $ 100.00
Original price $ 100.00
Current price $ 85.00
$ 85.00 - $ 85.00
Current price $ 85.00
Availability:
Call for Availability

Therm Coil Drawing No.: 366R-1672-003      Therm Coil Model No.: TC-672

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Whirlpool 12500109, 10-9107, Chromalox CH672, Magic Chef West 332-175, 332-191, 332-192, 332-201, 332-202, 332-203, 332-204, 332-5, Monarch R01-08041, TJ90CH672, 455857, CH672, RP672, TS672, YCH672, B004Q46W8U, B003N6TLEY, 115891, AP4013212, AP4502594, ps406984, SE672

  • 2400 W @ 250V Rating
  • Approximate Overall Size: 16" Wide x 16-3/8" Length From Back Of Element To Mounting Bracket x 1-1/4" Insert From Bracket To Terminal Ends

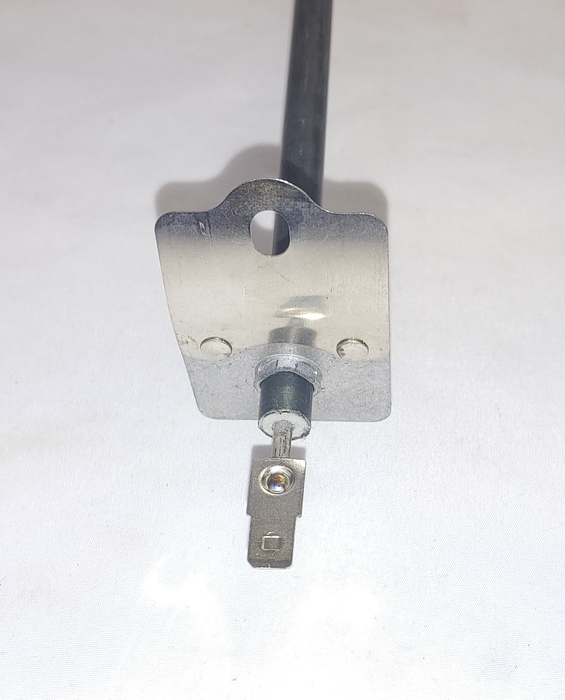

  • Push-In 1/4" Male Quick Connect Terminals (Includes Right-angle Adapters)
  • Used in various models of  Whirlpool brands including Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore,  and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this bake element will fit your appliance.





Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
