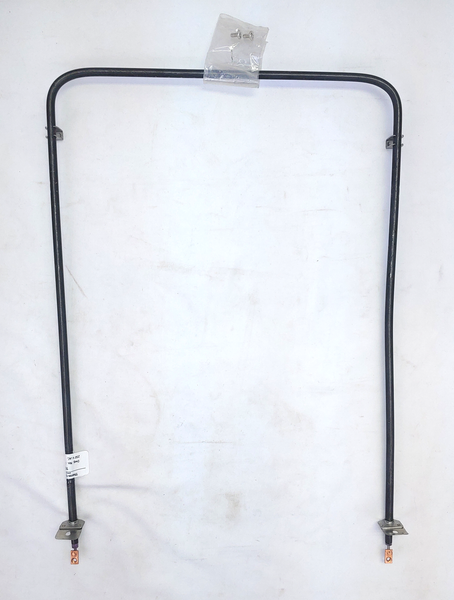

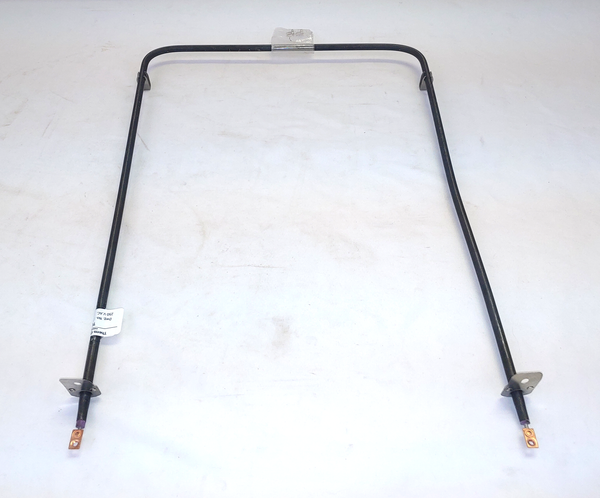

Therm Coil Drawing No.: 366R-1691-003 Therm Coil Model No.: TC-691
DescriptionHELPFUL HINT: Use CTRL+F to use the search function for your part number.
- Replacement For Part Numbers:
Tappan 221T004P07, CH691, TJ90CH691, 453288, RP691, TS691, YCH691, B003N6QB7O, AP4502598
- 2200 W @ 250V Rating
- Approximate Overall Size: 13-5/8" Wide x 17-5/8" Length From Back Of Element To Mounting Bracket x 1-3/4" Insert From Bracket To Terminal Ends

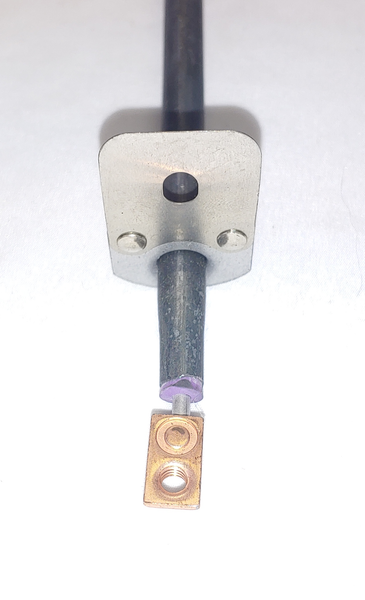

- Screw-In Terminals
- Used in various models of Whirlpool brands including Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens: If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this bake element will fit your appliance.
