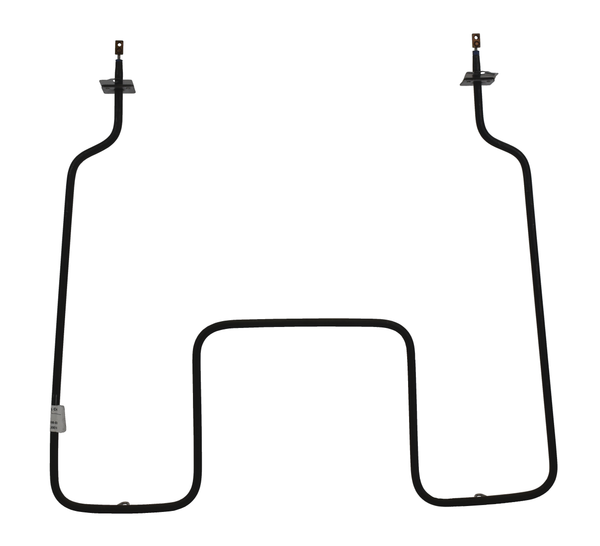

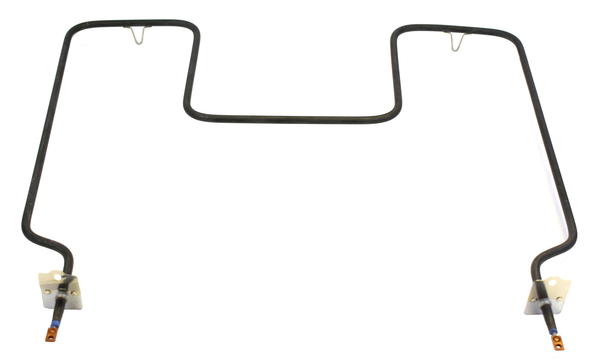

Therm Coil Drawing No.: 366R-1698-003 Therm Coil Model No.: TC-698
DescriptionHELPFUL HINT: Use CTRL+F to use the search function for your part number.
- Replacement For Part Numbers:
Hardwick / Whirlpool: OE-001-031-00, OE-001-031-99
Monarch: Replaces Various Models
Other: CH698, 115935, 453317, RP698, TS698, YCH698, AP3389495
- 3000 W @ 250V Rating

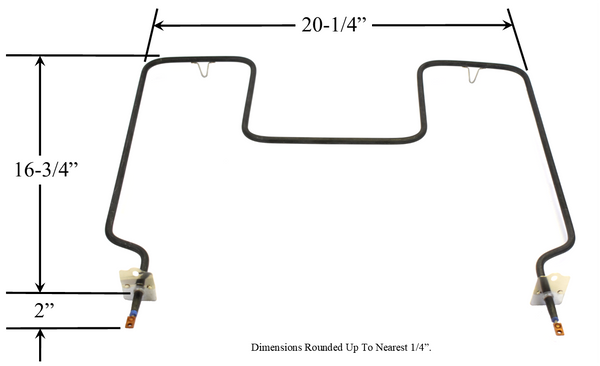

- Approximate Overall Size: 20-1/4" Wide x 16-5/8" Length From Back Of Element To Mounting Bracket x 2" Insert From Bracket To Terminal Ends x 16-1/4" Terminal-to-Terminal (Due to the flexible nature of this element, this dimension may fluctuate ±1" but may be easily restored during installation.)

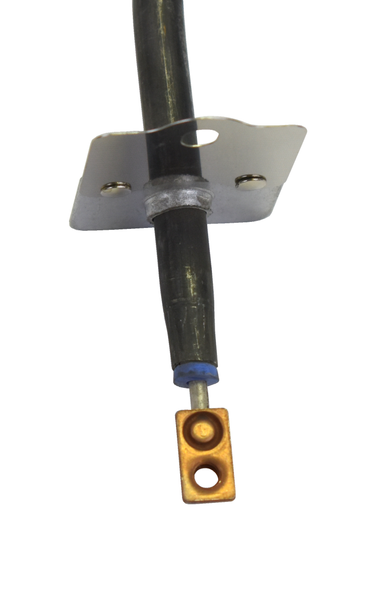

- Push-In 1/4" Male Quick Connect Terminals
- Used in various models of Whirlpool brands including Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens: If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this bake element will fit your appliance.
