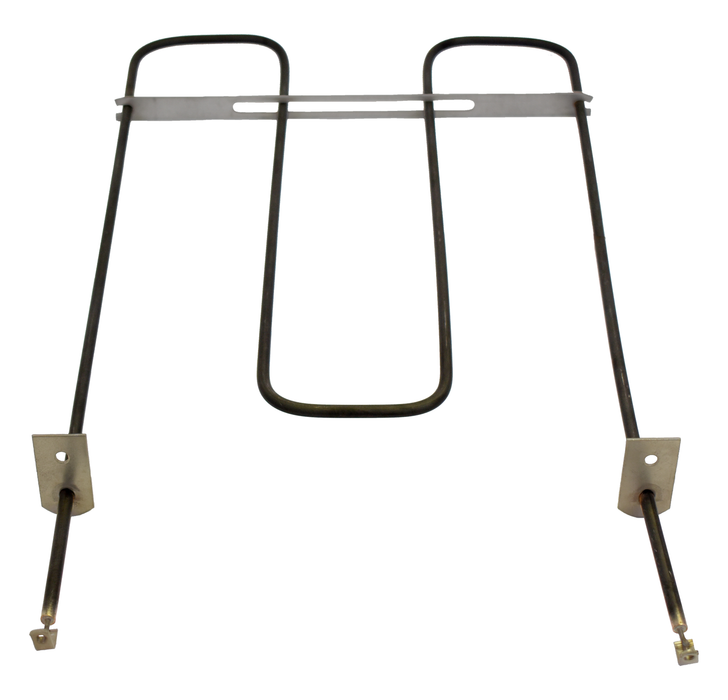

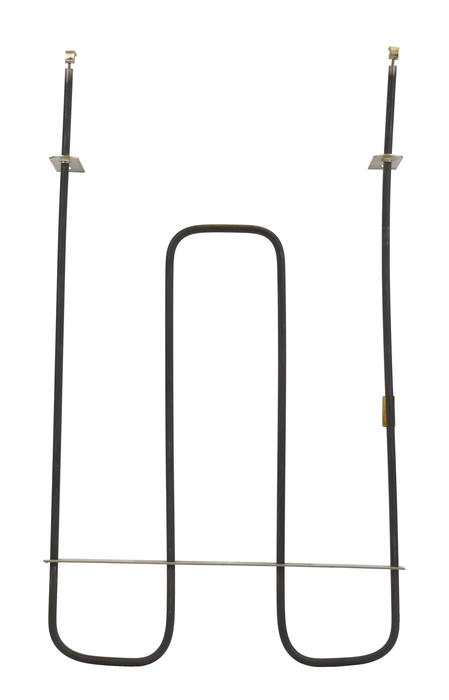

Therm Coil Drawing No.: 366R-1706-003 Therm Coil Model No.: TC-706
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
- Replacement For Part Numbers:
Enterprise: 150515, 150516, 150519
Whirlpool: CH3887, 454301
Other: TS674, TS706, YCH3887, AP3086905, AP3843817, 115575
- 2700 W @ 240 V Rating

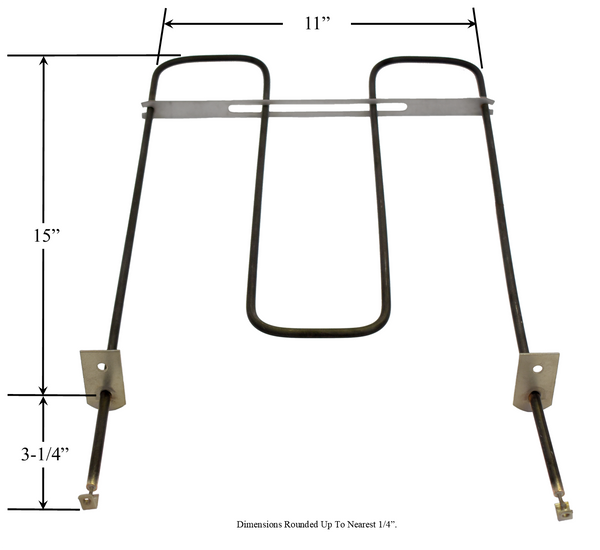

- Approx. Overall Size: 11" Width x 15" Length From Back Of Element To Mounting Brackets x 3-1/8" Insert From Bracket To Terminal Ends.

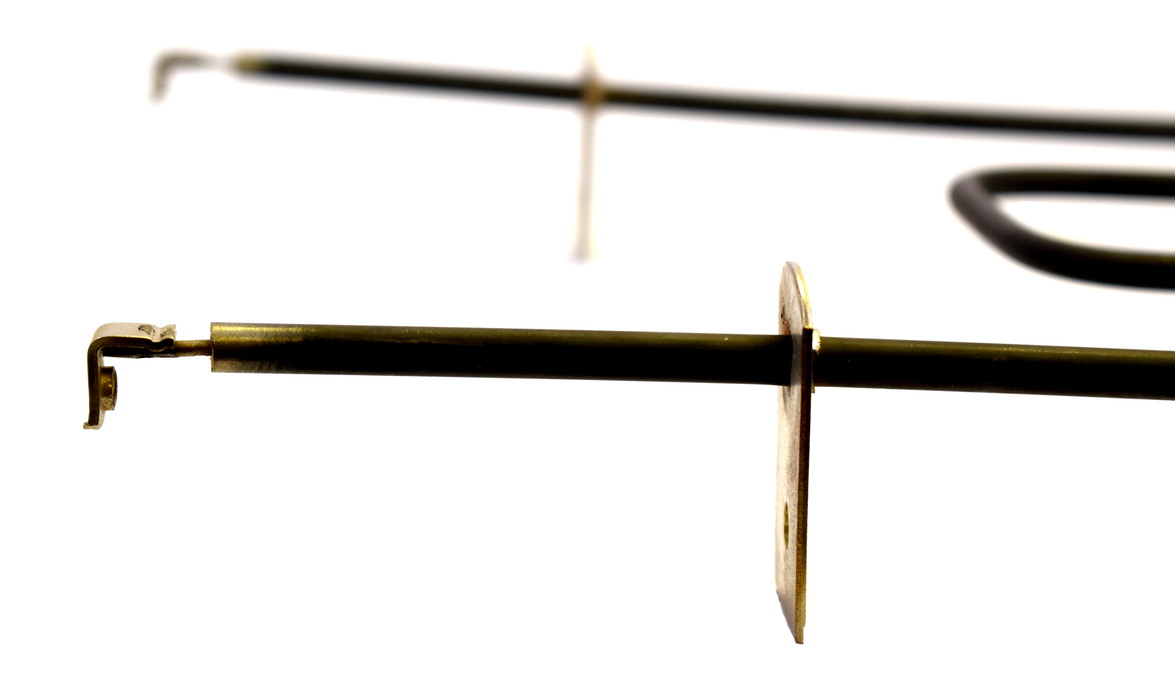

- Threaded Screw-In Terminals
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens: Use part numbers and dimensions to determine if this element will fit your appliance.
