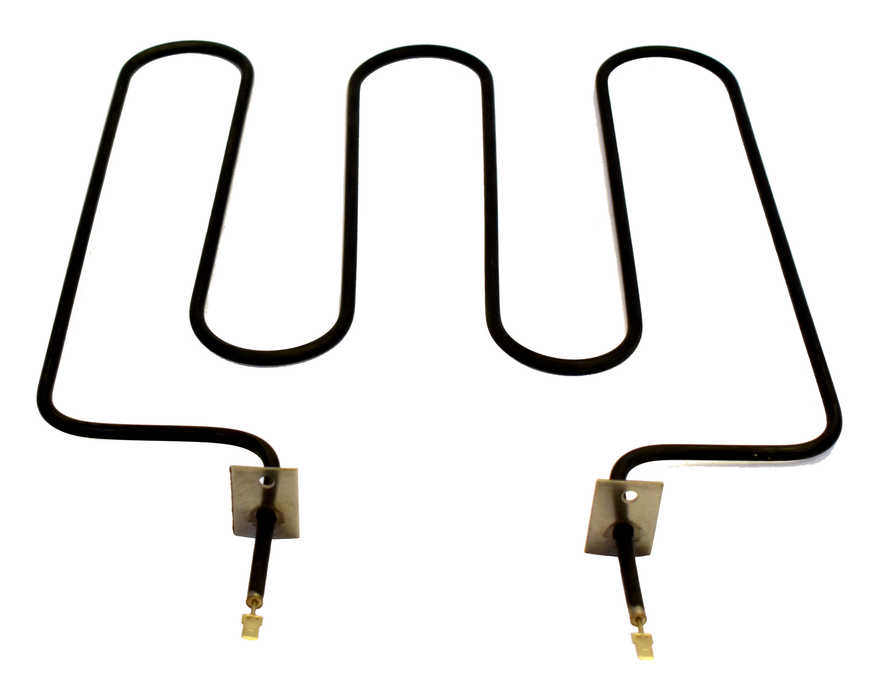

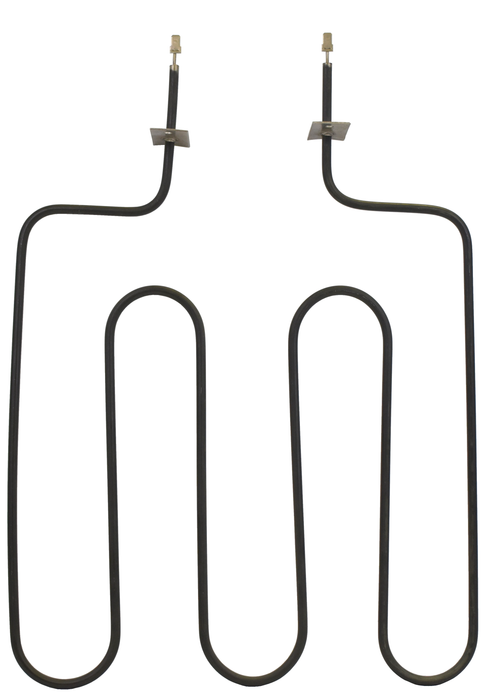

Model TC-7109: Whirlpool/Amana Y0042138 Equivalent Range/Oven Replacement Broil Element, 2,800W @ 240V

Save 15% Save 15%
Original price $ 47.85
Original price $ 47.85 - Original price $ 47.85
Original price $ 47.85
Current price $ 40.68
$ 40.68 - $ 40.68
Current price $ 40.68
Availability:
2 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-4223-001      Therm Coil Model No.: TC-7109

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Whirlpool / Amana / Caloric: Y0042138, 42138, 0042138, R0157903, 31-32100301

Modern Maid: 74-06-174

Other: TS7109, AP4092321, 1417884, AP4267049, AP4049811, 1230830

  • 2800 W @ 240 V Rating

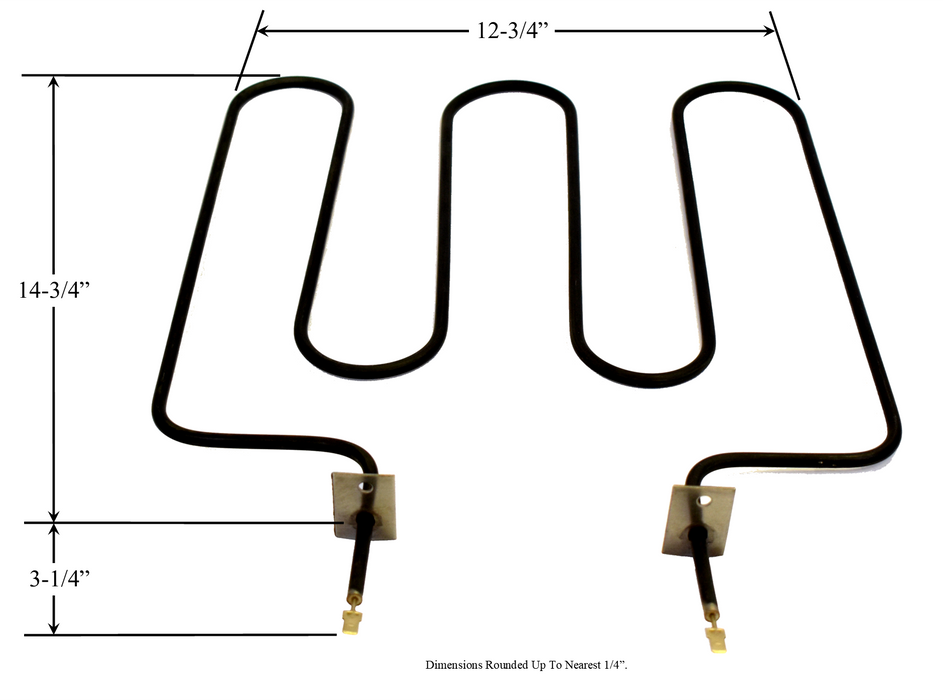

  • Approx. Overall Size: 12-3/4" Width x 14-3/4" Length From Back Of Element To Mounting Brackets x 3-1/8" Insert From Bracket To Terminal Ends x 5" Terminal-to-Terminal Width.

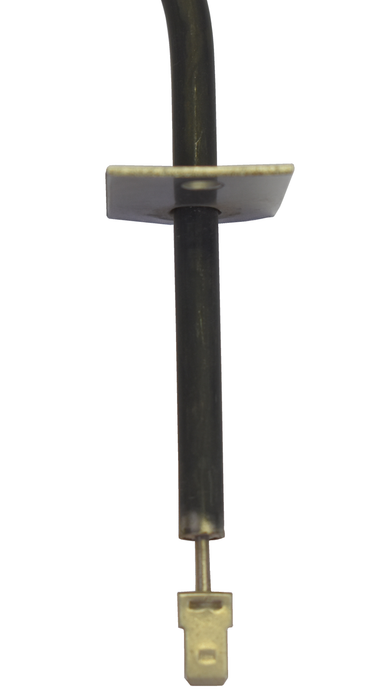

  • Push-in Male Quick-Connect Terminals
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens: Use part numbers and dimensions to determine if this element will fit your appliance.

 HELPFUL HINT: Use CTRL+F to use the search function for your Appliance Model Number.

  • Used In Appliance Model Numbers:

 AOR27DE (P1172501S), AOES2730E (P1132357N E), AO27SD (P8597701S), FDC2502D (P1132326N D), FDO162     , AOCD2770SS (P1132370NSS), AOCD2770WW (P1132359NWW), AOCS2740E (P1132358N E), ACO27DE (P1172603S), ACO27DEW1 (P1132334N W), ACO27SEW1 (P1132333N W), AO-27SB (P8554703S), AO27SEW (P1108001S), AO27SEW1 (P1132340N W), AOCD2770E (P1132359N E), AOCD2770WW (P1132370NWW), AOCS2740E (P1132369N E), AOES2730WW (P1132357NWW), AOR27DEW (P1172501S), FDC3902WW (P1132332NWW), ACO27DE (P1172603S E), ACO27DE1 (P1132343N E), ACO27DE1 (P1132334N), ACO27DEW (P1172604S), ACO27DEW (P1172604SEW), ACO27DEW1 (P1132343N W), ACO27DK (P1132334N K), ACO27DK (P1132343N K), ACO27SE (P1172601S), ACO27SE (P1172601S E), ACO27SE1 (P1132333N), ACO27SE1 (P1132339N E), ACO27SEW (P1172602SEW), ACO27SEW (P1172602S), ACO27SEW1 (P1132339N W), ACO27SK (P1132339N K), ACO27SK (P1132333N K), AO-27D (P8554702S), AO-27DB (P8554704S), AO-27DB (P8554706S), AO-27S (P8554701S), AO-27SB (P8554705S), AO27DB (P8554708S), AO27DC (P8575502S), AO27SB (P8554707S), AO27SC (P8575503S), AO27SC (P8575501S), AO27SE (P1108002S), AO27SE1 (P1132340N E), AO27SE1 (P1132336N), AO27SEW1 (P1132337N), AOCD2770E (P1132370N E), AOCS2740WW (P1132358NWW), AOCS2740WW (P1132369NWW), AOES2730E (P1132367N E), AOES2730WW (P1132367NWW), AOR27DE (P1132341N E), AOR27DEW (P1132341N W), CACO27SE1 (P41132338 N), CACO27SEW1 (P41132338 N), DD0880, DDO-750, DDO-790, EKD289, EKS289, FDC2502WW (P1132327NWW), FDC2502WW (P1132327N W), FDC2902D (P1132324N D), FDC2902WW (P1132325NWW), FDC2902WW (P1132325N W), FDC3502B (P1132331N B), FDC3502WW (P1132331NWW), FDC3902B (P1132332N B), FDO-250-2D (FDO-250-2 D), FDO-250-2W (FDO-250-2 W), FDO180, FDO280







Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, General Electric Corporation, Sears, Roper Technologies, or any other listed manufacturers or their affiliates.
