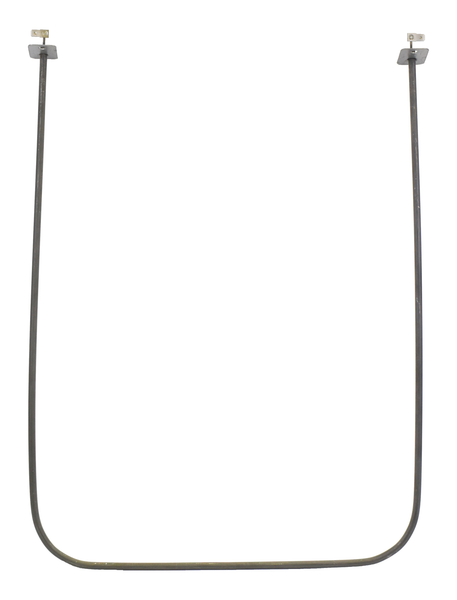

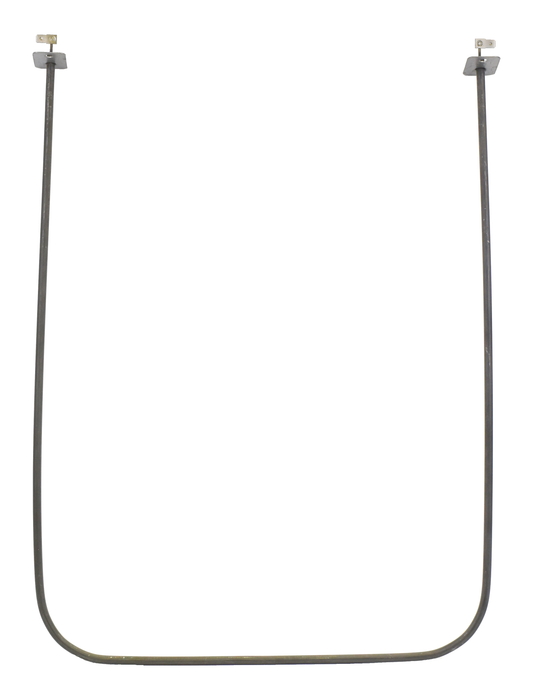

Model TC-7110: Bosch 00484778 / Thermador 14-29-003 Equivalent Range/Oven Bake Replacement Element, 450 W @ 120W

Sale price $ 21.68 Regular price $ 25.50

Therm Coil Drawing No.: 366R-4222-003      Therm Coil Model No.: TC-7110

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.

  • Replacement For Part Numbers:

Bosch: 00484778, 484778

Thermador: 14-29-003, 14-09-956

Other: AP2834560, 1051072, AP3382914

  • 450 W @ 120 V Rating

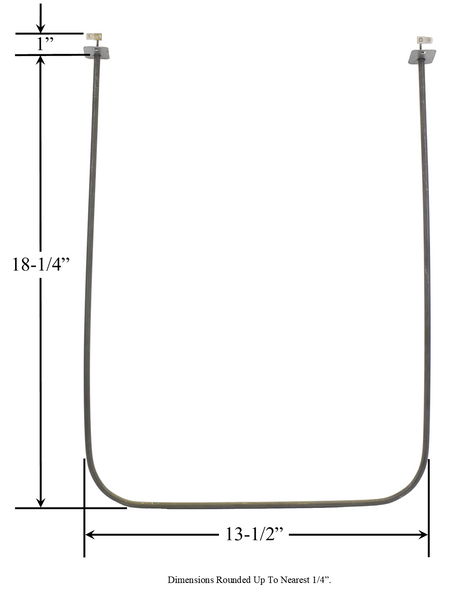

  • Approx. Overall Size: 13-1/2" Width x 18-1/8" Length From Back Of Element To Mounting Brackets x 7/8" Insert From Bracket To Terminal Ends.

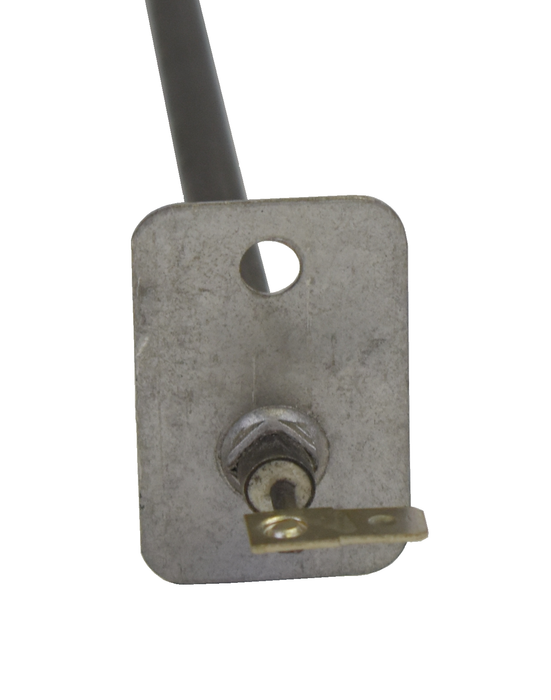

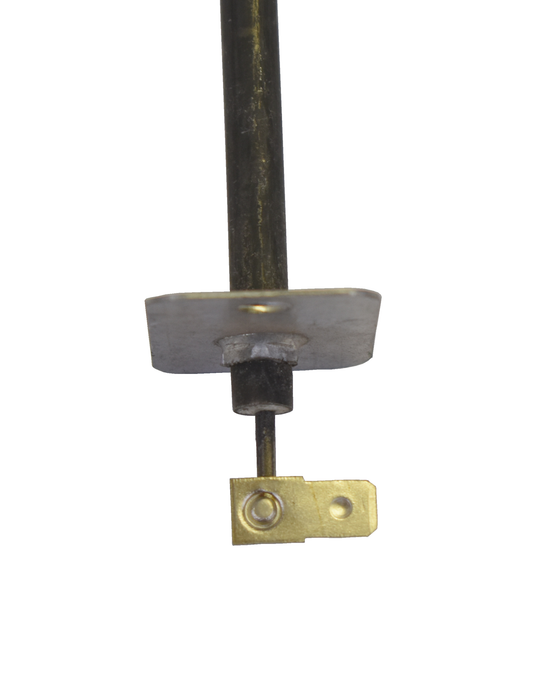

  • Male Quick-Connect Push-In Terminals
  • Used in Bosch brands including Thermador, Gaggenau, and othersIf you don't see your appliance model listed, please see part numbers and dimensions to determine if this element will fit your appliance.

HELPFUL HINT: Use CTRL+F to use the search function for your Appliance Model Number.

  • Used In Appliance Model Numbers:

ECTKWD24, EIIWD24, SH01BG, WD24, WD24S, WD24WC





Therm Coil MFG. Co. is not affiliated with Thermador, BSH Home Appliances Corporation, BSH Hausgeräte GmbH or any other listed manufacturers or their affiliates.
