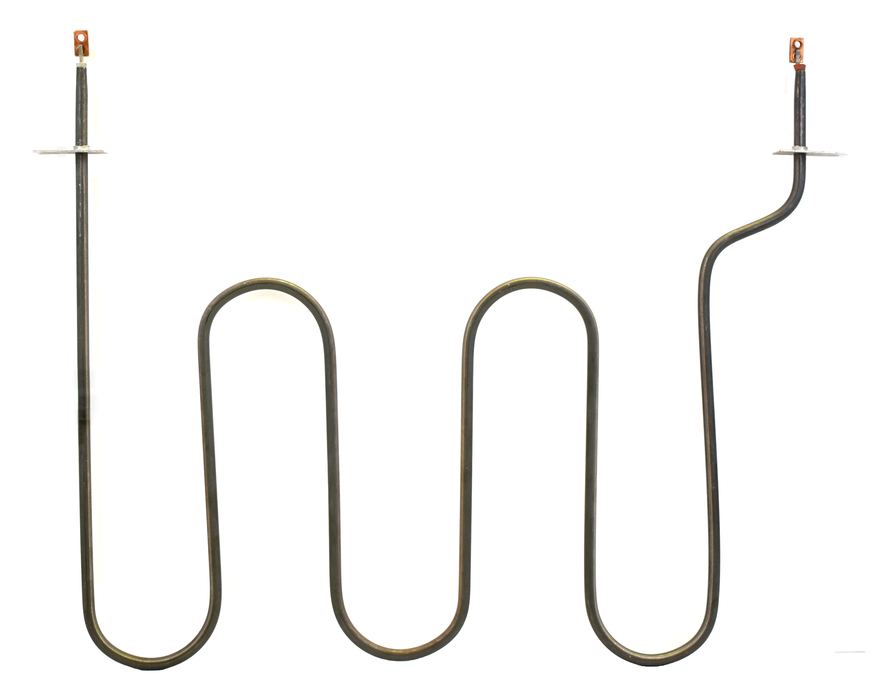

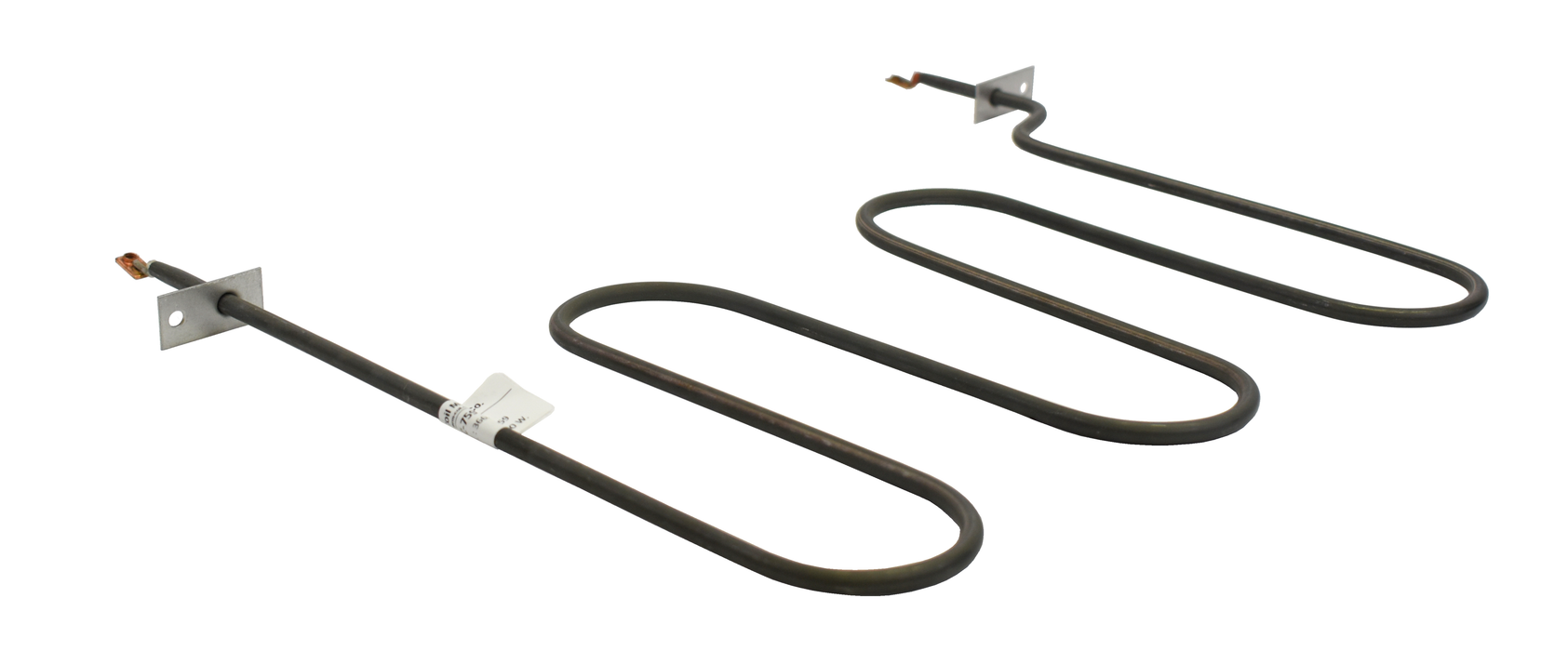

Therm Coil Drawing No.: 366R-1759-003 Therm Coil Model No.: TC-759
DescriptionHELPFUL HINT: Use CTRL+F to use the search function for your part number.
- Replacement For Part Numbers:
74-06-156, 7406156, CH759, 115946, 455873, RP759, TS759, YCH759, AP3389079
- 2500 W @ 250 V

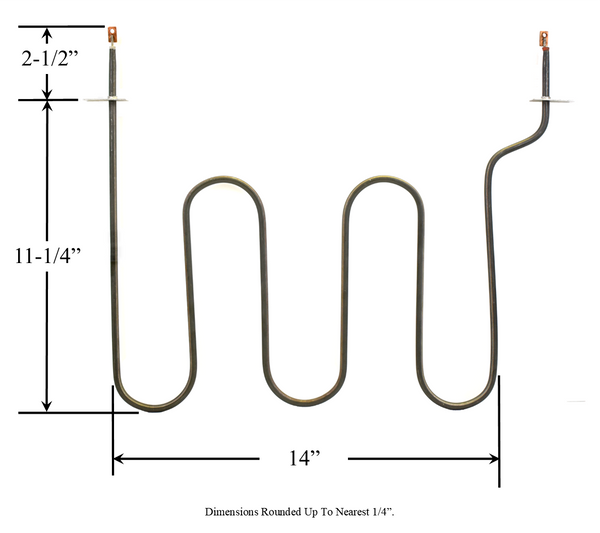

- Approximate Overall Size: 14" Wide x 11-1/8" Length From Back Of Element To Mounting Bracket x 2-1/2" Insert From Bracket To Terminal Ends x 16" Center-to-Center Of Terminals

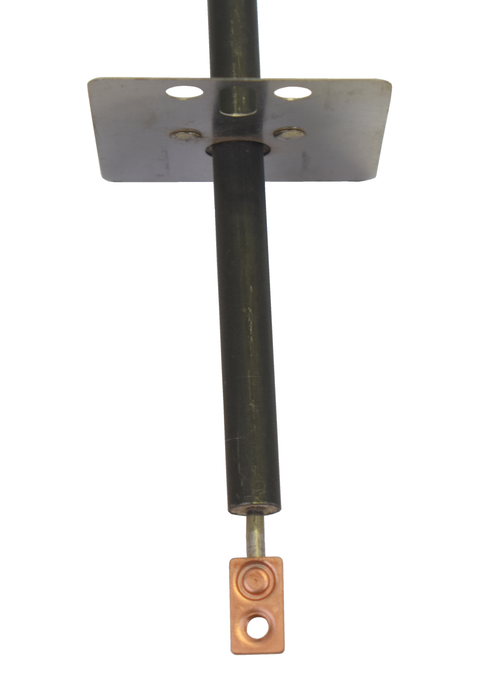

- Threaded Screw-In Terminals
- Used in various models of Modern Maid, Whirlpool, Chambers, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Sears / Kenmore, and other Ranges And/Or Ovens: If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broil element will fit your appliance.
