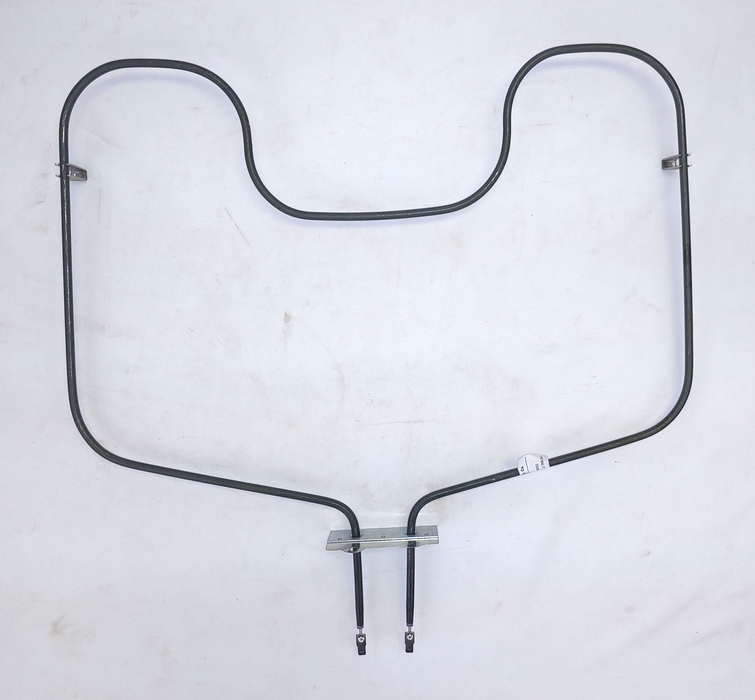

Model TC-777: Whirlpool/Kenmore/Roper 4328405 / 301444 Equivalent Range/Oven Bake Replacement Element, 2,700W @ 240V

Discounted price $ 60.05 List price $ 70.65

Therm Coil Drawing No.: 366R-3011-003      Therm Coil Model No.:TC-777

Description

  • HELPFUL HINT: Use CTRL+F to use the search function for your element part number:
  • Replacement For Part Numbers:

Amana: C27049-12

Kenmore / Roper / Whirlpool: 4328405, 4352784, 4352785, 4352824, 4353020, 4354505, 4354506, 296119, 296565, 301444, 321667

Other: TJ90CH2858, AP4502539, AP3103918, 2450, 454926, 458863, CH2858, ERB777, P777, RP777, TS2858, TS2858/777, TS777, TS777/2858, YCH2858, AH359687, EA359687, PS359687

  • 2700W @ 240V
  • Approximate Overall Size:  19-7/8" Wide x 15-1/4" From Back Of Element To Bracket x 3-5/8" Insert (Bracket To Terminal End) x 1-3/4" Center-to-Center Of Terminals.

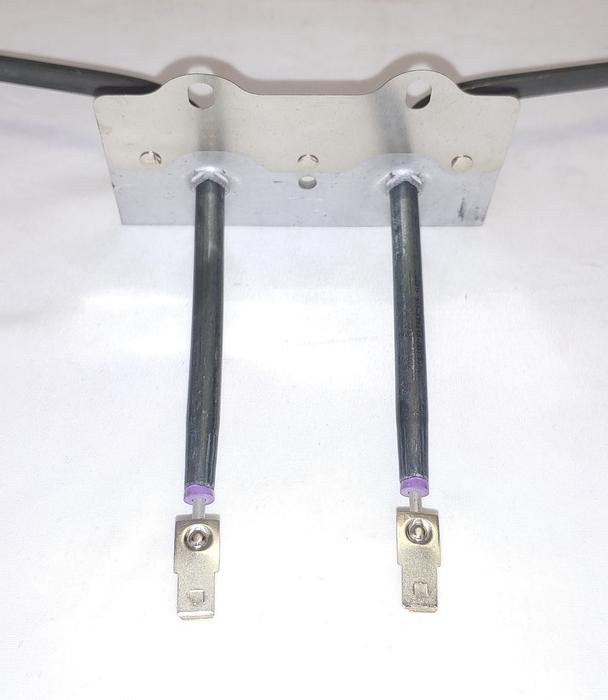

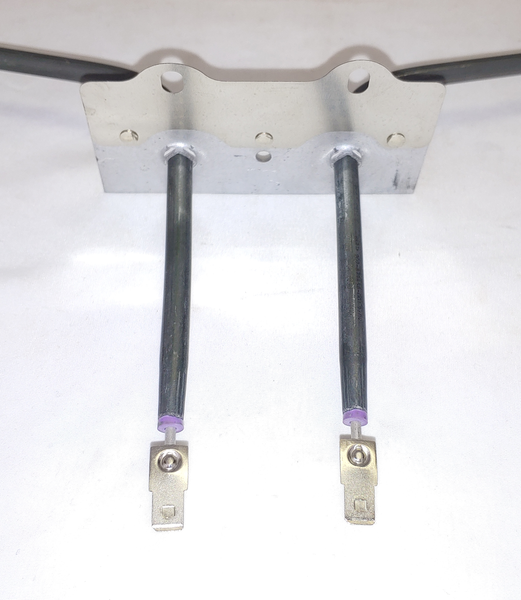

  • Male Quick-Connect Push-In Terminals
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, RoperSears / Kenmore, and othersIf your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
  • HELPFUL HINT: Use CTRL+F to use the search function for your oven/range model number:
  • Used In The Following Roper / Whirlpool Oven/Range Model Numbers and More:
2323W0A, 2323^0A, 2413*0A, 2413W0A, 2453W0A, 2733^0A, 2872^0A, 2872W0A, 2872*0A, 2843W0A, 2413^0A, 2323*0A, 2236W20, 2236W10, 2236W00, 2236*20, 2236*10, 2236*00, 2233Z1A, 2233W0A, 2233^1A, 2233^0A, 2233*1A, 2233*0A, 2216W20, 2216W10, 2216W00, 2216*20, 2216*10, 2216*00, 2733W0A, 2733*0A



    Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any of their affiliates.
