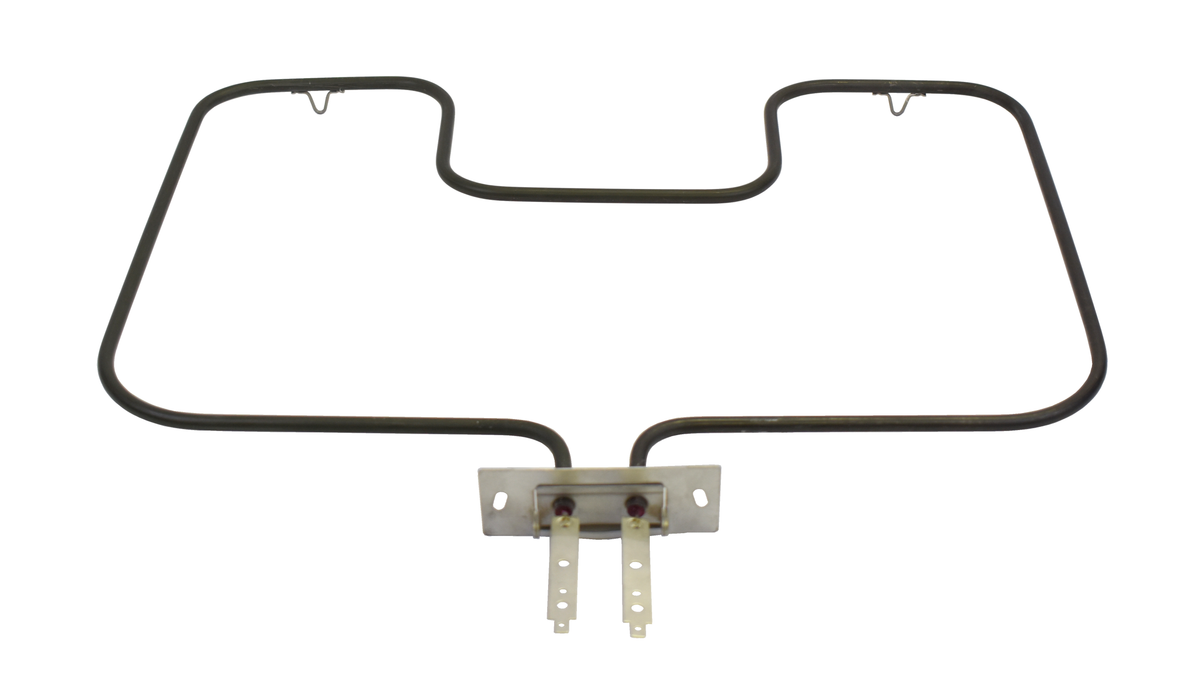

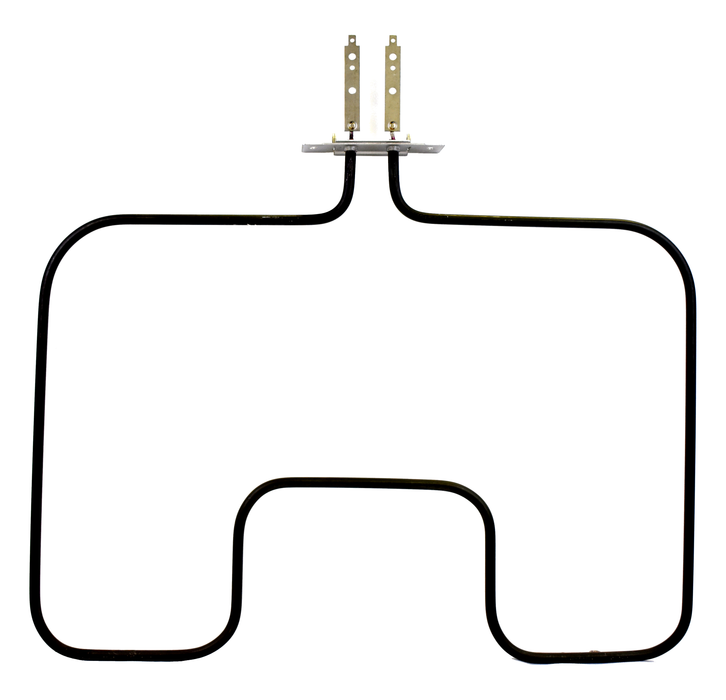

Model TC-783: Frigidaire 5309950886 Range/Oven Bake Replacement Element, 3,350W / 2,330W @ 250V / 208V

Save 15% Save 15%
Original price $ 76.80
Original price $ 76.80 - Original price $ 76.80
Original price $ 76.80
Current price $ 65.28
$ 65.28 - $ 65.28
Current price $ 65.28
Availability:
2 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-3068-003      Therm Coil Model No.: TC-783

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
  • Replacement For Part Numbers:

Frigidaire: 5309950886, 00632307, 00632308, 01133052, 07531230, 07531825, 09950886, 1133052, 12907, 9950886, 1133052, 632307, 632308, 7531230, 7531825, 9950886

Other: CH783, 12907, 456622, RP783, TS783, AP3389262, AP2591771, AP3215345, AP3216812, AP3216825, AH474711, EA474711, F83-454, PS474711

  • 3350 W / 2330 W @ 250 V / 208 V Rating

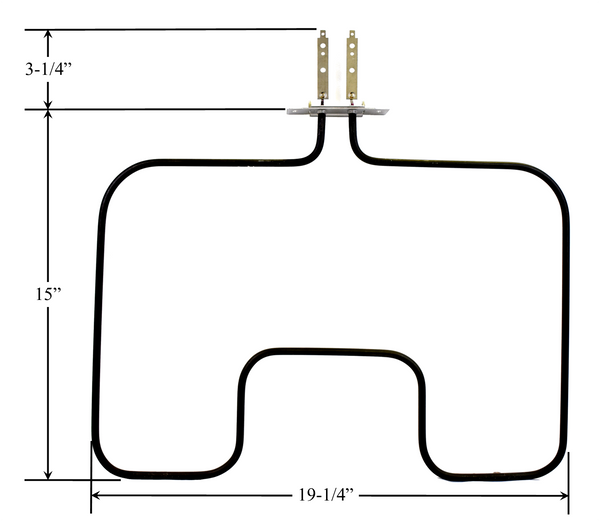

  • Approx. Overall Size: 19-1/4" Width x 15" Length From Back Of Element To Bracket x 3-1/4" Insert From Bracket to Terminal End
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.





    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
