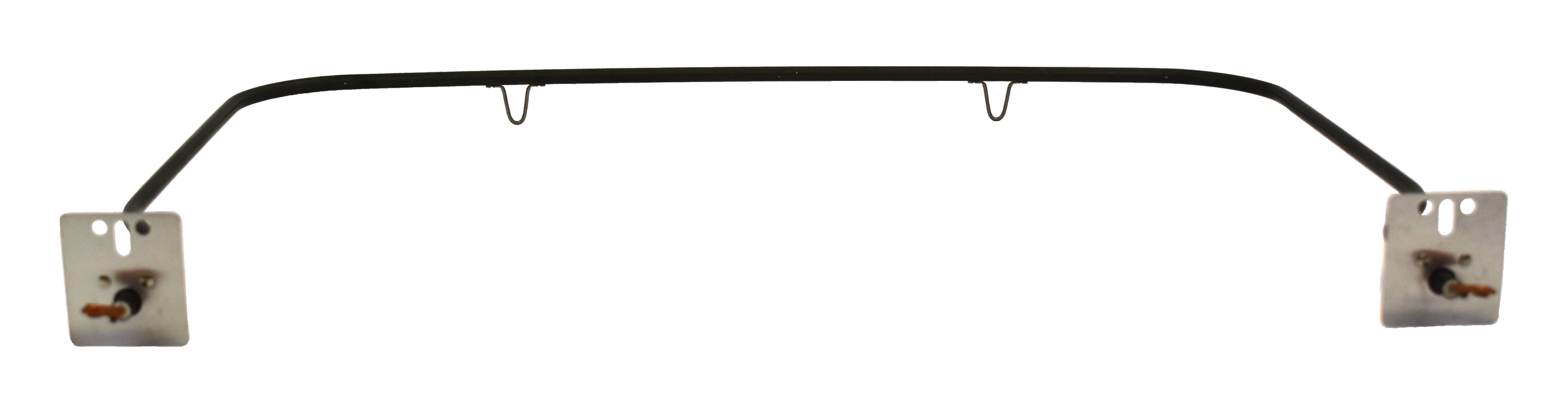

Model TC-805: Whirlpool 268766 / CH805 Range/Oven Bake Replacement Element, 2,600W @ 240V

Save 15% Save 15%
Original price $ 66.20
Original price $ 66.20 - Original price $ 66.20
Original price $ 66.20
Current price $ 56.27
$ 56.27 - $ 56.27
Current price $ 56.27
7 in stock, ready to be shipped

Therm Coil Drawing No.: 366R-1805-003      Therm Coil Model No.: TC-805


HELPFUL HINT: Use CTRL+F to use the search function for your Element Part Number.
  • Replacement For Part Numbers:

Whirlpool / RCA-Whirlpool: 268766, 261529, 270401

Other: CH805, 202-873802-002, 873802-002, AP3593888, AP3389542, 453350, 467860, 115958, RP805, TS805, YCH805

    • 2600 W @ 240V Rating

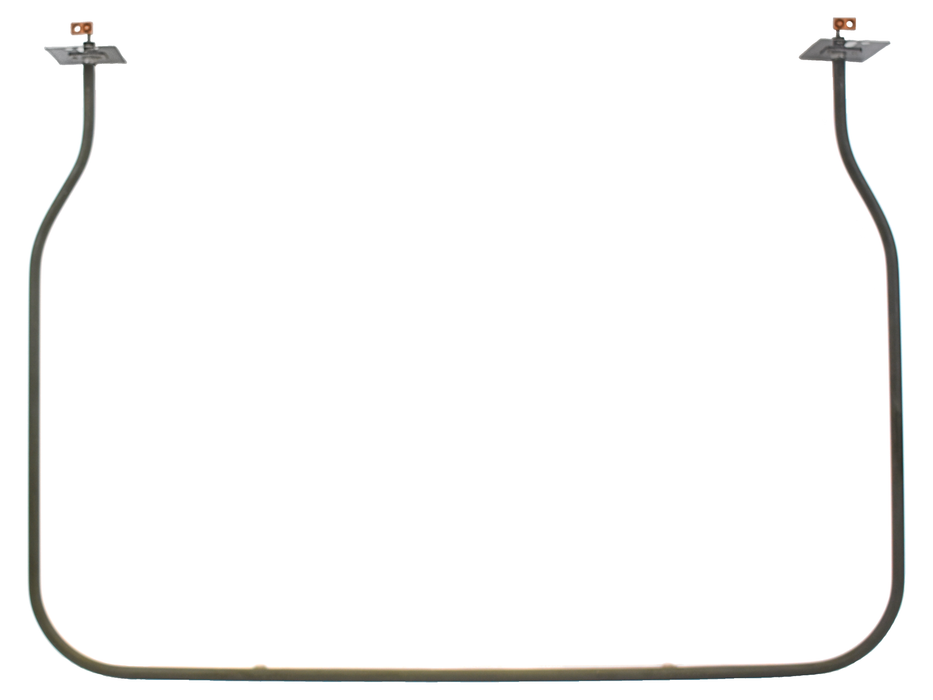

    • Approximate Overall Size: 21-13/16" Width x 15-11/16" Back Of Element To Mounting Brackets x 13/16" Insert From Bracket to Terminal End x 19-1/8" Center-to-Center Terminal Width (NOTE - Due to the flexible nature of this element, this dimension may vary, but can be easily restored in assembly.)

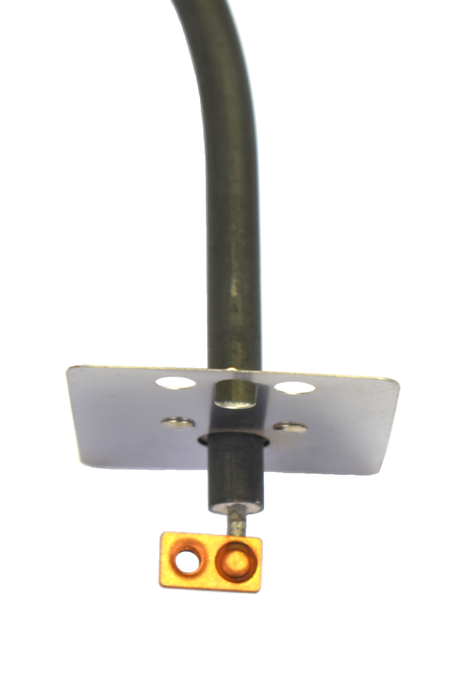

    • #8-32 Threaded Screw-in Terminals, 90° Positioned
    • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE -  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.
    Therm Coil MFG. Co. is not affiliated with Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
