Model TC-809: Roper / Whirlpool 4333167 (Screw-In Terminals) Range/Oven Bake Replacement Element, 2,000W @ 240V

Discounted price $ 61.29 List price $ 72.10

Therm Coil Drawing No.: 366R-1809-003      Therm Coil Model No.: TC-809

Description

NOTE:

This unit has Threaded Screw-In Terminals but is otherwise identical to 366R-4017-003 / TC-4854, which has Male Quick-Connect Terminals,  They both cross-reference to the same OEM part numbers. Choose a unit based upon which terminal type you need.

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
  • Replacement For Part Numbers:

Kenmore / Roper / Whirlpool: 4333167, 104787, 115037, 302249, 302449, 304028, 320415, 320799, 4328272, 4329003, 4333115, 4335150, 4351349, 4352092, 4353122, 4353188, 4353314, 4354426, 4354642, 4354644, 4354776

Other: CH809, 450730, 202-873838-001, 873838-001, AP3104102, AP3740241, AP3694240, AP4620898, AP2606734, AP4502565, AP4502604, AP4593615, 2065, 234605, RP809, TS809, YCH809, AH359910, EA359910, PS359910, B008DJUZA0, B0034IPZ3C, B008DJVR9S, B008DJVT6O, B008DJVFI6, B008DJVCHK, B008DJW1HA, B008DJVEAU, B008DJV9QY, B008DJUPW8, B008DJVEMS, B008DJVWM0, B008DJVW8O, B008DJWF6C, B008DJHH6K

  • 2000 W @ 240 V Rating

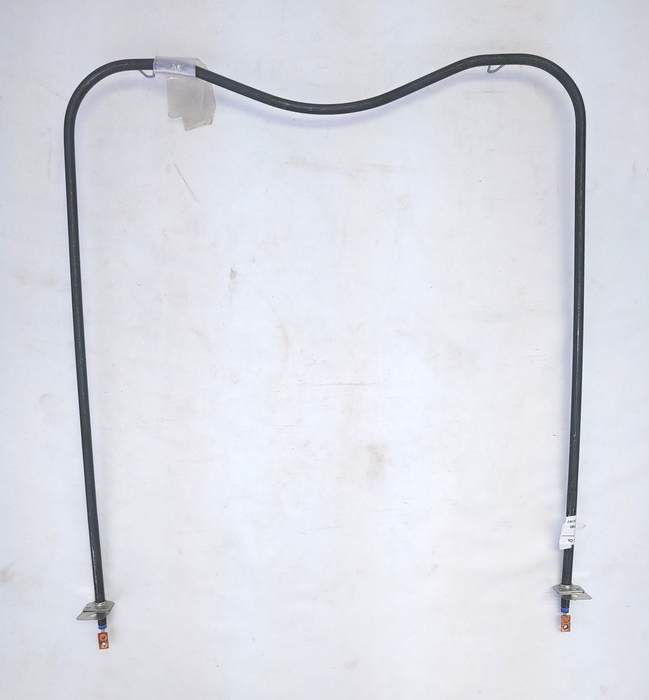

  • Approx. Overall Size: 16-1/4" Width x 17-1/4" Length From Back Of Element To Mounting Brackets x 1-1/2" Insert From Bracket To Terminal Ends.

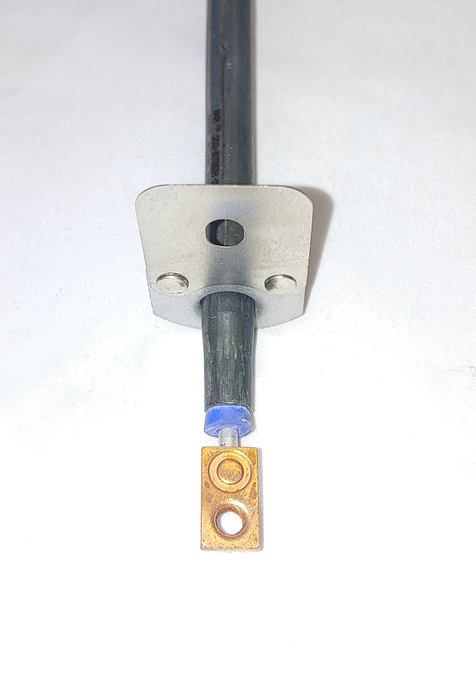

  • Threaded Screw-In Terminals
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this baking element will fit your appliance.





    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
