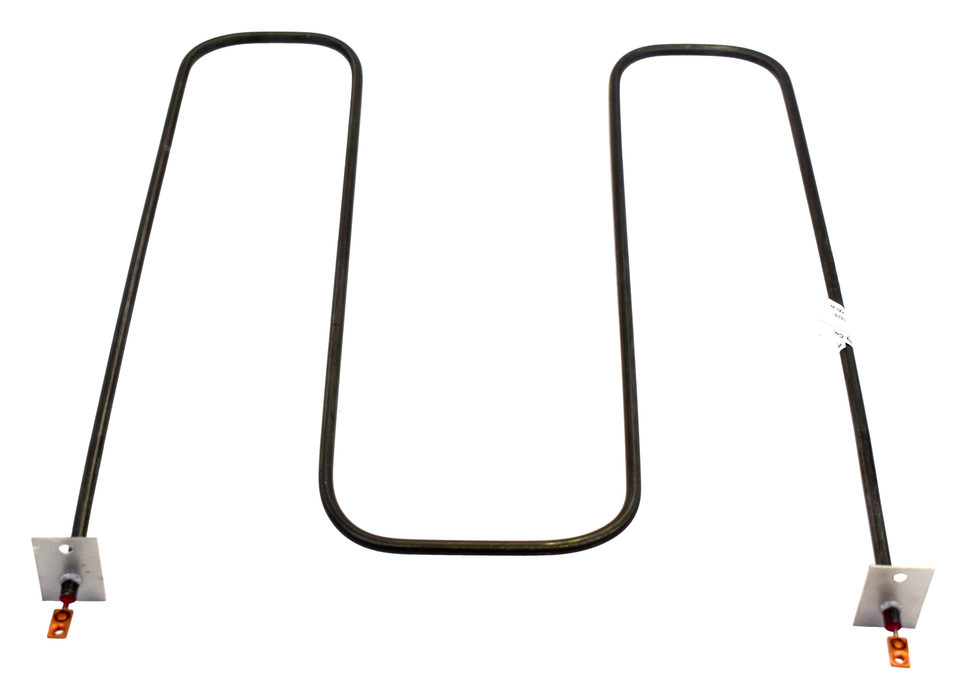

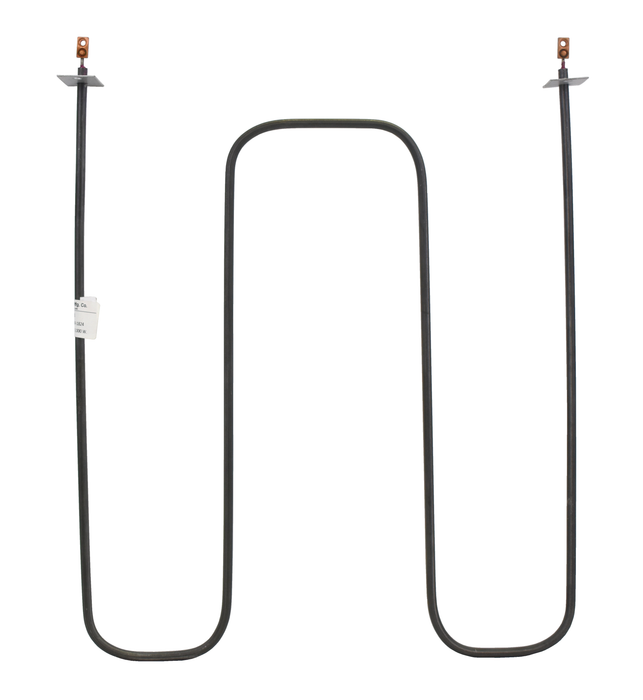

Model TC-824: Kelvinator 1188746, 1188747 / Whirlpool CH824 Range/Oven Broil Replacement Element,3,000W @ 250V

Discounted price $ 65.45 List price $ 77.00

Therm Coil Drawing No.: 366R-1824-003      Therm Coil Model No.: TC-824


HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
  • Replacement For Part Numbers:

Kelvinator: 1188746, 1188747

Whirlpool: CH824, 454790

Other: TS824, YCH824, RP824, AP3087185, AP3956077, 115973

  • 3000 W @ 240 V Rating

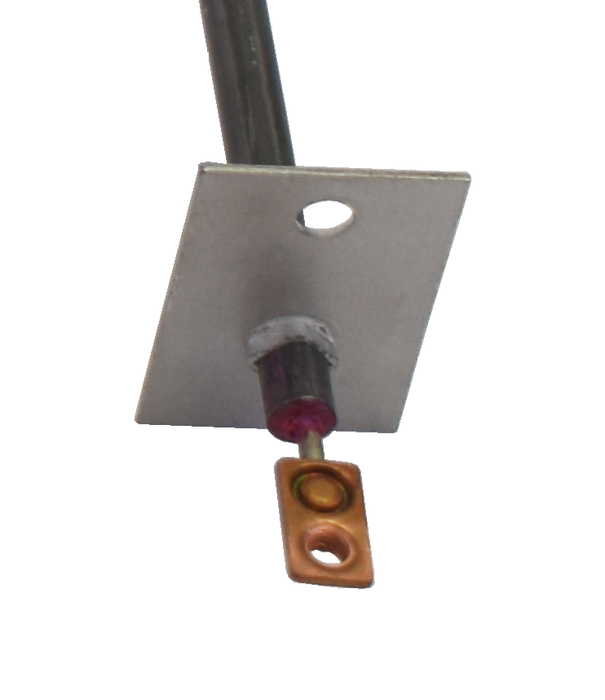

  • Threaded Screw-In Terminals

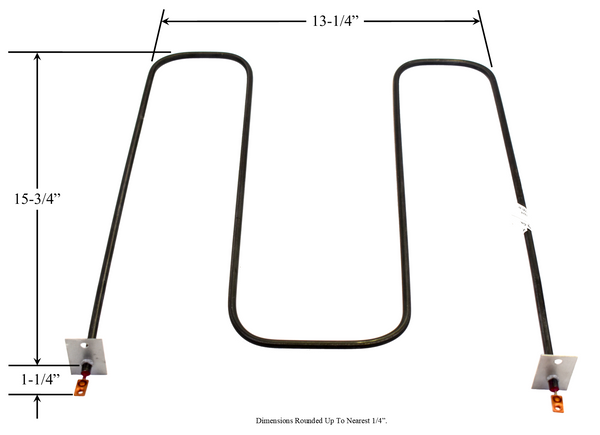

  • Approx. Overall Size: 13-1/4" Width x 15-3/4" Length From Back Of Element To Mounting Brackets x 1-1/8" Insert From Bracket To Terminal Ends.
  • Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.



    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
