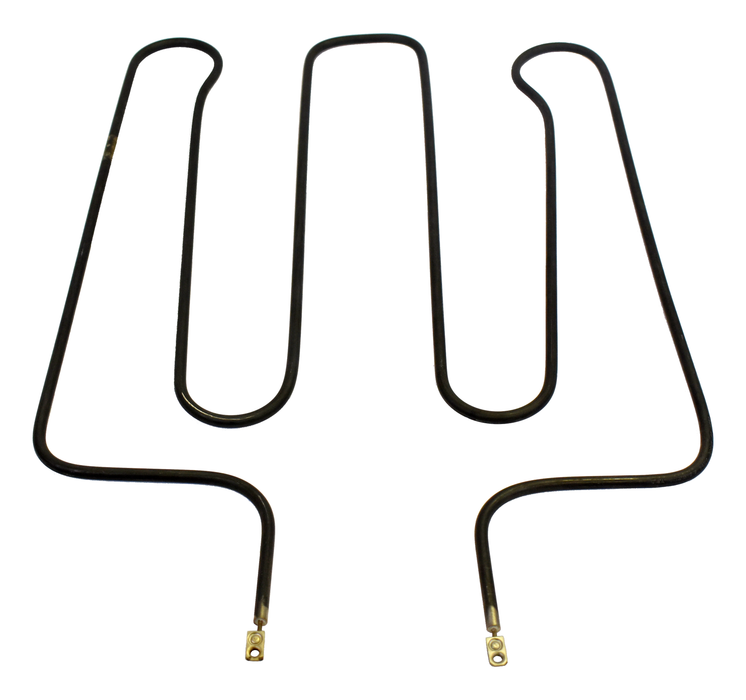

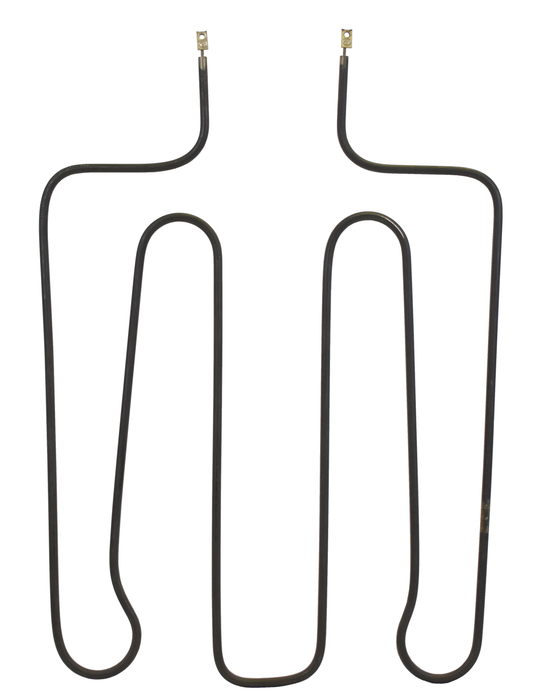

Therm Coil Drawing No.: 366R-1957-002 Therm Coil Model No.: TC-957
DescriptionHELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
Replacement For Part Numbers:
Bosch / Thermador: Compatible With Some Units
Whirlpool: CH957, 456180
Other: AP3087189, AP3956051, 115978
- 3600 W @ 250 V Rating

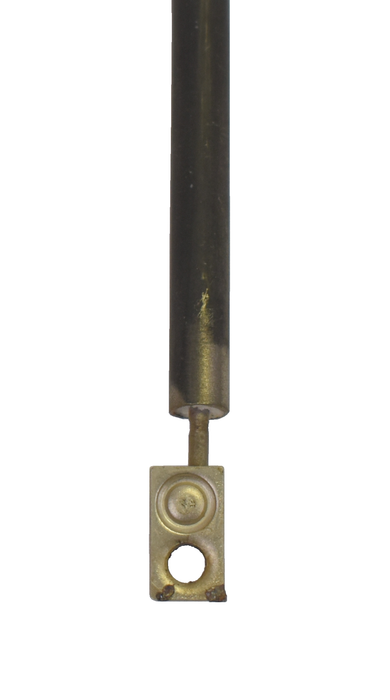

- Threaded Screw-In Terminals

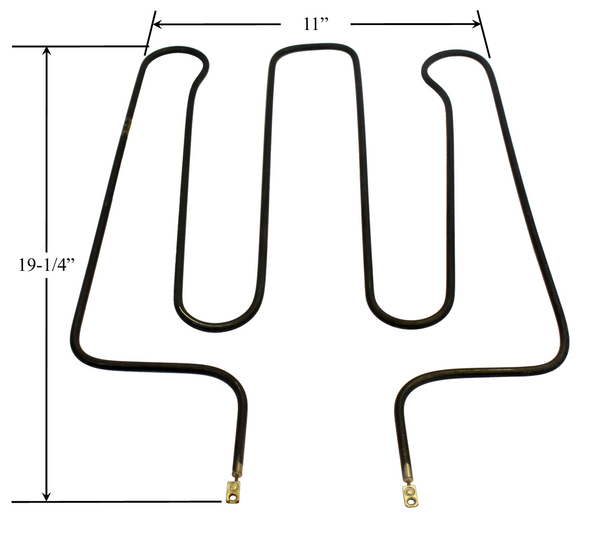

- Approx. Overall Size: 11" Width x 19-1/4" Length From Back Of Element To End of Terminals x 1-3/4" Center-to-Center terminal Width
- Used in various models of Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed. If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.
