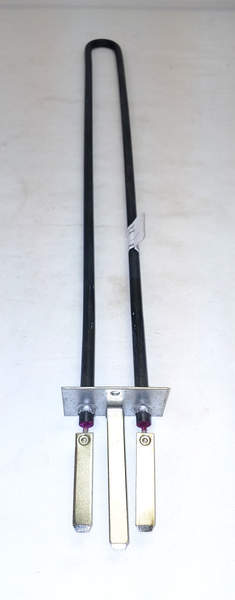

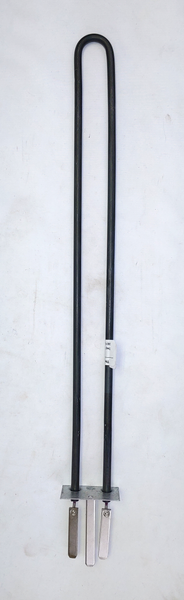

Model TC-959: Frigidaire 2549818 Equivalent Vintage Range/Oven Bake Replacement Element, 1,400W @ 240V

Discounted price $ 80.75 List price $ 95.00

Therm Coil Drawing No.: 366R-1959-003      Therm Coil Model No.: TC-959


HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Frigidaire 2549818, Chromalox CH959, 05429818, 115980, 456155, 5429818, RP959, TS959, YCH959, AP3389154

  • 1400 W @ 240V Rating
  • Approximate Overall Size: 1-1/2" Wide x 18-1/4" Length From Back Of Element To Mounting Bracket x 2-7/8" Insert From Bracket To Terminal Ends x 1-1/4" Terminal-to-Terminal

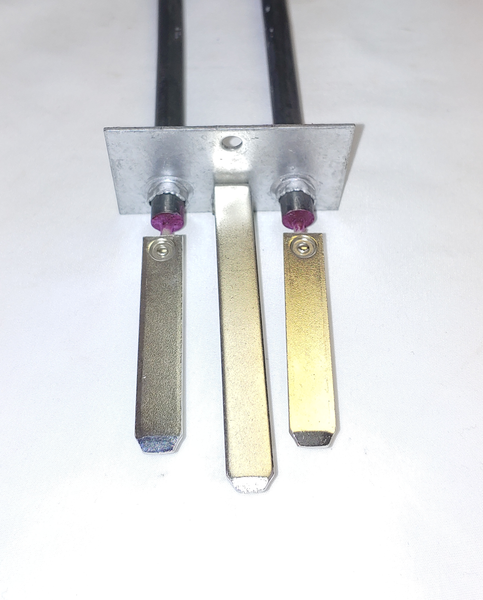

  • Prong Terminals With Ground
  • Used in various models of  Frigidaire brands including Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Sears / Kenmore,  and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this bake element will fit your appliance.



Therm Coil MFG. Co. is not affiliated with Frigidaire Corporation, Sears, or any other listed manufacturers or their affiliates.
