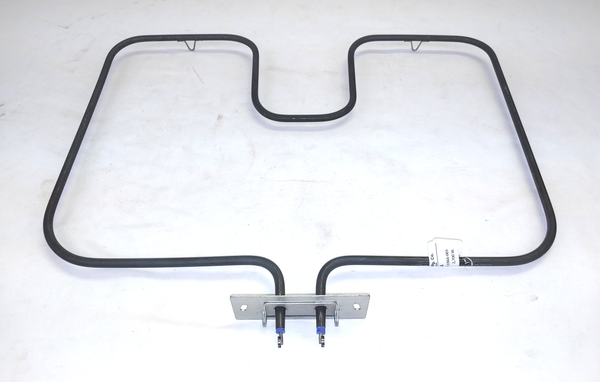

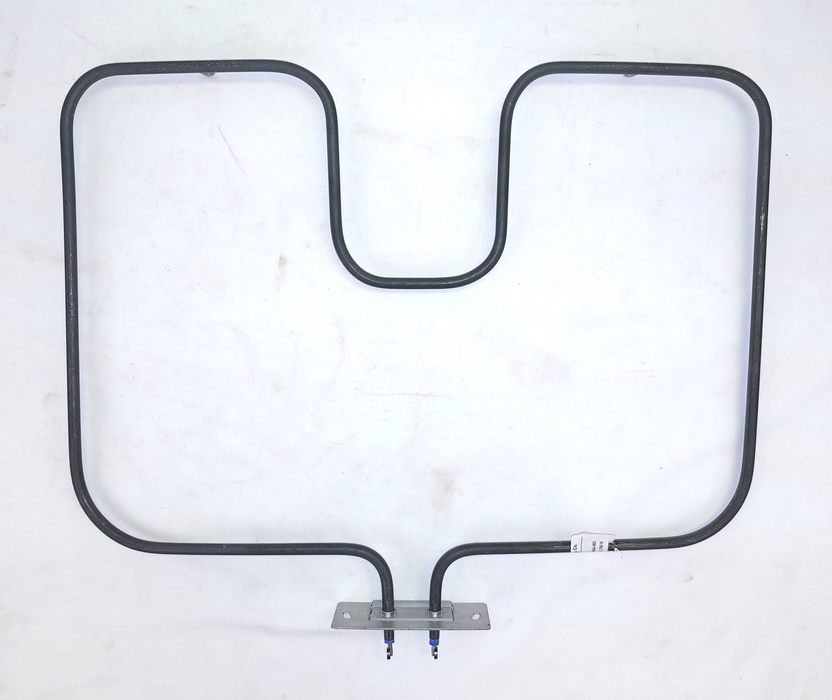

Model TC-966: Frigidaire 5309951514 Equivalent Range/Oven Bake Replacement Element, 2,700W @ 250V

Discounted price $ 67.41 List price $ 79.30

Therm Coil Drawing No.: 366R-1966-003      Therm Coil Model No.: TC-966

Description

HELPFUL HINT: Use CTRL+F to use the search function for your part number.
  • Replacement For Part Numbers:

Frigidaire: 5309951514, 07525864, 07526610, 09950890, 09951514, 7526610, 9950890, 9951514, 7525864

Other: CH966, 454109, TS966, YCH966, AP3772467, AP3361566, 1032, 115987

  • 2700 W @ 250V Rating
  • Approximate Overall Size: 18-1/2" Wide x 14-5/8" Length From Back Of Element To Mounting Bracket x 1-1/4" Insert From Bracket To Terminal Ends x 1-1/4" Terminal-to-Terminal

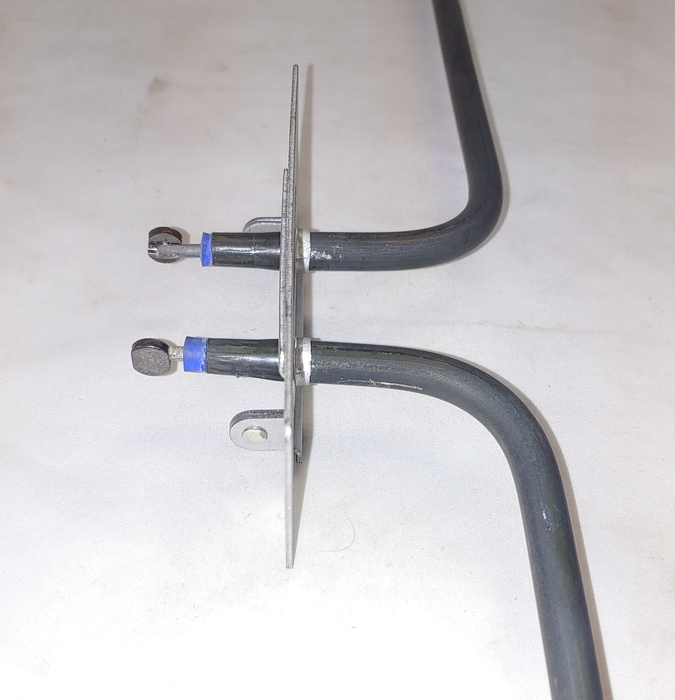

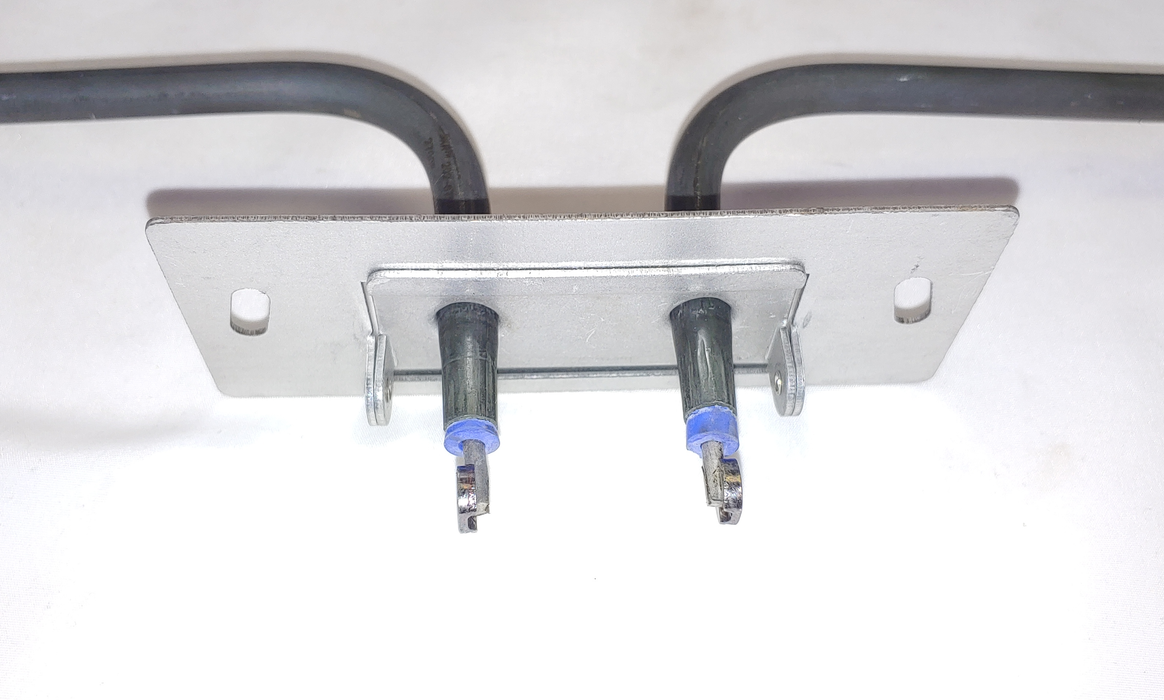

  • Button-style Terminals
  • Used in various models of  Frigidaire brands including Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Sears / Kenmore,  and other Ranges And/Or Ovens:  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this bake element will fit your appliance.





Therm Coil MFG. Co. is not affiliated with Frigidaire Corporation, Sears, or any other listed manufacturers or their affiliates.
