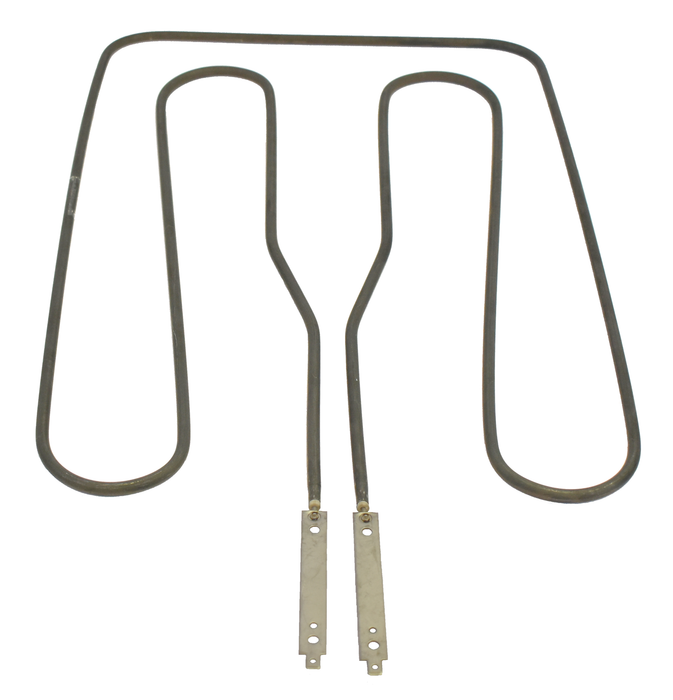

Model TC-971: Frigidaire 5307524074 Equivalent Range/Oven Broil Replacement Element, 3,600W @ 240V

Sale price $ 63.92 Regular price $ 75.20

Therm Coil Drawing No.: 366R-1971-003      Therm Coil Model No.: TC-971

Description

HELPFUL HINT: Use CTRL+F to use the search function for your Part Number.
  • Replacement For Part Numbers:

Frigidaire: 5307524074, 06563765, 06564391, 07523774, 07524073, 07524074, 07525622, 07525623, 07525629, 07525630, 07526298, 07526409, 07526597, 07526598, 07526601, 07531329, 07531806, 07531869, 7524074, 7531329, 7531869

Other: CH971, 05435912, 115992, 454141, RP971, TS971, YCH971, 115992, 640108, AP3389500, AP3142939

  • 3600 W @ 240 V Rating

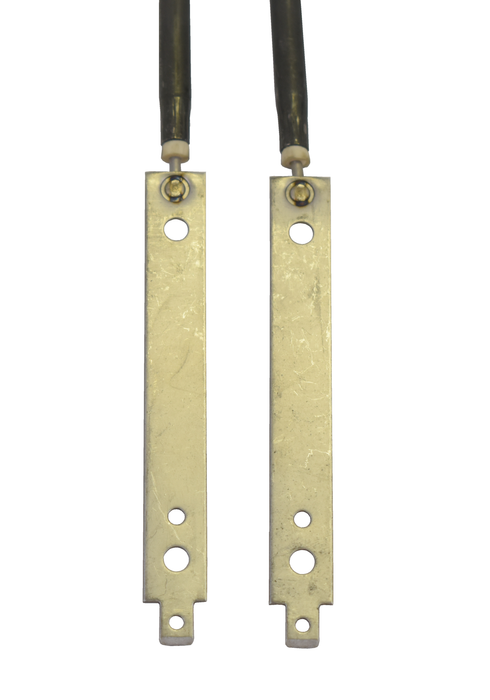

  • Prong Terminals
  • Approx. Overall Size: 11-1/4" Width x 16-3/4" Length From Back Of Element To Sheath End (Before Terminals Start) x 3-3/4" Blade Terminal Length x 1-1/4" Center-to-Center Terminal Width.
  • Used in various models of Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse,  Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed.  If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this element will fit your appliance.





    Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Sears, or any other listed manufacturers or their affiliates.
