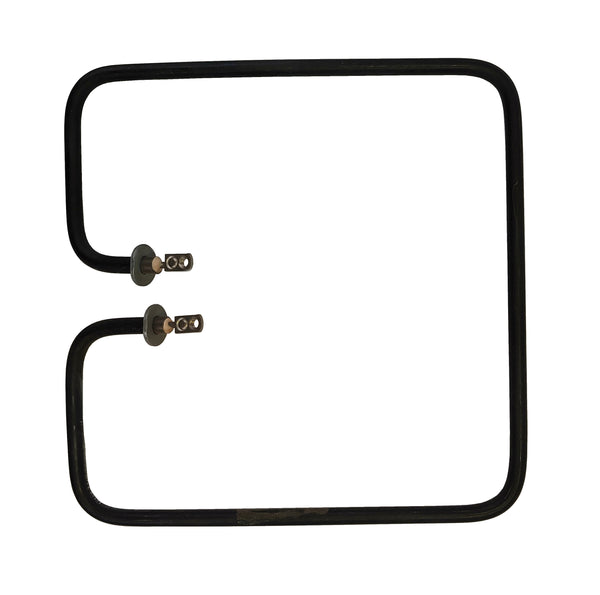

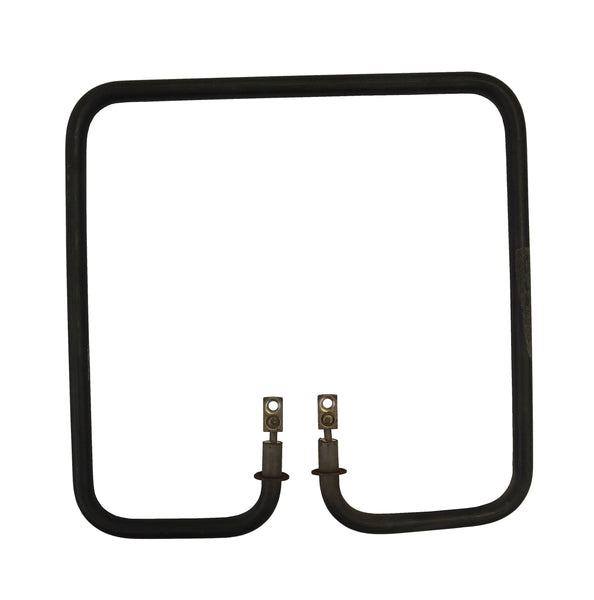

RC-475 American Standard Replacement Commercial Element, 1000 W @ 240 V

Therm Coil Drawing No.: 366H-9818-001

Therm Coil Model No.: RC-475

This is a replacement element used in American Standard wall heaters or heated ventilators and is rated 1,000W @ 240V with threaded lug (flag) terminals.

Approximate Dimensions:

• 7-3/8" Length
• 7-3/8" Width
• 2-1/4" From Outside of Element to Ends of Terminals
• 1-1/4" Insert From Washer to Terminal End
• 3/4" Center-to-Center Terminal Distance


Replacement For Part Numbers:

Southeastern Electric (SE) / Southeast Specialties, Inc.: SE475, SE-475-240V
