SECO 176809 & 176808 Equivalent Replacement Element Set For SECO Griddles / Hot Plates; Each Rated 400W @ 120V

Call for Availability
Original price $ 0.00 - Original price $ 0.00
Original price
$ 0.00
$ 0.00 - $ 0.00
Current price $ 0.00
Availability:
Call for Availability

**(2) Sets IN-STOCK! - Call For Quote On Price and To Order!**

Therm Coil Model No.: TC-612-0411 / Therm Coil Drawing No.: 384J-1000-001

PAIRED WITH

Therm Coil Model No.: TC-611-0411 / Therm Coil Drawing No.: 384J-1001-001

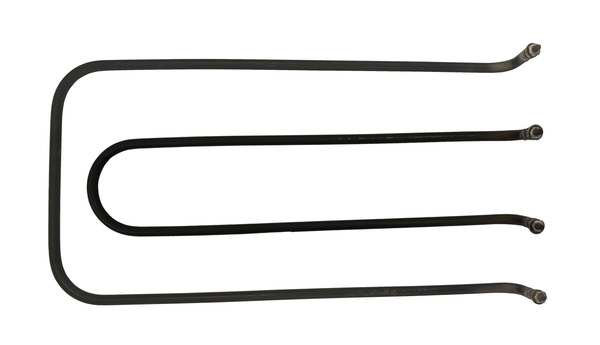

This is a set of (2) replacement elements. Each element is rated 400 W @ 120 V and have threaded #8-32 stud terminals.  These elements are used in some SECO griddles and hot plates.

Please verify that the rating and dimensions for the elements match what you are replacing.

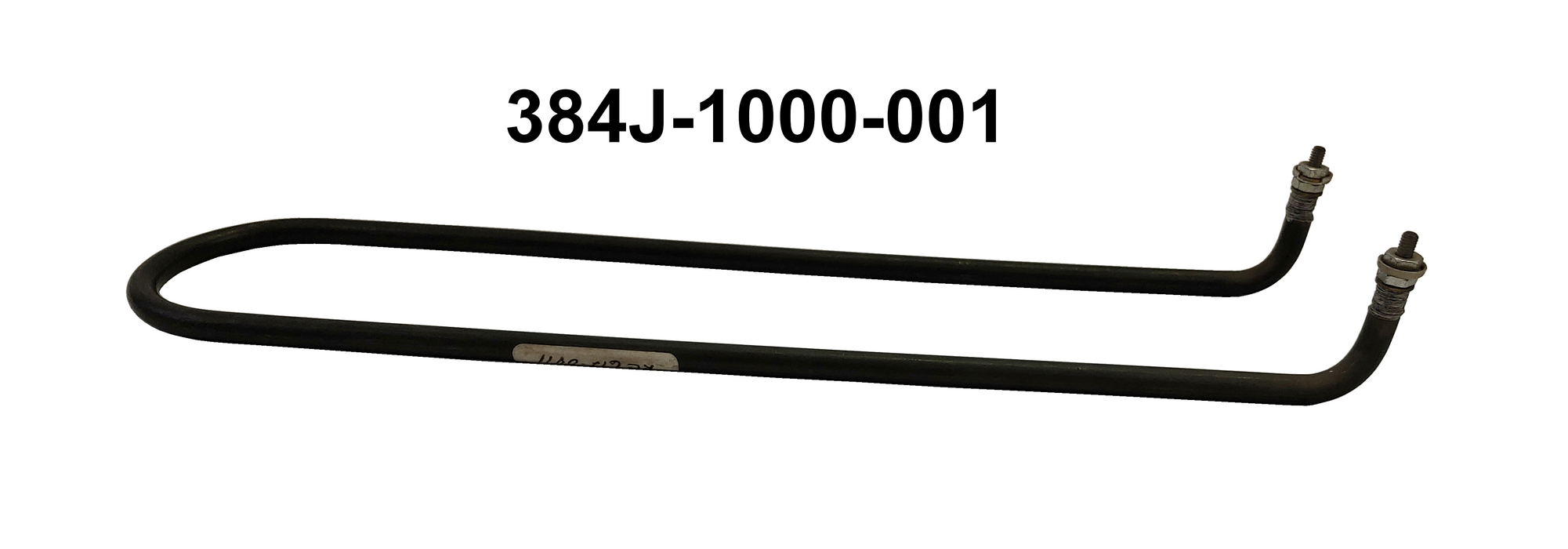

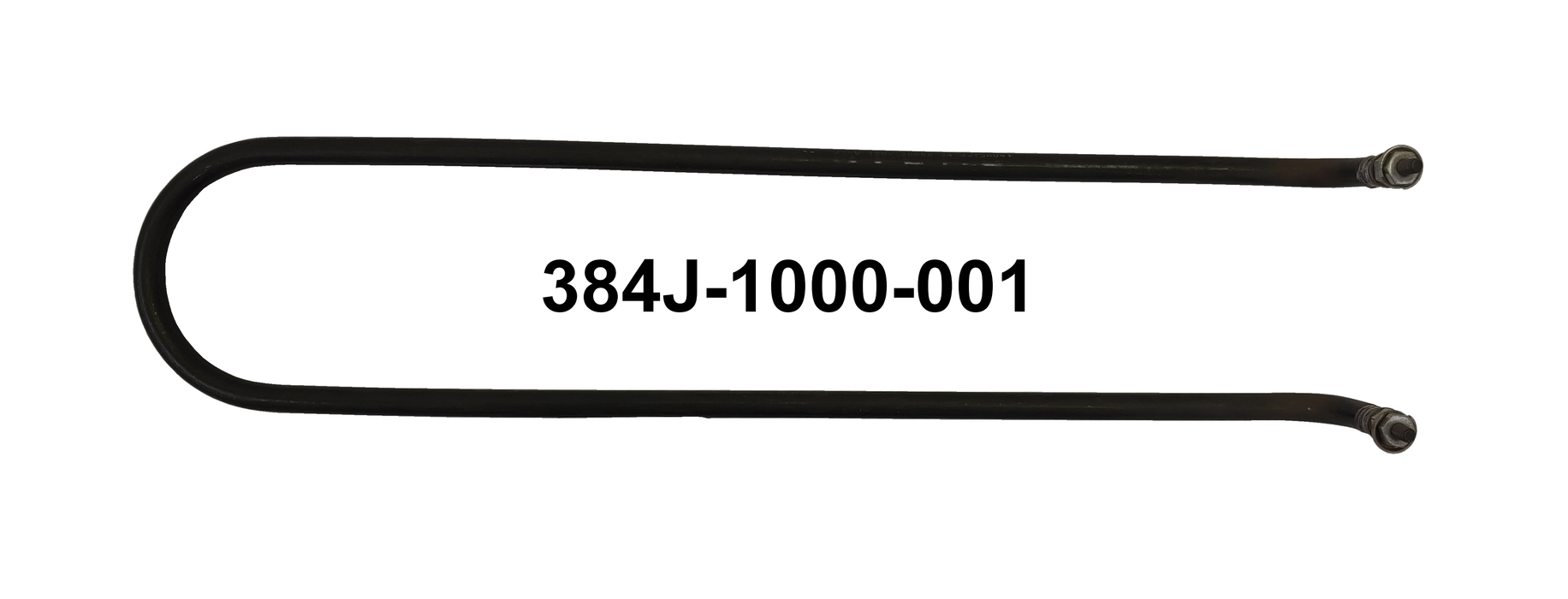

TC-612-0411 / 366R-1000-001 Dimensions (All ±1/8"):

  • Width: 3-1/8"
  • Overall Length: 14"
  • Height Including Terminals: 2"

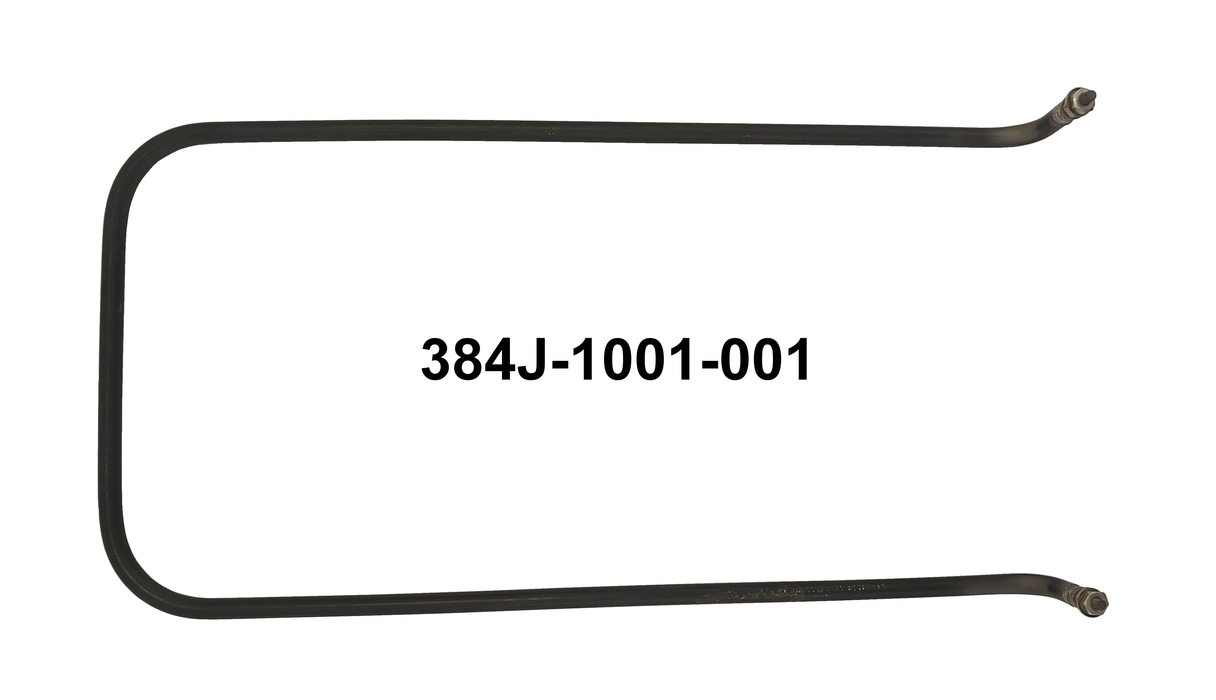

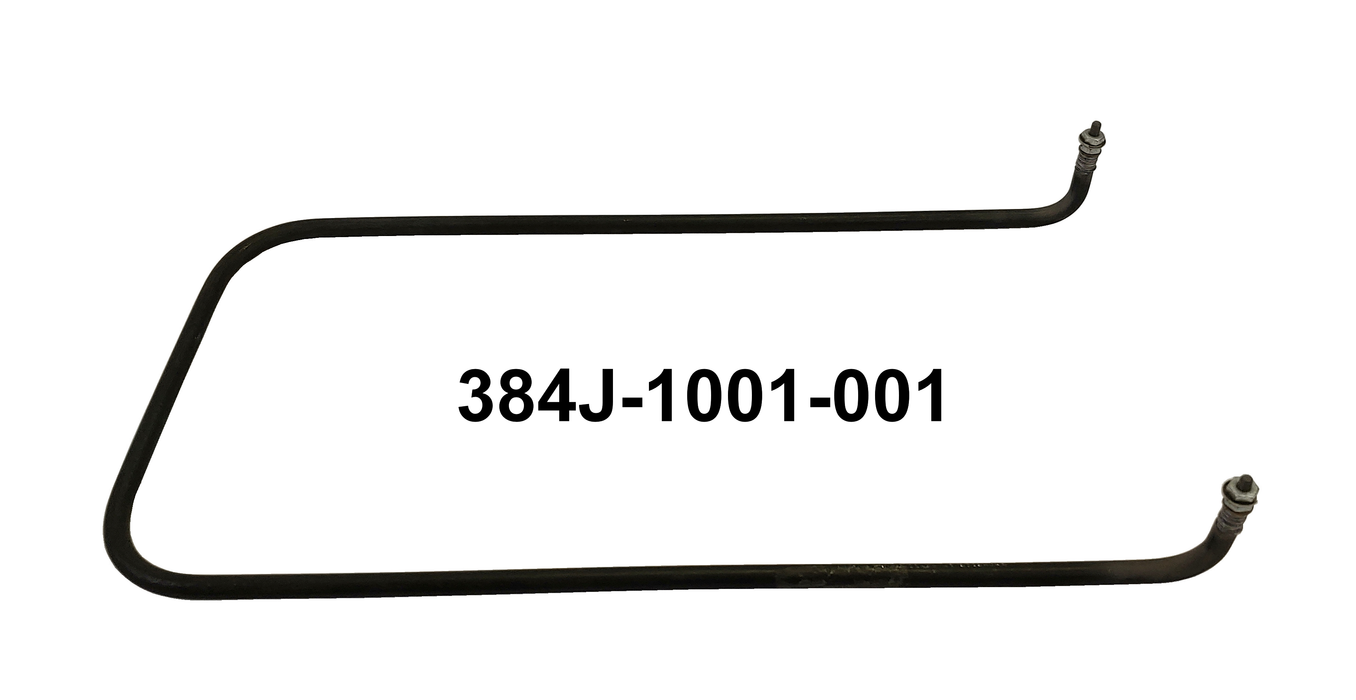

TC-611-0411 / 366R-1001-001 Dimensions (All ±1/8"):

  • Width: 7-3/4"
  • Overall Length: 15"
  • Height Including Terminals: 2"

Replacement For Part Numbers:

TC-612-0411 / 366R-1000-001 Replaces the Following Part Numbers:

SECO: 176809

Southestern Electric (SE): RC611-0411

TC-611-0411 / 366R-1001-001 Replaces the Following Part Numbers:

SECO: 176808

Southestern Electric (SE): RC611-0411
