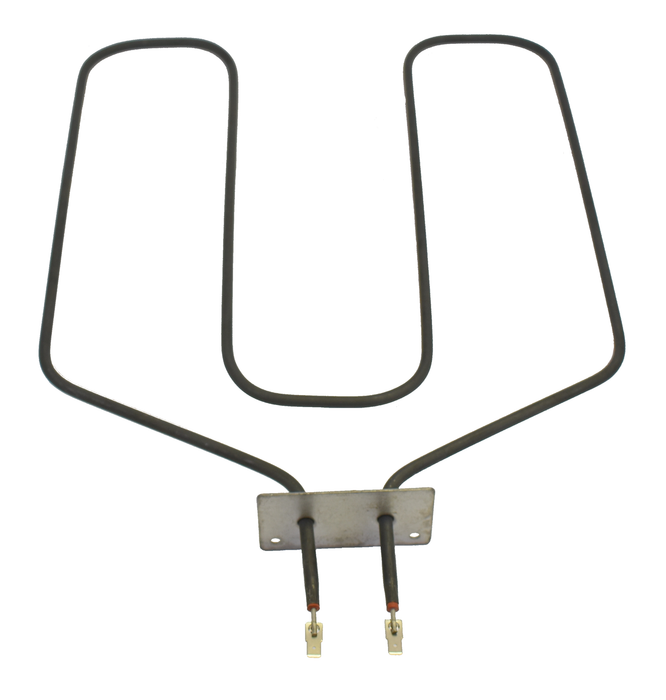

Therm Coil Drawing No.: 366R-3079-003 Therm Coil Model No.: TC-44X10015
Description
HELPFUL HINT: Use CTRL+F to use the search function for your Element Part Number.
- Replacement For Part Numbers:
G.E. / Hotpoint: WB44X10015
Other: AP2031066, 260869, AH249349, EA249349, PS249349, B00MOCNYGO
- 2565W / 3410W @ 208V / 240V Rating
-

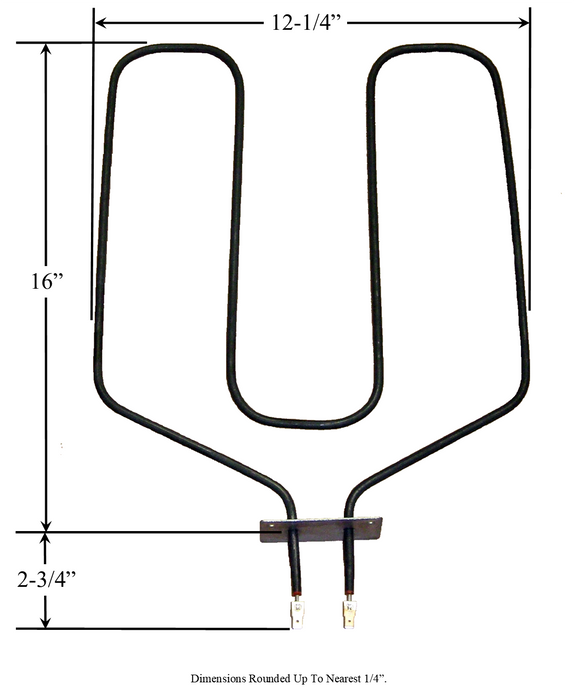

Approximate Overall Size: 12-1/4" Width x 15-7/8" Back Of Element To Mounting Brackets x 2-3/4" (±1/8") Insert From Bracket To Terminal Ends x 1-1/2" Center-to-Center Terminal Width

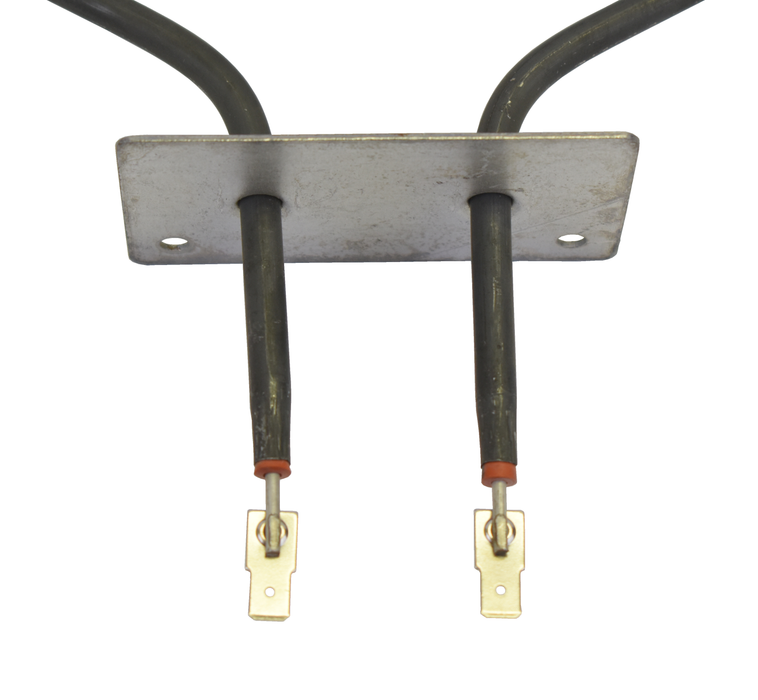

- Male Quick-Connect Push-In Terminals
-
Used in various models of General Electric, Hotpoint, RCA, Whirlpool, Roper, Kenmore/Sears, and other Ranges And/Or Ovens: NOTE - Not all compatible model numbers are listed. If your specific range or oven model number is not listed, use part numbers and dimensions to determine if this broiling element will fit your appliance.
HINT: Use CTRL+F to use the search function for your Oven/Range Model number.
- Used In GE Oven/Range Model Numbers:
JB940AY2 , JB940AY3 , JB940AY4 ,JB940BY2 , JB940BY3 , JB940BY4 , JB940WY2 ,JB940WY3 , JB940WY4 , JB960AY2 , JB960AY3 ,JB960AY4 , JB960BY2 , JB960BY3 , JB960BY4 ,JB960WY2 , JB960WY3 , JB960WY4 , JBC27BY2 ,JBC27BY3 , JBP19BB1 , JBP19BY2 , JBP19BY3 ,JBP19BY4 , JBP21BB1 , JBP21BY2 , JBP21BY3 ,JBP21BY4 , JBP21WA1 , JBP21WB1 , JBP22DA1 ,JBP24BY2 , JBP24BY3 , JBP24BY4 , JBP24DY2 ,JBP24DY3 , JBP24DY4 , JBP25WY2 , JBP25WY3 ,JBP25WY4 , JBP26AY2 , JBP26AY3 , JBP26AY4 ,JBP26AY5 , JBP26AY6 , JBP26AY7 , JBP26BY2 ,JBP26BY3 , JBP26BY4 , JBP26BY5 , JBP26BY6 ,JBP26BY7 , JBP26WY2 , JBP26WY3 , JBP26WY4 ,JBP26WY5 , JBP26WY6 , JBP26WY7 , JBP30AA2 ,JBP30AA3 , JBP30AA4 , JBP30BA2 , JBP30BA3 ,JBP30BA4 , JBP30WA2 , JBP30WA3 , JBP30WA4 ,JBP46WIY2 , JBP46WIY3 , JBP46WIY4 , JBP48AA2 ,JBP48AA3 , JBP48AA4 , JBP48BA1 , JBP48BA2 ,JBP48BA3 , JBP48WA2 , JBP48WA3 , JBP48WA4 ,JBP60BB1WH , JBP60BY2WH , JBP60BY3WH ,JBP60BY4WH , JBP60BY5WH , JBP61DA1WH ,JBP61DA2WH , JBP61DB1WH , JBP61WB1WW ,JBP61WB2WW , JBP63BB1AD , JBP63BB1WH ,JBP63BY2AD , JBP63BY2WH , JBP63BY3AD ,JBP63BY3WH , JBP63BY4AD , JBP63BY4WH ,JBP63BY5AD , JBP63BY5WH , JBP66BY2AD ,JBP66BY2WH , JBP66BY3AD , JBP66BY3WH ,JBP66BY4AD , JBP66BY4WH , JBP66BY5AD ,JBP66BY5WH , JBP66DY2AD , JBP66DY2WH ,JBP66DY3AD , JBP66DY3WH , JBP66DY4AD ,JBP66DY4WH , JBP66DY5AD , JBP66DY5WH ,JBP66WY2 , JBP66WY3 , JBP66WY4 , JBP66WY5 ,JBP75AY2 , JBP75AY3 , JBP75AY4 , JBP75AY5 ,JBP75WY2 , JBP75WY3 , JBP75WY4 , JBP75WY5 ,JBP76WIY2 , JBP76WIY3 , JBP76WIY4 , JBP76WIY5 ,JBP78AY2 , JBP78AY3 , JBP78AY4 , JBP78AY5 ,JBP78BY2 , JBP78BY3 , JBP78BY4 , JBP78BY5 ,JBP78WY2 , JBP78WY3 , JBP78WY4 , JBP78WY5 ,JBP79AY2 , JBP79AY3 , JBP79AY4 , JBP79BY2 ,JBP79BY3 , JBP79BY4 , JBP79WY2 , JBP79WY3 ,JBP79WY4 , JBS02BB1 , JBS03GV5 , JBS03GV6 ,JBS03V4 , JBS03V5 , JBS07PIY2 , JBS07PIY3 , JBS07V5, JBS07V6 , JBS23BB1 , JBS26W4 , JBS26W5 ,JBS27AY2 , JBS27AY3 , JBS27BY2 , JBS27BY3 ,JBS27WY2 , JBS27WY3 , JBS61BB1AD , JBS61BB1WH ,JBS61WB1WW , MB536BB1 , MB757WB1 , RB525GV4 ,RB525GV5 , RB525V3 , RB525V4 , RB526V4 , RB526V5 ,RB526WW3 , RB526WW4 , RB530WB1 , RB533GW4 ,RB533GW5 , RB536GW4 , RB536GW5 , RB585BB1AD ,RB585BB1WH , RB585WB1WW , RB632GW3 , RB632GW4, RB753BB1 , RB757BB1 , RB757WB1 , RB787BB1BB ,RB787WB1WW , RB797AB1AA , RB797BB1BB ,RB797WB1WW
Therm Coil MFG. Co. is not affiliated with General Electric Corporation, Whirlpool Corporation, Sears, or any other listed manufacturers or their affiliates.
